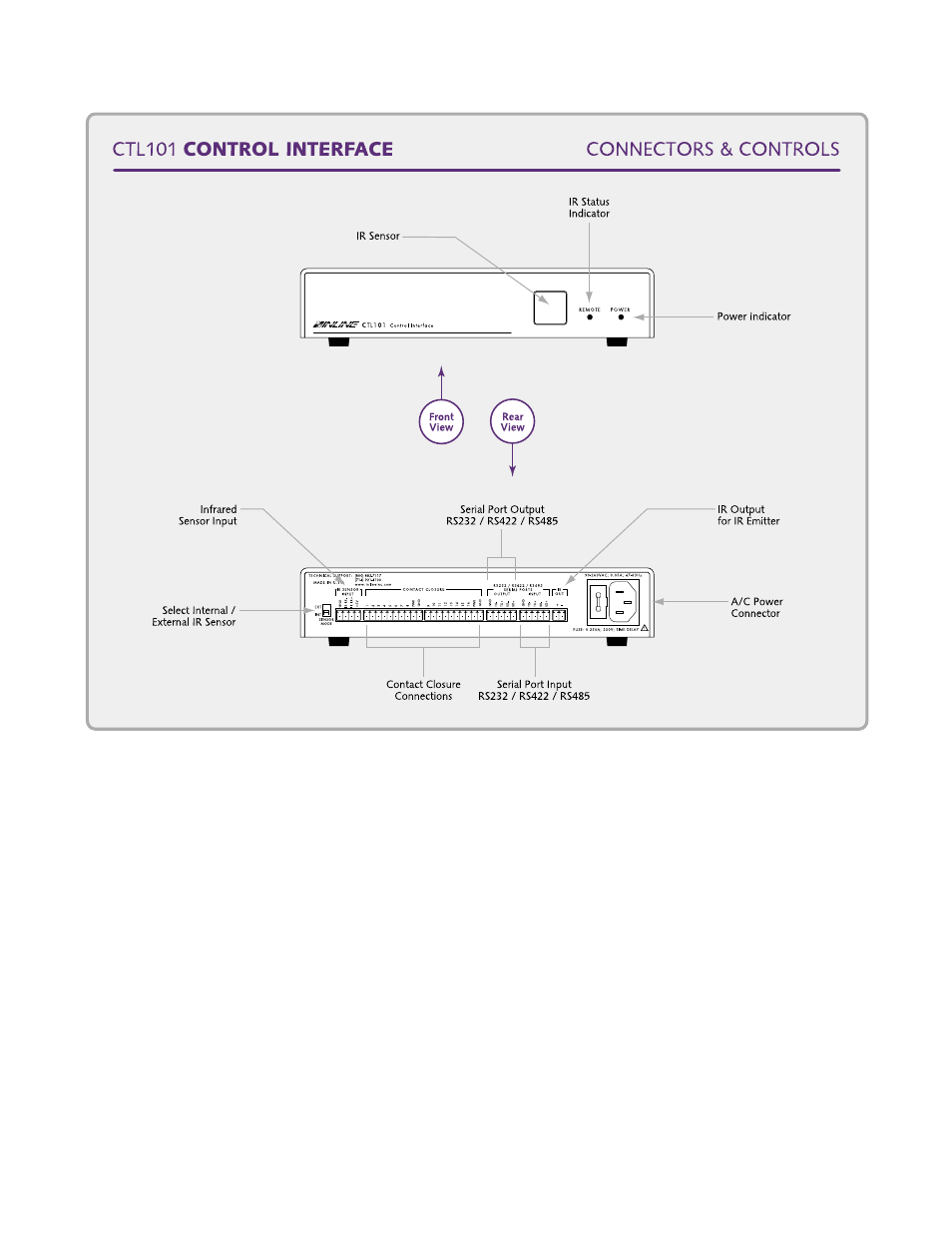

CTL101 Operation Manual - V1.3 03/22/02

DIPSWITCH SETTINGS

On the bottom of the unit are two sets of dipswitches. Dipswitch Bank #1 is used to configure
the serial ports to operate as an RS-232, or RS-422 / RS-485 physical interface. Dipswitch Bank
#2 is used to isolate the contact closure ports and to configure the CTL101 to the default baud
rate (9600). The factory default and specialized dipswitch settings are listed below:

Factory Default Settings:

Dipswitch Bank #1:

Dipswitches 1, 2, 3, 4, 5 & 6:

All in "0" position

Input Port Serial Mode:

RS-232, no termination

Output Port Serial Mode:

RS-232, no termination
