Cable Cubby 200 • Reference Information
12
Top Plate Dimensions
If you choose not to use the Extron metal routing template, the paper cut-out template will
help you properly prepare the mounting surface (see
to scale and is
for reference only. For full size paper templates, visit the Extron website
) or call the Extron S3 Sales and Technical Support Hotline.

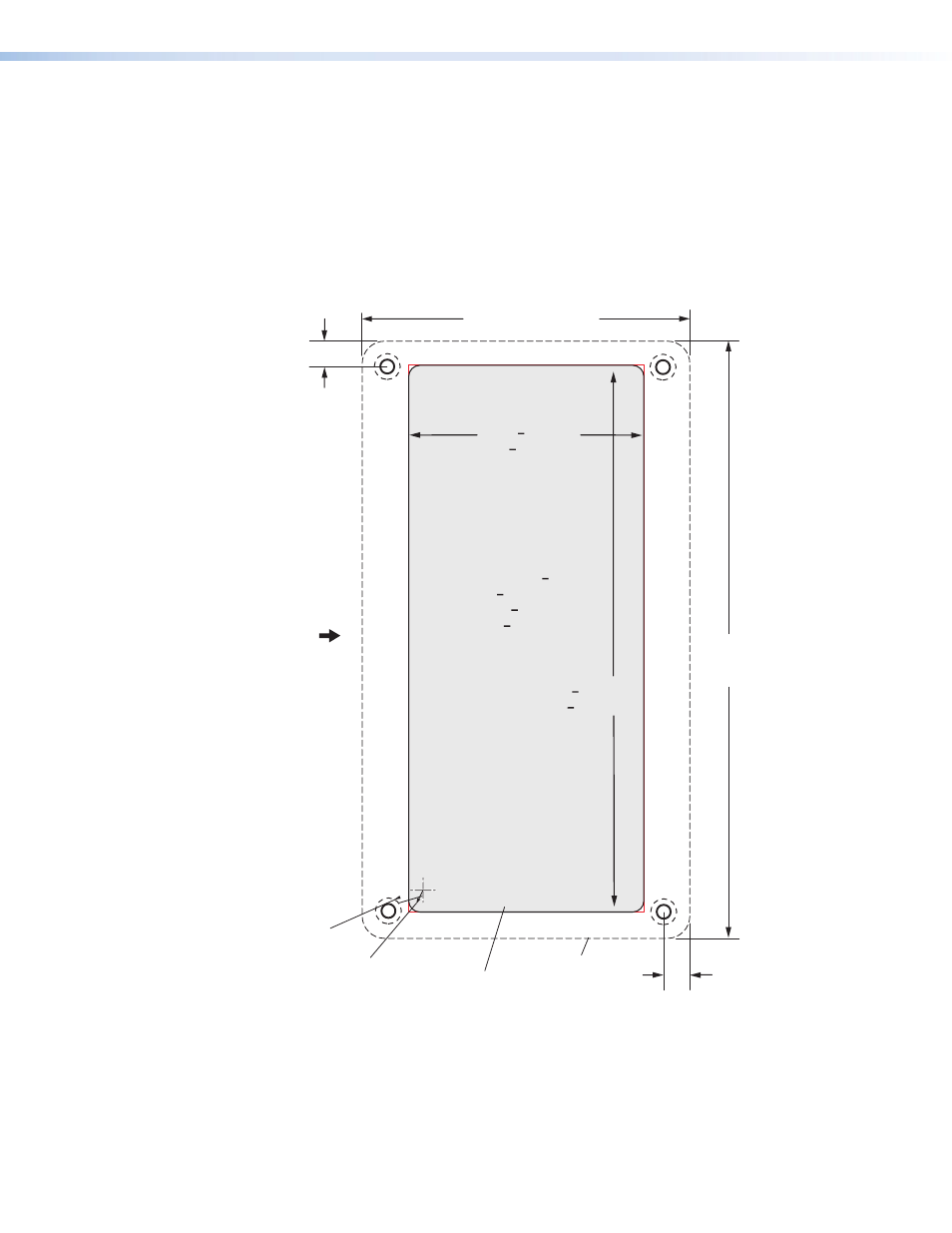

Cut-Out Template for
Cable Cubby 200
TEMPLATE IS
NOT FULL SIZE.
User Access
Top Panel
Cut surface material
out along this line.
4.394" (11.16 cm)
8.000"
(20.32 cm)
Cut-Out Radius:
0.25"
(0.6 cm)
0.5"
(1.3 cm)
SURFACE CUT-OUT
AREA =
3.155 0.0325"
(8.01 0.083 cm) x
7.312 0.0325"
(18.57 0.083 cm)
3.155 0.0325"
(8.01 0.083 cm)
+
+
+
+
7.312 0.0325"
(18.57 0.083 cm)
+
+
+
+
.350" (0.89 cm)
.350"
(1.90 cm)
Figure 4.
