System 5000™ Software
5
The System 5000™ takes a new approach to data logging. During setup, measurement parameters
are assigned logical names (labels) such as AirTemp or Battery. These names are referred to as Tasks
in the System 5000™. Each Task can be assigned an input or source, such as an SDI-12 sensor or an
A/D channel, as well as one or more output or destination, such as a log file or GOES transmission.
The value retrieved from the input becomes the Task’s primary value and will be passed along to any
outputs assigned to that Task. In this manner, inputs and their values can be easily identified by their
Task names in both simple and more advanced setups.
All setups and configurations can be
performed using the built-in touch screen
display. After the System 5000™ has fully
booted, touch anywhere on the screen to turn

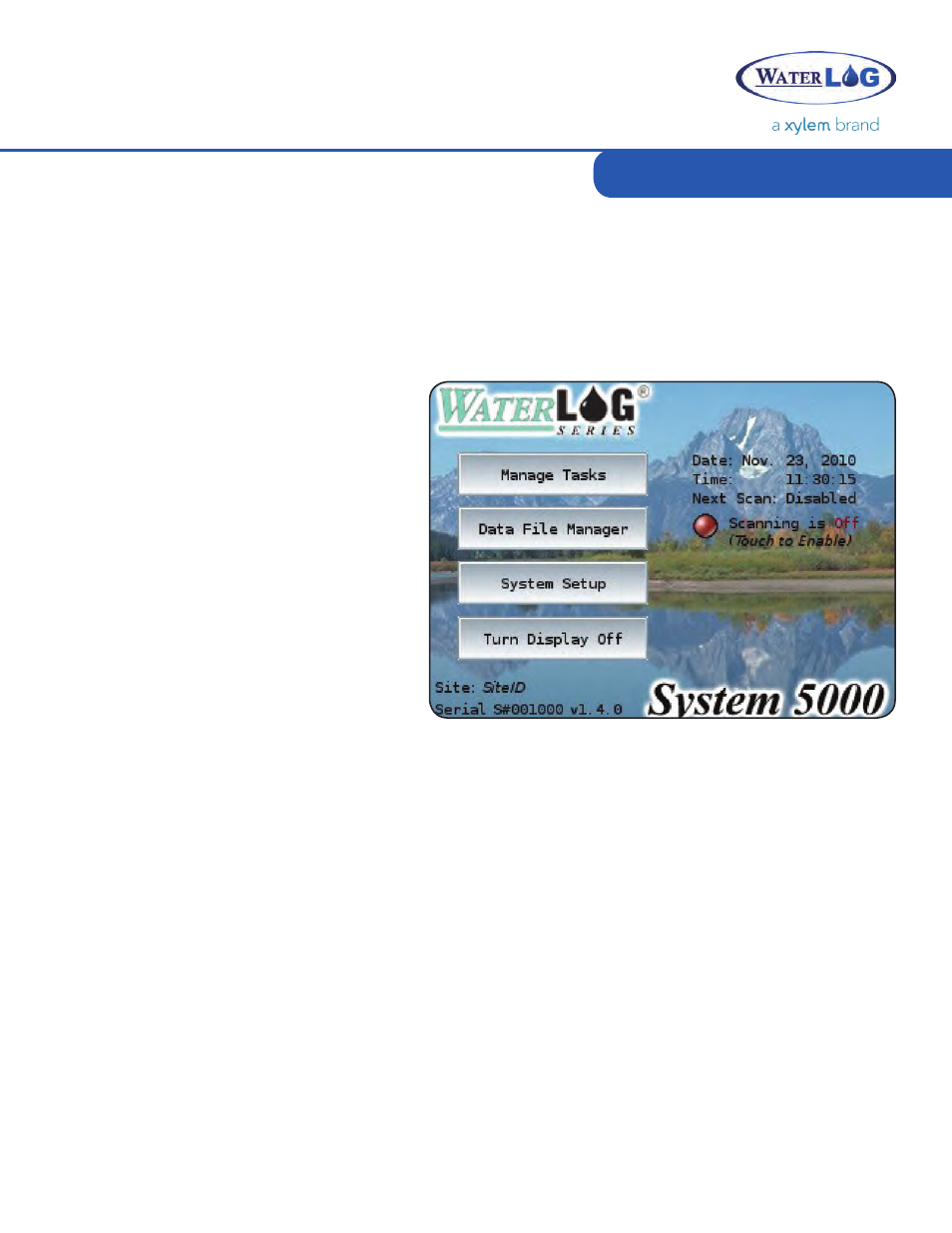

the display on. The screen to the right will
appear.
The Main Menu
The Manage Tasks section is used
to set up and maintain the System
5000
™
’s Inputs and Outputs (Tasks).
Manage Tasks
The Data File Manager section is used to view, copy, rename, and delete data files on the System
5000
™
or an attached USB thumb drive or SD memory card. System configuration saving/
loading, Firmware updating, and other options are also performed here.
Data File Manager
The System Setup section is used to manage general system options and system-wide settings
such as the Site ID, date, and time.
System Setup
The Turn Display Off button turns off the touch screen. To turn the display on again, simply touch
anywhere on the screen.
Turn Display Off
Enable / Disable Scanning
The Scanning indicator shows if scanning is enabled or disabled. The indicator is green when
scanning is enabled and red when disabled. Thescanning status (running of Inputs and Outputs)
can be toggled by pressing this button.
