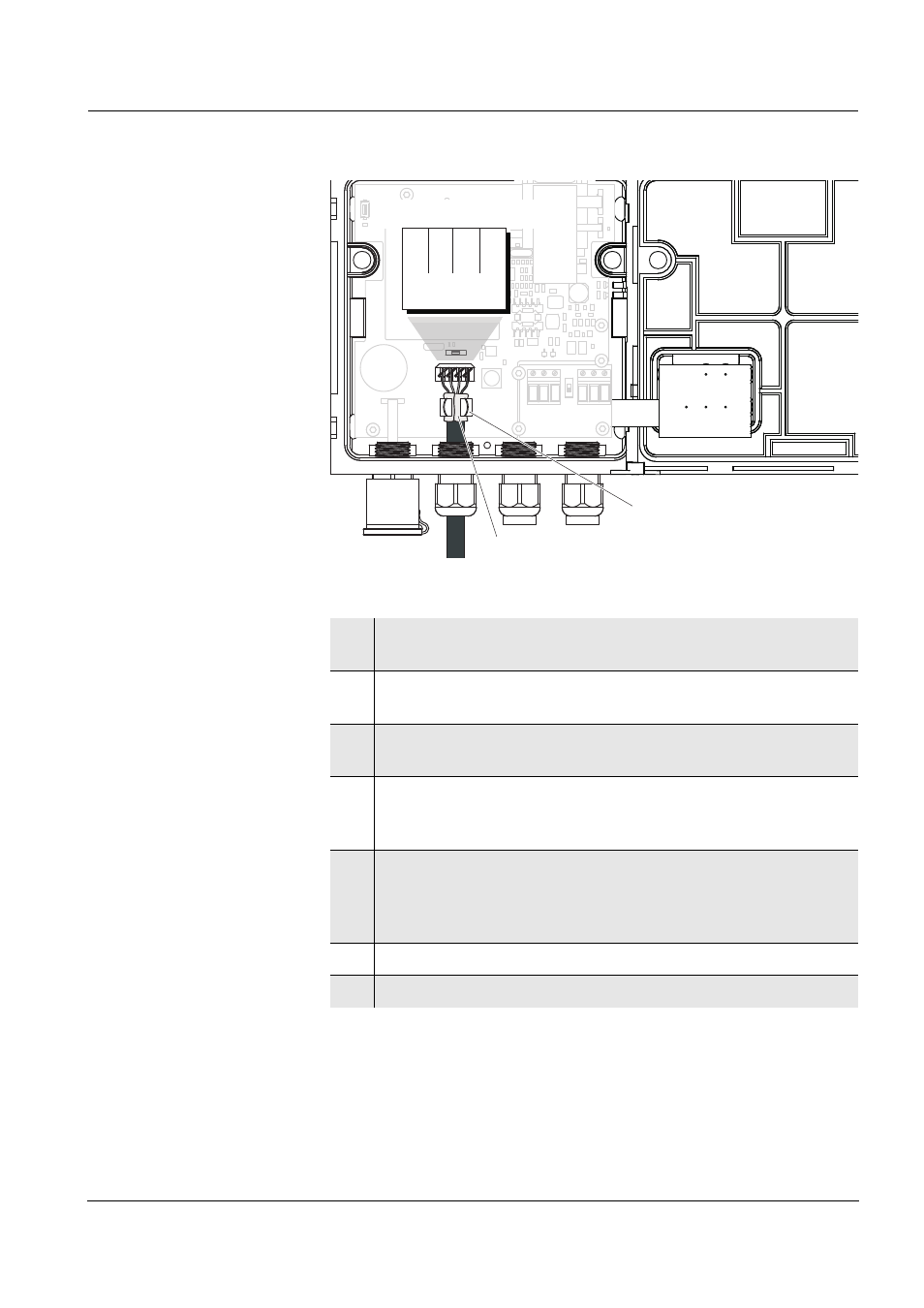

Fig. 2-4 Ethernet connection via terminal strip
5 Strip the Ethernet cable for approx. 2 cm and untwist the Rx+,
Rx-, Tx+ and Tx wires.
6 Carefully slash the cable shield (foil + netting) lengthwise and
put it backwards over the cable sheath (pos. 3 in Fig. 2-4).
7 Feed the Ethernet cable through the cable gland into the mod-
ule housing.
8 Where the cable shield was put backwards, press the Ethernet
cable into the shielding terminal (pos. 4 in Fig. 2-4). The shield-
ing terminal must contact the cable shield across a wide area.
9 Connect the Rx+, Rx-, Tx+ and Tx- wires to the LSA terminal
strip with the aid of an LSA punch down tool. Make sure that
the cable assignment agrees with the specification on the ter-
minal label under the terminal strip.
10 Fasten the cap nut of the screwed cable gland.
11 Close the module.
LSA terminal strip
3
4
X10 X9 X8 X7
Rx- Rx+ Tx- Tx+
SHIELD CLAMP
ENTHERNET CABLE
