Installing the interface in the IQ S ENSOR N ET IQ S ENSOR N ET Field bus linking
6 ba76148e01 06/2013

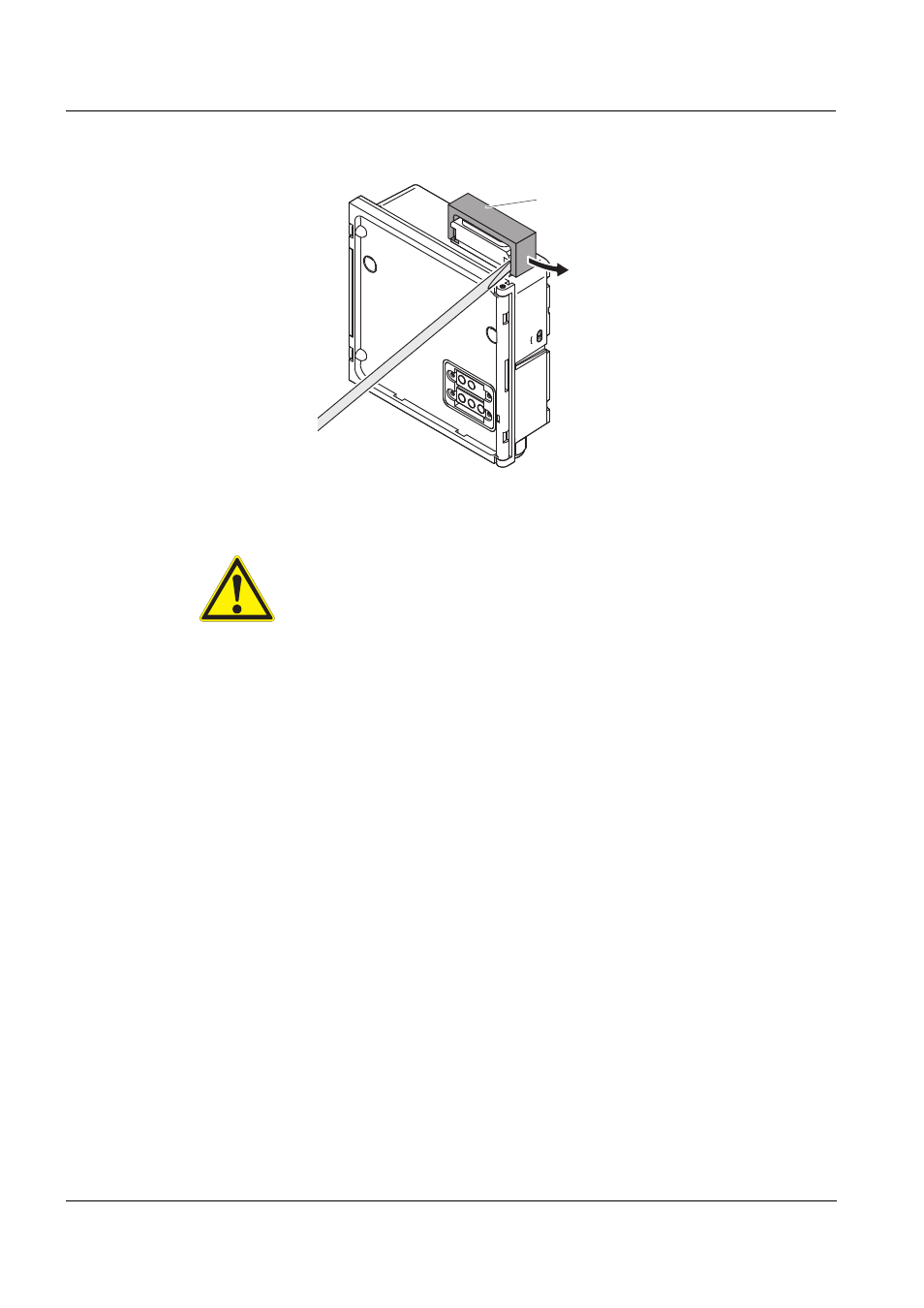

Fig. 2-1 Removing the safety bracket
Caution
If water gets into the enclosure of a module with internal power
supply, there is danger of an electric shock.
If water gets into the enclosure of an MIQ module, there is a risk
of short circuits.
To prevent the enclosures of the IQ S
ENSOR N ET from being pene-
trated by water the following must be observed:

Follow the safety instructions of the IQ S ENSOR N ET system op-
erating manual.
 Use connectors recommended by YSI only.
 When the connector is removed, the connection socket of the
IQ S
ENSOR N ET must be closed with the blind plug and secured
with the safety bracket.
1 Safety bracket
Po we r !
OK
1
