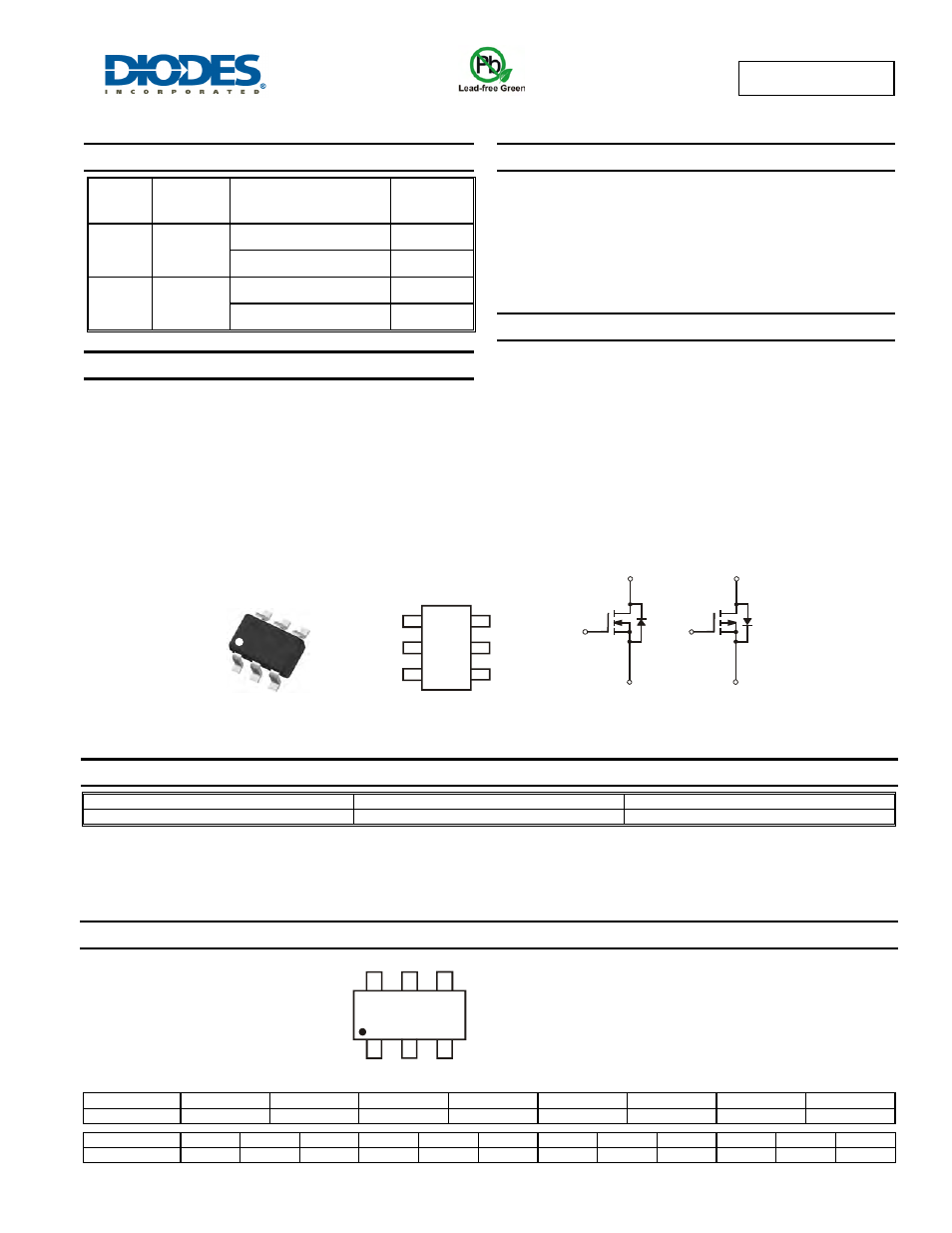

Diodes DMG6602SVT User Manual
Product summary, Description and applications, Features and benefits

DMG6602SVT
Document number: DS35106 Rev. 6 - 2
1 of 10
May 2012
© Diodes Incorporated
DMG6602SVT
ADVAN
CE I
N
F
O
RM
ATI
O
N
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25°C
Q1 30V
60m
Ω @ V
GS
= 10V
3.4A
100m
Ω @ V
GS
= 4.5V
2.7A
Q2 -30V
95m
Ω @ V
GS
= -10V
-2.8A
140m
Ω @ V
GS
= -4.5V
-2.3A
Description and Applications
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
• Backlighting
• DC-DC
Converters
•
Power management functions
Features and Benefits
• Low
On-Resistance
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Totally Lead-Free Finish; RoHS compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
TSOT26
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals Connections: See Diagram
•
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.013 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DMG6602SVT-7
TSOT26
3000 / Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
3. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2010
2011
2012
2013
2014
2015
2016
2017
Code
X Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
TSOT26
Top View
Top View
1
2
3
6
5
4
D1
S1
D2
G1
S2
G2
N-Channel
P-Channel
D1
S1
G1
Q1
D2
S2
G2
Q2
66C = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: X = 2010)
M = Month (ex: 9 = September)
66C
YM
