DMG1016UDW
Document number: DS31860 Rev. 6 - 2
8 of 9
www.diodes.com
January 2014
© Diodes Incorporated
DMG1016UDW
NEW PROD
UC
T

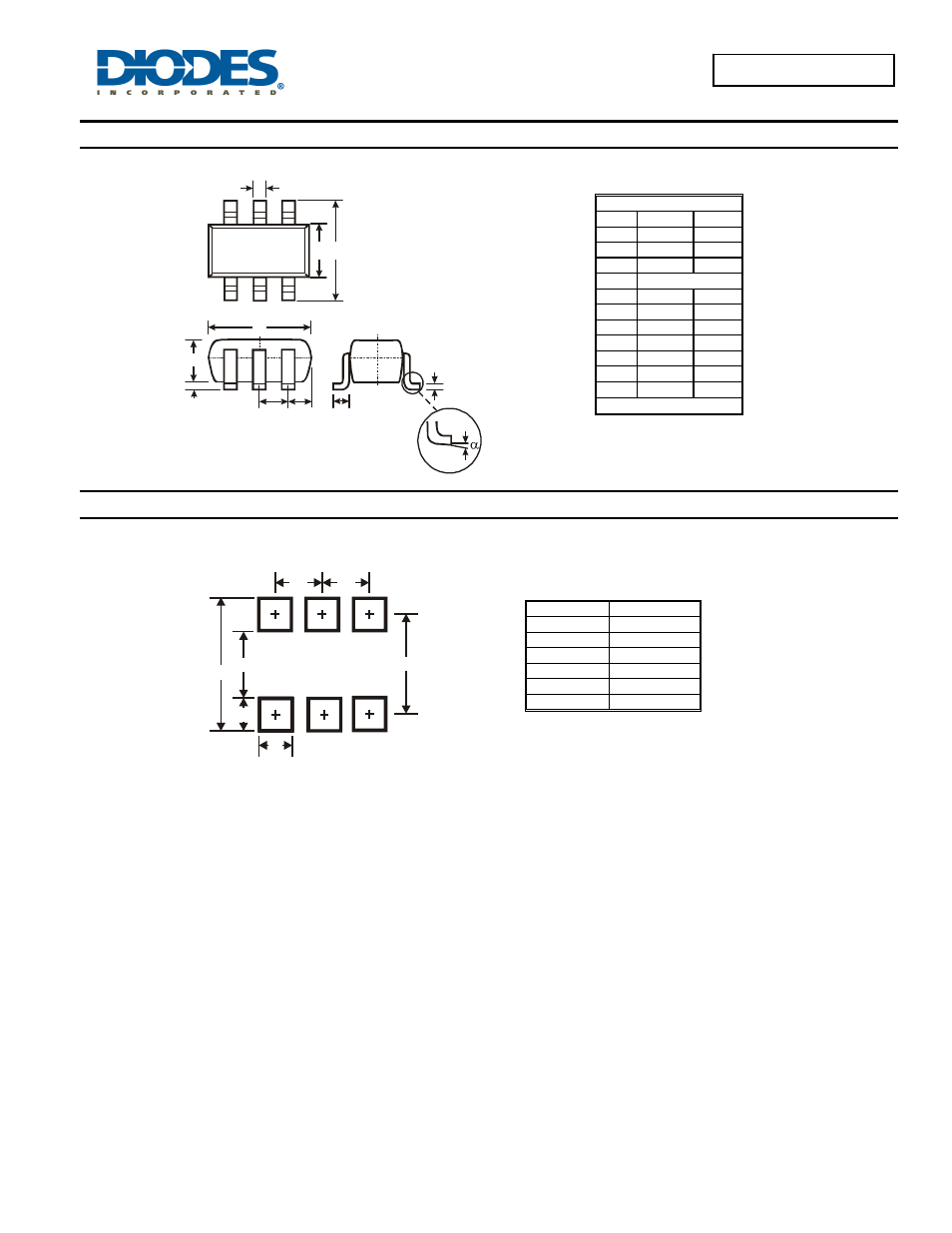

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
SOT363
Dim Min Max
A 0.10 0.30
B 1.15 1.35
C 2.00 2.20
D 0.65 Typ
F 0.40 0.45
H 1.80 2.20
J 0 0.10
K 0.90 1.00
L 0.25 0.40
M 0.10 0.22
α 0° 8°
All Dimensions in mm
Dimensions Value (in mm)
Z 2.5
G 1.3
X 0.42
Y 0.6
C1 1.9
C2 0.65
A
M
J
L D
B C
H
K
F
X
Z
Y
C1
C2 C2
G
