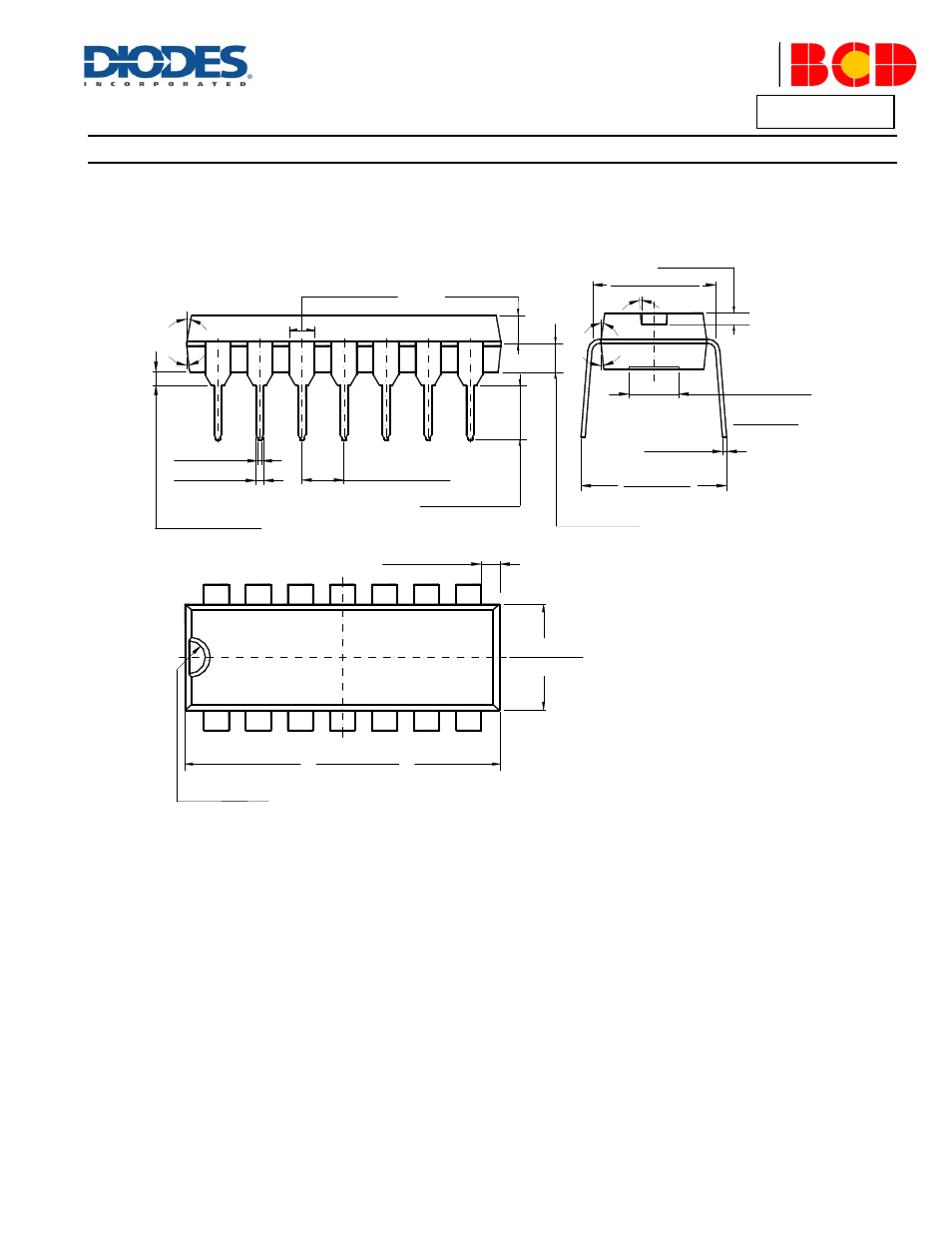

Package Outline Dimensions

(All dimensions in mm(inch).)

(1) Package Type: DIP-14

4°

0.254(0.010)

5°

10°

4°

18.800(0.740)
19.200(0.756)

0.360(0.014)
0.560(0.022)

2.540(0.100)TYP

R1.000(0.039)

0.130(0.005)MIN

7.620(0.300)TYP

0.700(0.028)

Φ3.000(0.118)

Depth

0.100(0.004)
0.200(0.008)

8.200(0.323)
9.400(0.370)

0.204(0.008)
0.360(0.014)

1.600(0.063)
1.800(0.071)

1.524(0.060) TYP

3.000(0.118)
3.600(0.142)

0.510(0.020)MIN

6.200(0.244)
6.600(0.260)

Note: Eject hole, oriented hole and mold mark is optional.
