AS324/324A
Document number: DS36827 Rev. 2 - 2
12 of 14
www.diodes.com
January 2014
© Diodes Incorporated
AS324/324A
A Product Line of
Diodes Incorporated

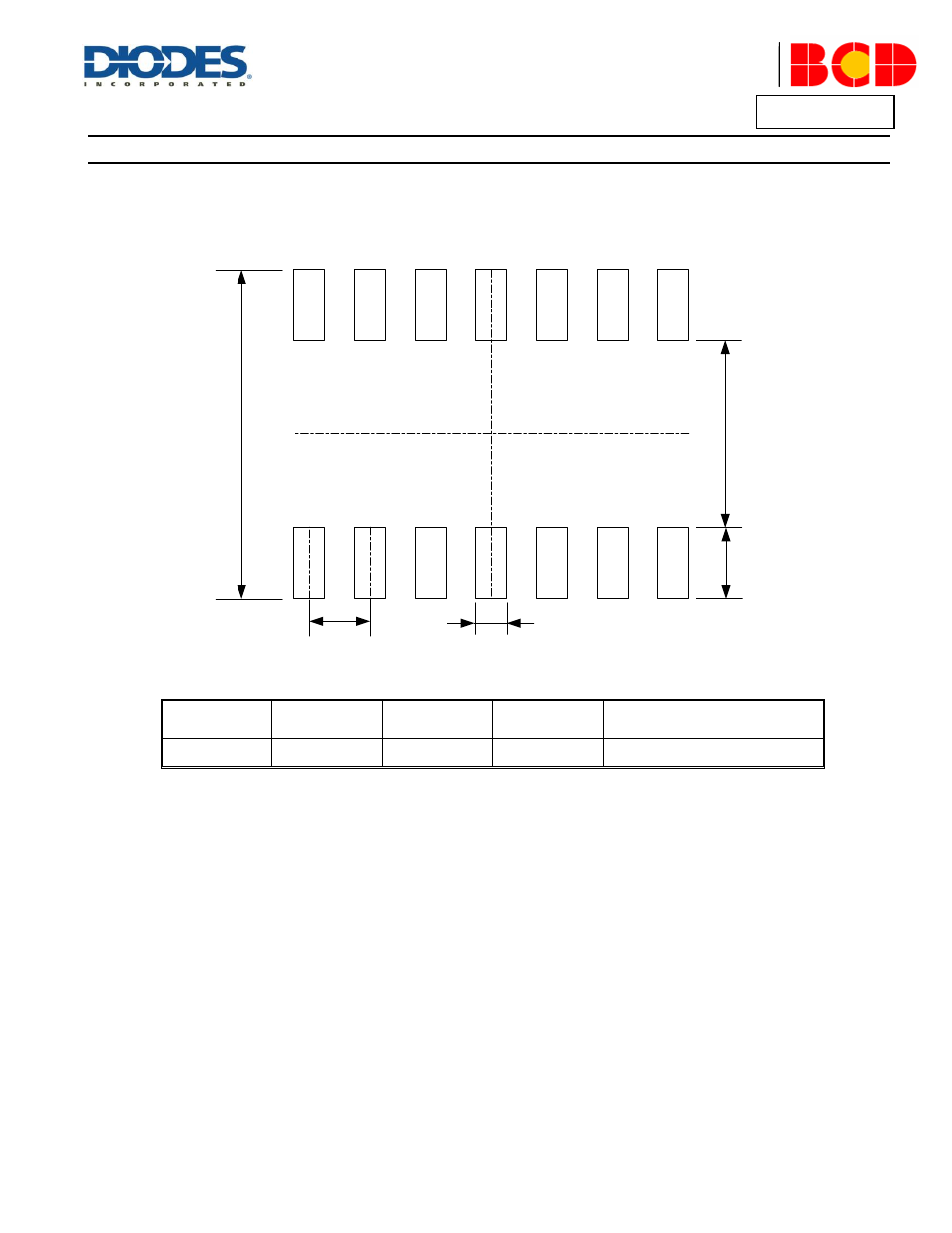

Suggested Pad Layout
(1) Package Type: SOIC-14
E X
Y
G Z
Dimensions
Z
(mm)/(inch)
G
(mm)/(inch)
X
(mm)/(inch)
Y
(mm)/(inch)
E
(mm)/(inch)
Value 6.900/0.272 3.900/0.154 0.650/0.026 1.500/0.059 1.270/0.050
