AS324/324A
Document number: DS36827 Rev. 2 - 2
13 of 14
www.diodes.com
January 2014
© Diodes Incorporated
AS324/324A
A Product Line of
Diodes Incorporated

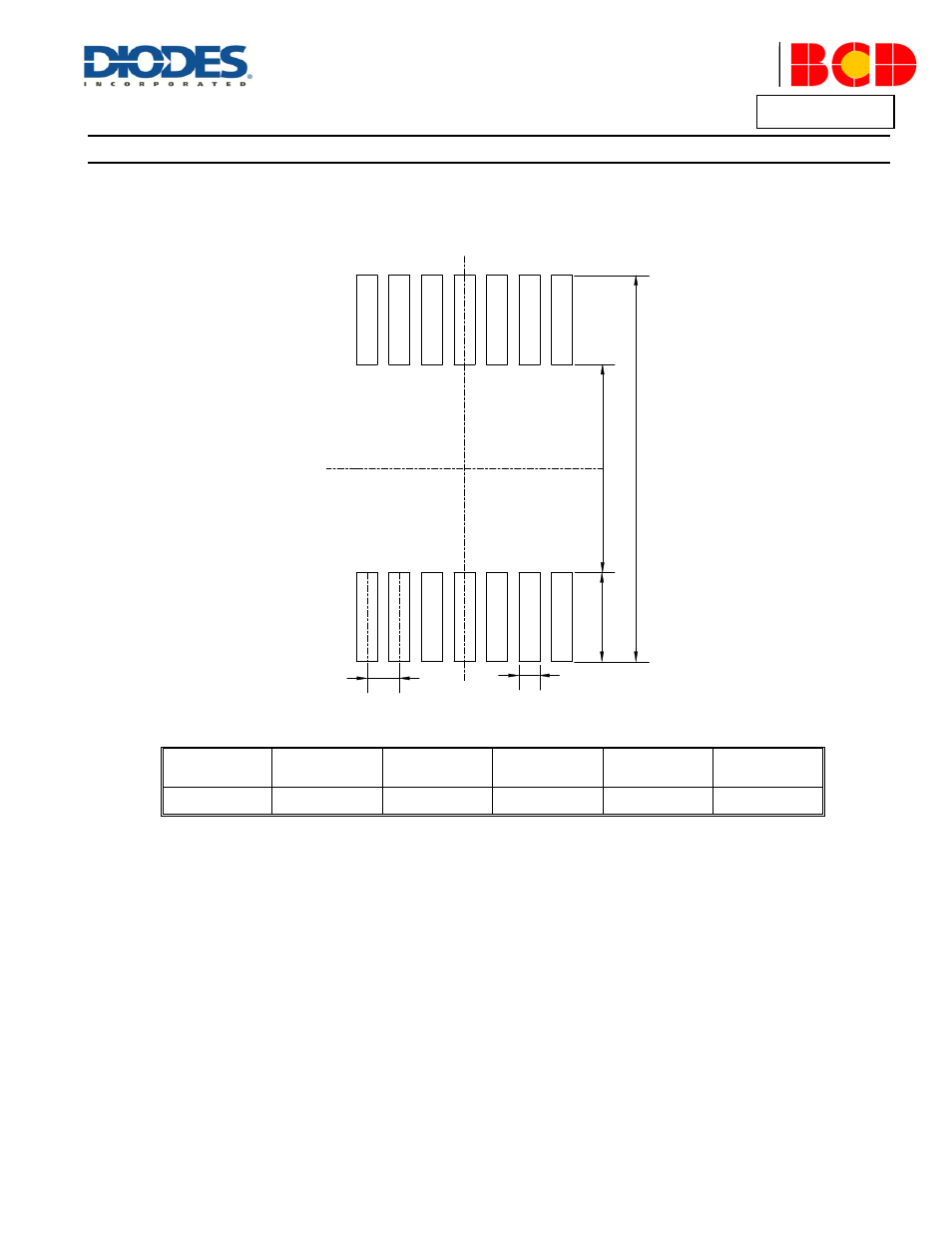

Suggested Pad Layout
(Cont.)
(2) Package Type: TSSOP-14
E X
Y
G Z
Dimensions
Z
(mm)/(inch)
G
(mm)/(inch)
X
(mm)/(inch)
Y
(mm)/(inch)
E
(mm)/(inch)
Value 7.720/0.304 4.160/0.164 0.420/0.017 1.780/0.070 0.650/0.026
