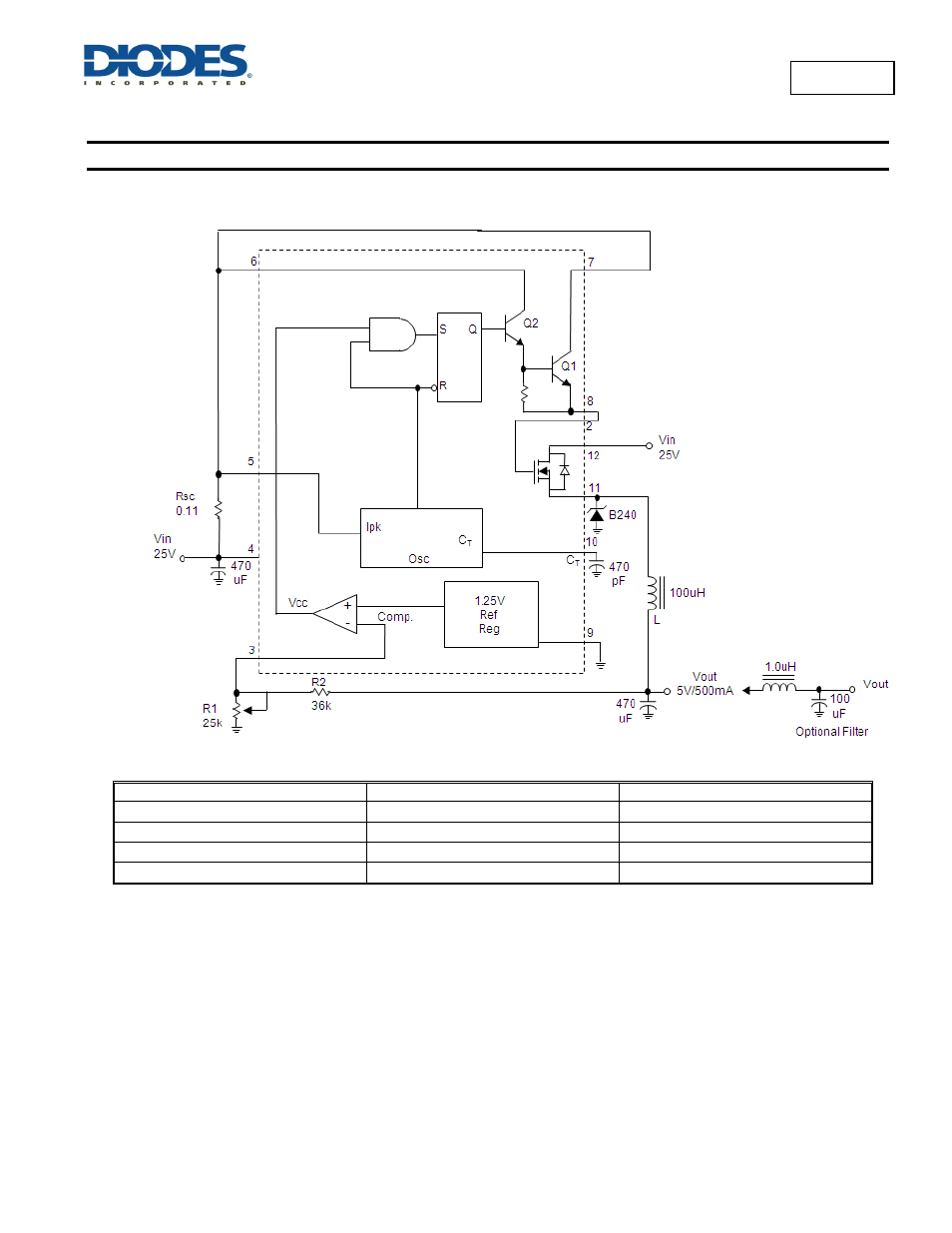

Typical Application Circuits
(cont.)
Buck Converter
Test Conditions Results
Line Regulation V
in
= 12V to 24V, I
O
= 500mA 20mV = ±0.2%
Load Regulation V
in
= 24V, I
O
= 50mA to 500mA 5mV = ±0.05%
Output Ripple V
in
= 24V, I
O
= 500mA 160mV
PP
Efficiency V
in
= 24V, I
O
= 500mA 82%
