AL8812
Document number: DS37099 Rev. 1 - 2
10 of 11
www.diodes.com
March 2014
© Diodes Incorporated
AL8812

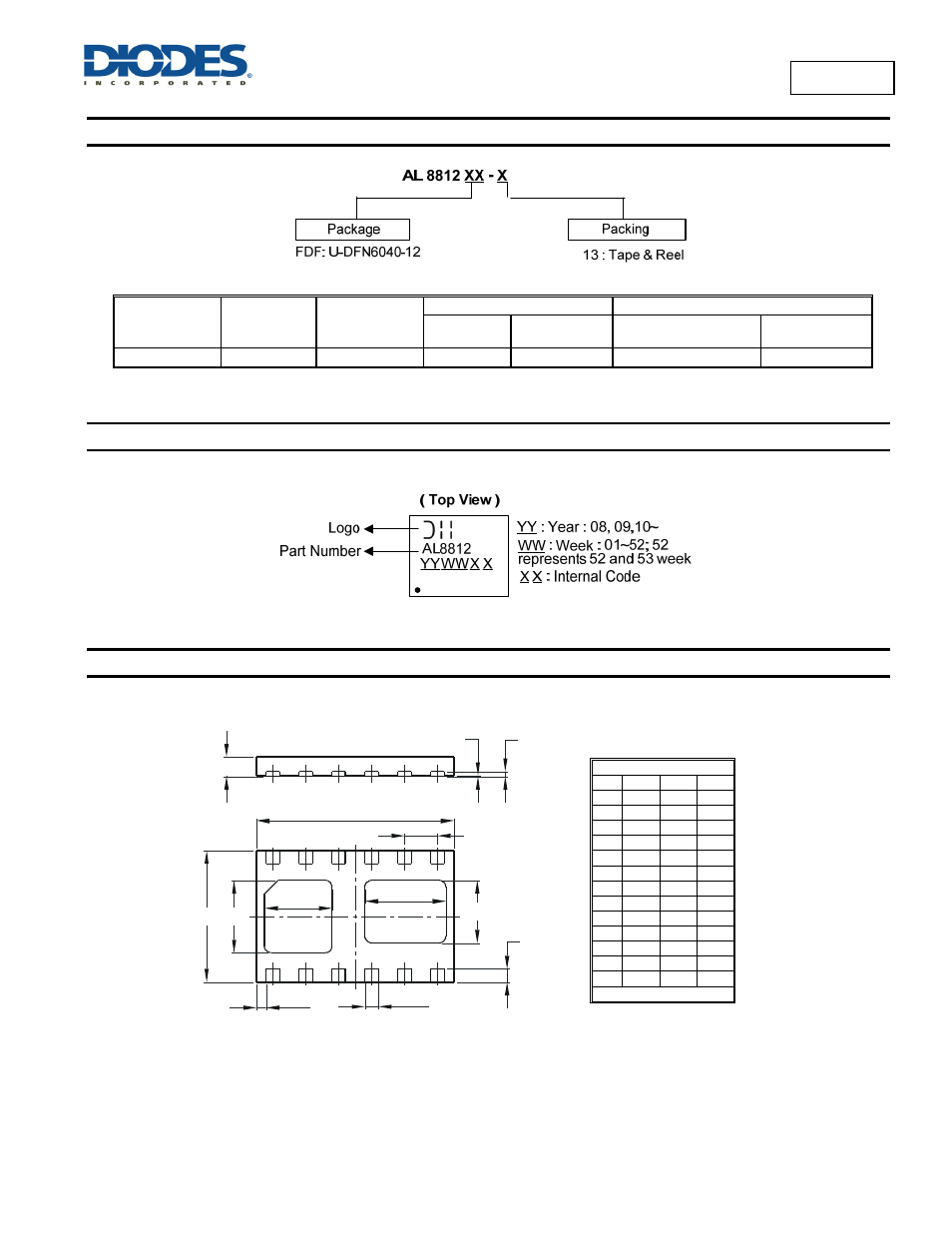

Ordering Information
Part Number Package Code Packaging
Tube 13” Tape and Reel
Quantity
Part Number
Suffix
Quantity
Part Number
Suffix
AL8812FDF-13 FDF U-DFN6040-12 NA NA 3000/Tape & Reel -13
Marking Information
(1) U-DFN6040-12
Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
U-DFN6040-12
Dim Min Max Typ
A 0.55 0.65 0.60
A1 0 0.05 0.02
A3 - - 0.15
b 0.35 0.45 0.40
D 5.95 6.05 6.00
D1 1.95 2.15 2.05
D2 2.35 2.55 2.45
e - - 1.00
E 3.95 4.05 4.00
E1 2.10 2.30 2.20
E2 1.80 2.00 1.90
L 0.35 0.45 0.40
Z - - 0.30
All Dimensions in mm
A3 A1
Seating Plane
D
E
e
L
b Z
A
D1
E1
D2
E2
