AL8812

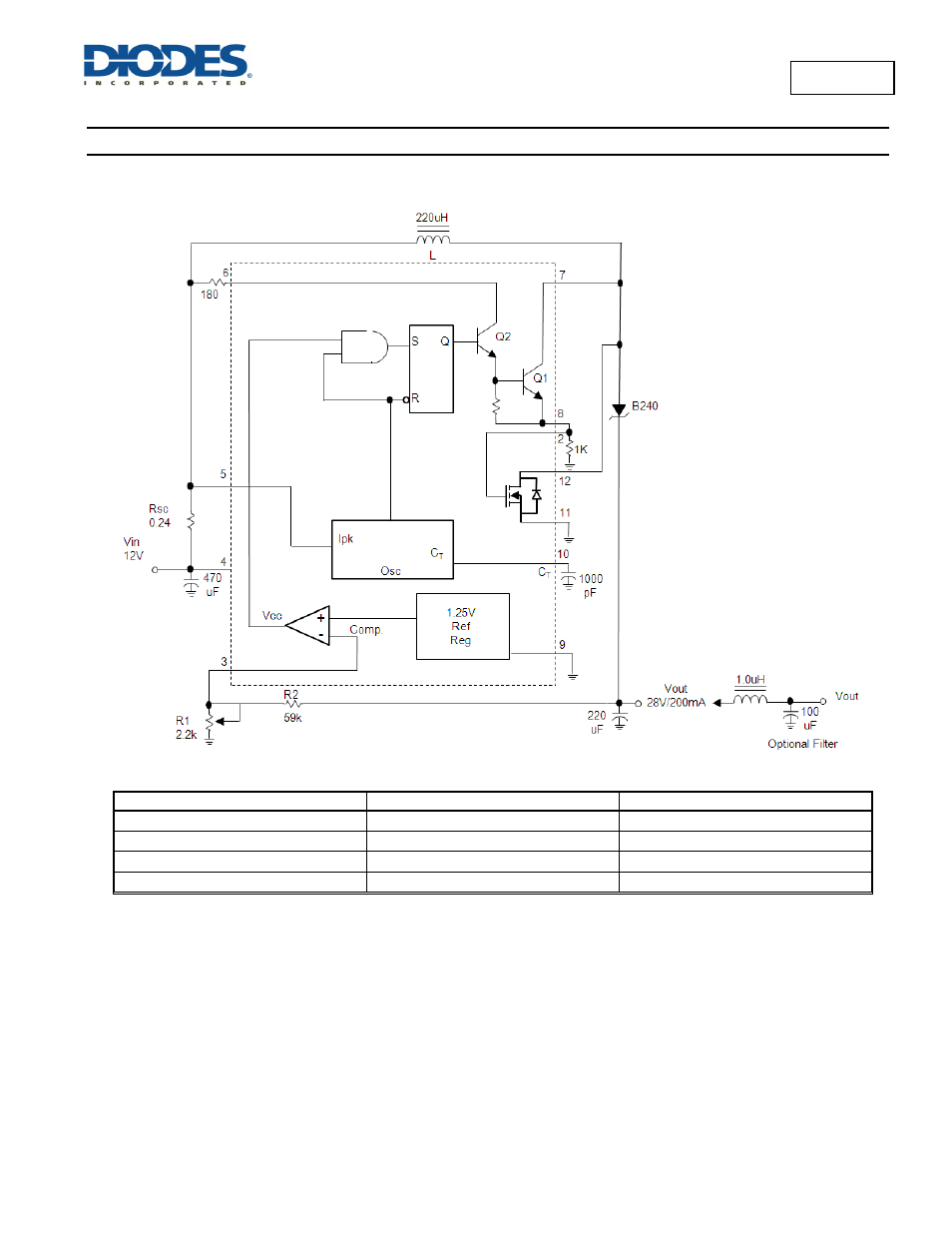

Typical Application Circuits
(cont.)
Boost Converter
Test Conditions Results
Line Regulation V
in
= 9V to 12V, I
O
= 200mA 20mV = ±0.035%
Load Regulation V
in
= 12V, I
O
= 50mA to 200mA 15mV = ±0.035%
Output Ripple V
in
= 12V, I
O
= 200mA 500mV
PP
Efficiency V
in
= 12V, I
O
= 200mA 80%
