300mA RF ULDO REGULATOR AP2210
Data Sheet
1
Jan. 2012 Rev. 1. 6 BCD Semiconductor Manufacturing Limited
General Description
The AP2210 is a 300mA ULDO regulator which pro-
vides very low noise, ultra low dropout voltage
(typically 250mV at 300mA), very low standby current
(1
µ A maximum) and excellent power supply ripple
rejection (PSRR 75dB at 100Hz) in battery powered
applications, such as handsets, PDAs and in noise sen-
sitive applications, such as RF electronics.
The AP2210 also features individual logic compatible
enable/shutdown control inputs, a low power shutdown
mode for extended battery life, over current protection,
over temperature protection, as well as reversed-bat-
tery protection.
The AP2210 has 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V,
5.0V and ADJ versions.
The AP2210 is available in space saving SOT-23-3 and
SOT-23-5 packages.
Features
· Up to 300mA Output Current
· Excellent ESR Stability
· Low Standby Current
· Low Dropout Voltage: V
DROP
=250mV at 300mA
· High Output Accuracy: ± 1%
· Good Ripple Rejection Ability: 75dB at 100Hz
and I
OUT
=100 µA
· Tight Load and Line Regulation
· Low Temperature Coefficient
· Over Current Protection
· Thermal Protection
· Reverse-battery Protection
· Logic-controlled Enable
Applications
· Cellular Phones
· Cordless Phones
· Wireless Communicators
· PDAs/Palmtops
· PC Mother Board
· Consumer Electronics

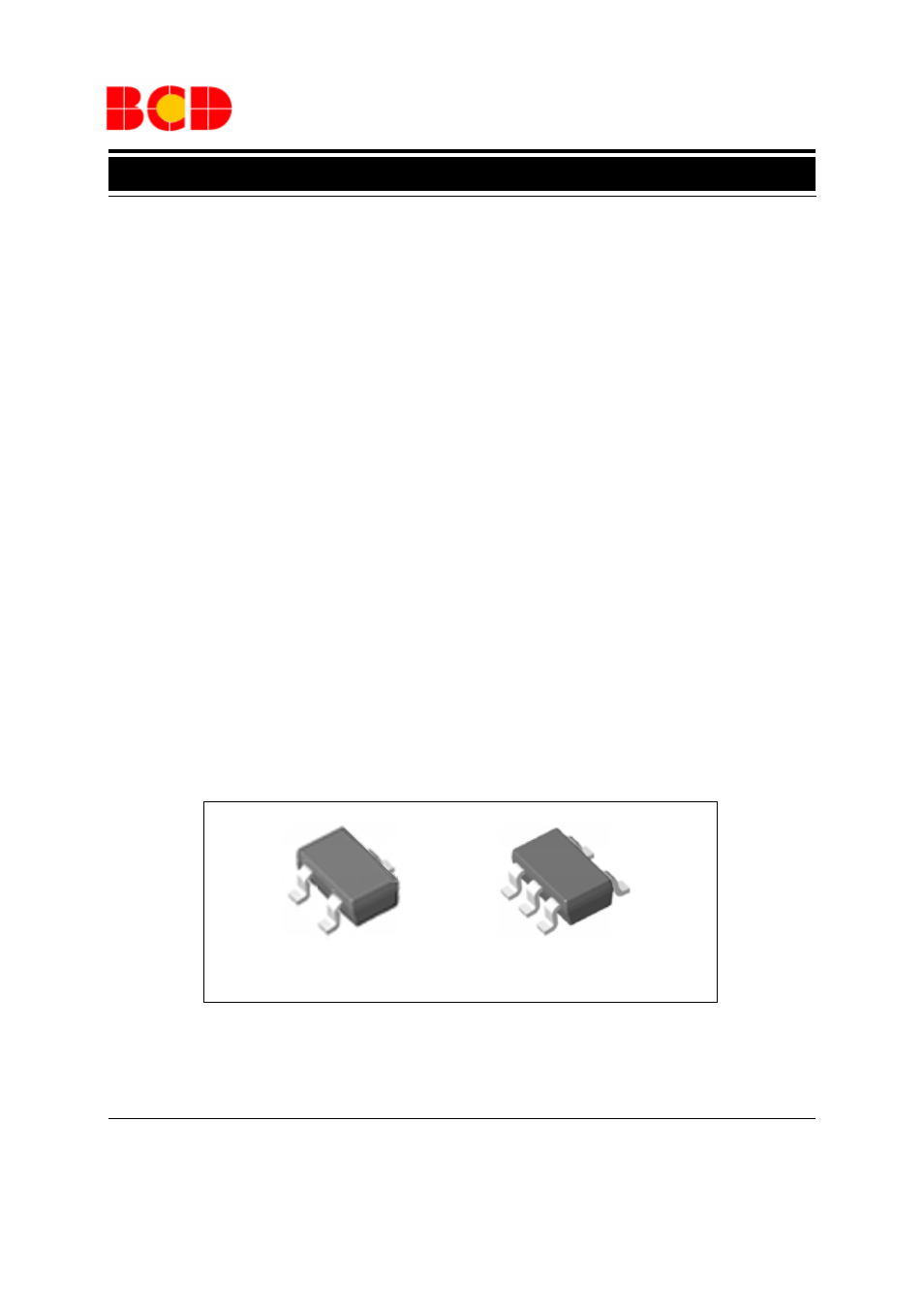

SOT-23-5
Figure 1. Package Types of AP2210
SOT-23-3
