AP3105NA/NV/NL/NR
Document number: DS36542 Rev. 1 - 2
2 of 13
www.diodes.com
September 2013
© Diodes Incorporated
AP3105NA/NV/NL/NR
A Product Line of
Diodes Incorporated

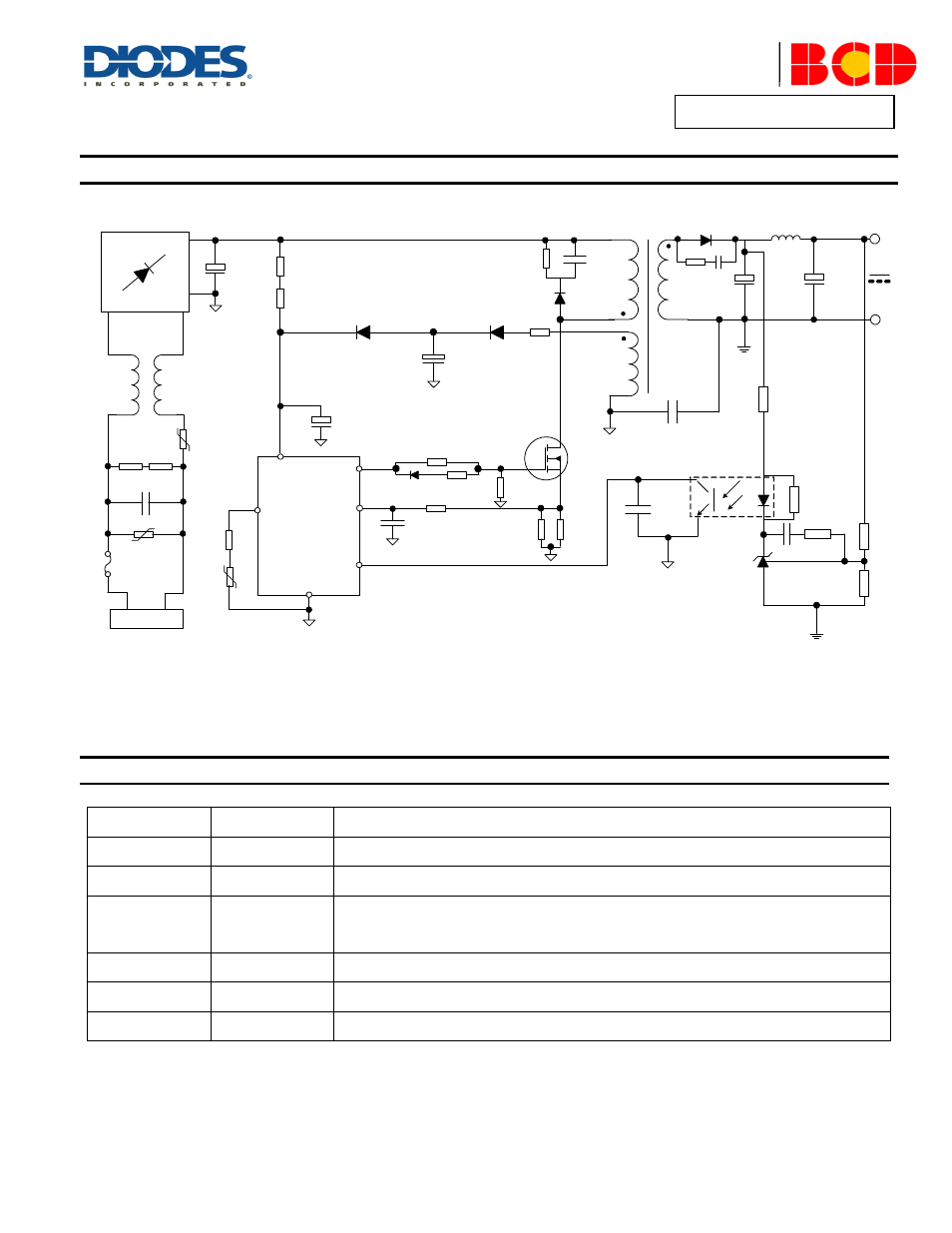

Typical Applications Circuit
~ ~
+
-
VCC
GND
GATE
FB
SENSE CTRL
~
AZ431
AP3105NA/
NV/ NL/NR
L2
T1
R13
C7
C6
C8
R14
R15
R16
R17
R18
C9
U2
C10
R12 R11
R10
R9
C5 R6
R19
C4
R5
R4 C2
C1
VR1
U1
NTC
R2 R3
F1
R7
C3
C11
NTC
R8
Pin Descriptions
Pin Number Pin Name Function
1 GND Signal ground. Current return for driver and control circuits
2 FB Feedback. Directly connected to the opto-coupler
3 CTRL
Latch trigger if this pin voltage drops below a threshold or over another threshold, leave CTRL pin
open if this function is not needed. Connecting a NTC thermistor to GND can achieve OTP
protection
4 SENSE Current Sense
5 VCC Supply voltage of driver and control circuits
6 GATE Gate driver output
