AP3105NA/NV/NL/NR

Document number: DS36542 Rev. 1 - 2

1 of 13

www.diodes.com

September 2013

© Diodes Incorporated

AP3105NA/NV/NL/NR

A Product Line of

Diodes Incorporated

COST EFFECTIVE GREEN PWM CONTROLLER

Description


The AP3105NA/NV/NL/NR is a low startup current, current mode
PWM controller with green-mode power-saving operation. The PWM
switching frequency at normal operation is set with 65kHz typically
and the dithering of frequency will also improve the EMI feature.
When the load decreases, the frequency will reduce and when at a
very low load, the IC will enter the ‘burst mode’ to minimize switching
loss.

About 20kHz frequency switching is to avoid the audible noise as well
as reducing the standby loss. The skip mode point can be adjusted
through the external resistor connected to the current sense resistor.

The AP3105NA/NV/NL/NR features a lot of functions such as the
Leading-Edge Blanking (LEB) of the current sensing, internal slope
compensation and several protection functions including cycle-by-
cycle current limit (OCP), VCC Over Voltage Protection (VOVP), OTP
and OLP protection. The versatile latch function can be set by the
customer through few components.

This IC is available in SOT-23-6 package.



Features

Very Low Start-up Current

Current Mode Control

Non-audible-noise Green-mode Control

Skip Mode Adjustable

Internal Slope Compensation

Soft Start During Startup Process

Frequency Fold Back for High Average Efficiency

Secondary Short Winding Protection with FOCP

Soft Switching for Reducing EMI

VCC Maintain Mode

Latch Function for OTP/OVP

Useful Pin Fault Protection:

SENSE Pin Floating
CTRL Pin Short to Ground
FB/Opto-coupler Open/Short

Comprehensive System Protection Feature:

VCC Over Voltage Protection (VOVP)
Over Load Protection (OLP)

Mini Size with Packages

Pin to Pin Compatible with AP3103



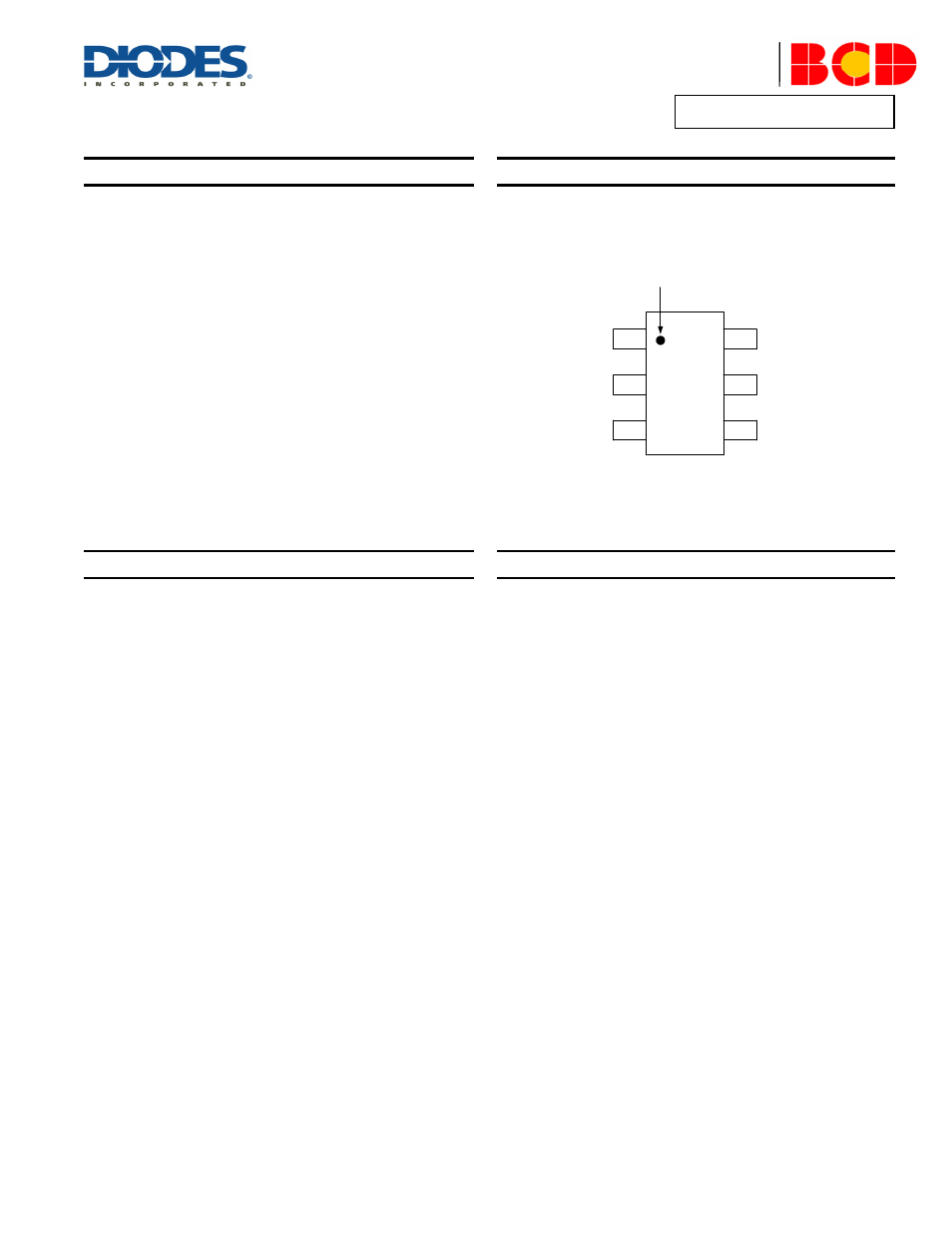

Pin Assignments

K Package
(SOT-23-6)





















Applications


Switching AC-DC Adapter/Charger

ATX/BTX Auxiliary Power

Set-top Box(STB) Power Supply

Open Frame Switching Power Supply



















1

2

3

4

5

Pin 1 Mark

6

GND

FB

CTRL

GATE

VCC

SENSE
