AP3105NA/NV/NL/NR
A Product Line of
Diodes Incorporated

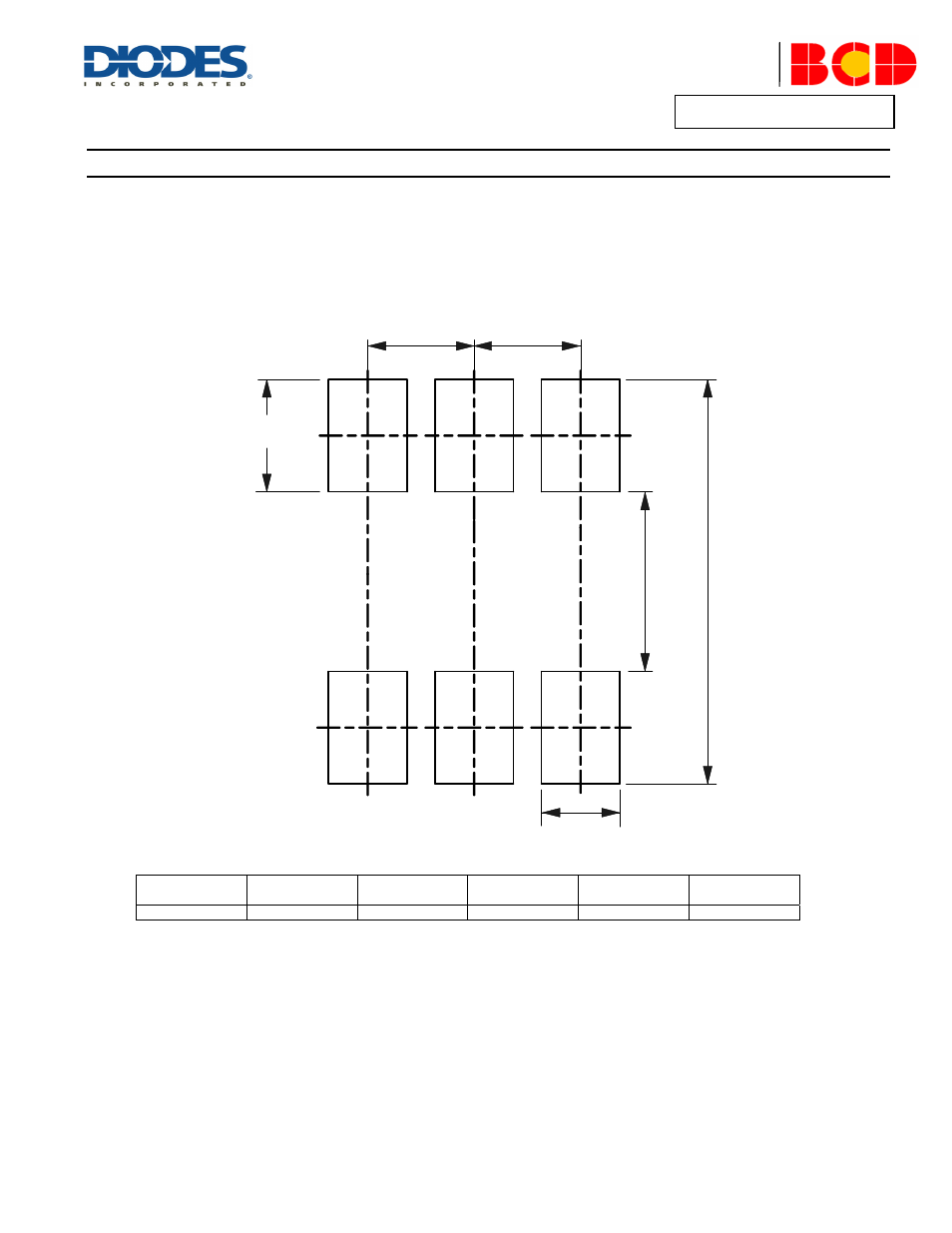

Suggested Pad Layout
SOT-23-6
E E
G Z
Y
X
Dimensions
Z
(mm)/(inch)
G
(mm)/(inch)
X
(mm)/(inch)
Y
(mm)/(inch)
E
(mm)/(inch)
Value 3.600/0.142 1.600/0.063 0.700/0.028 1.000/0.039 0.950/0.037
