TLV271/ TLV272
Document number: DS35394 Rev. 4 - 2
2 of 17
www.diodes.com
December 2013
© Diodes Incorporated
NEW PROD
UC
T
TLV271/TLV272

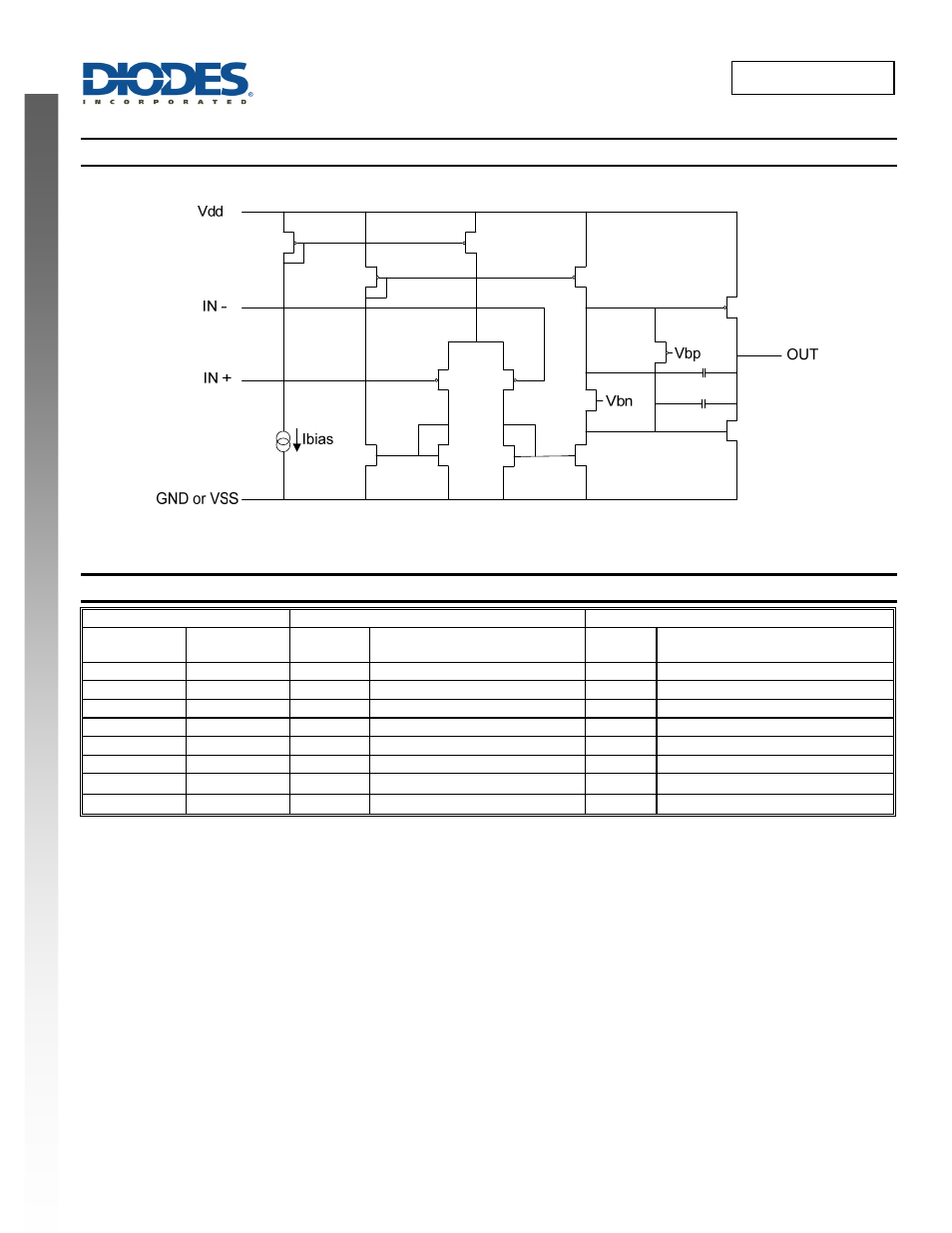

Simplified Schematic Diagram
Pin Descriptions
Pin Number TLV271 TLV272
SOT25
SO-8/
MSOP-8
Pin
Name
Function
Pin
Name
Function
1 N/C No connection 1OUT Output op-amp 1
4 2 IN- Inverting input 1IN- Inverting input op-amp 1
3 3 IN+ Non-inverting input 1IN+ Non-inverting input op-amp 1
2 4 GND Ground GND Ground
5 N/C No connection 2IN+ Non inverting input op-amp 2
1 6 OUT Output 2IN- Inverting input op-amp 2
5 7 V
DD
Supply 2OUT Output op-amp 2
8 N/C No connection V
DD
Supply
