R ECEIVER
B
ACK

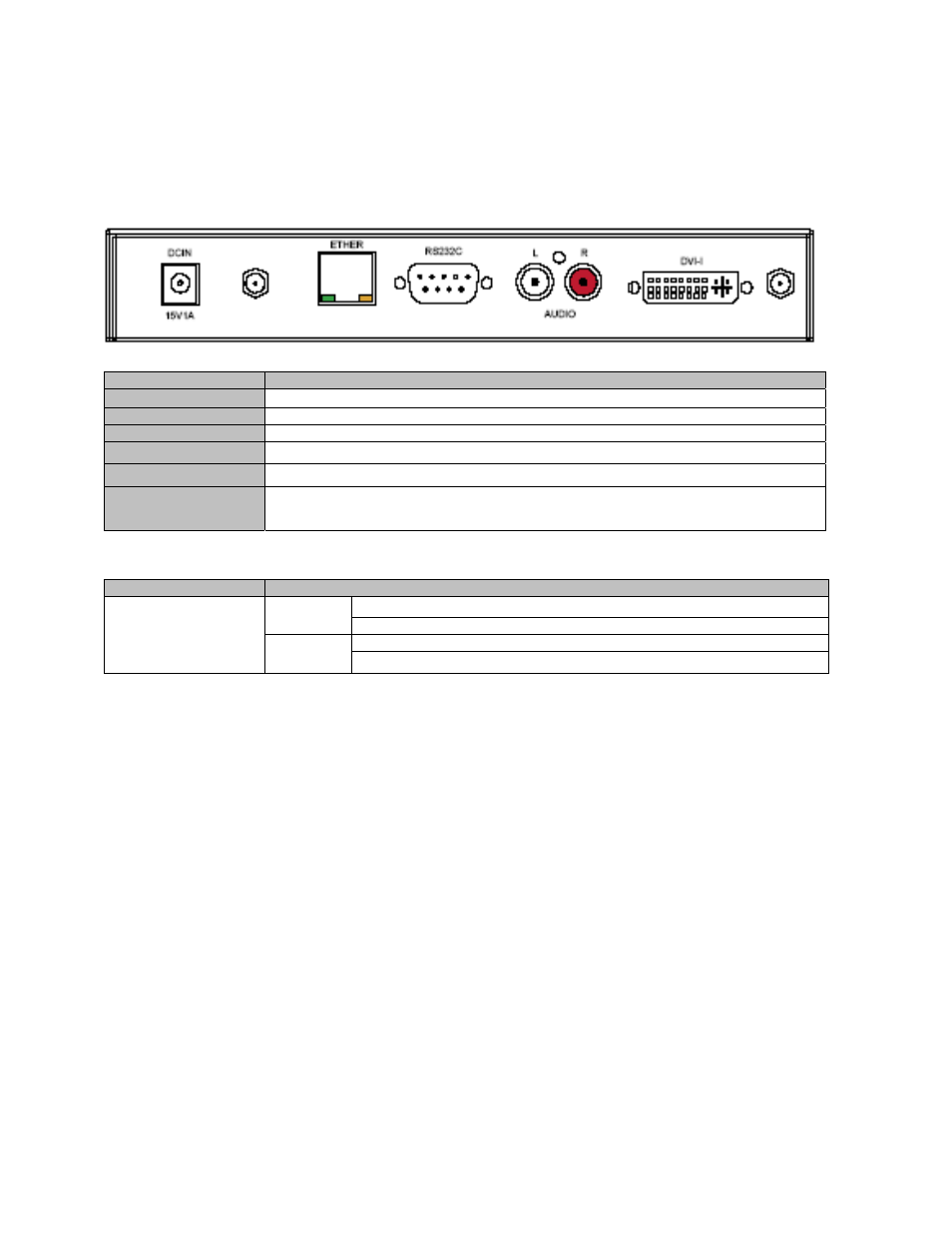

Connector Details
DCIN 15V 1A AC connector (15V 1A)
ETHER Ethernet interface (RJ45)
RS232C Serial interface (9pin Male)
AUDIO
Audio interface RCA Connectors
ANALOG RGB
VIDEO: DVI-I Interface
Antenna
SMA Connector
(Connect the antenna to either or both of the connectors)
Ethernet LED Details
Ethernet Connector Green OFF: Not connected to a wired LAN (Not linked)
ON: Connected to a wired LAN (linked)
Orange Blink: Blinks when receiving a packet via wired or wireless LAN.
Flash: Data error in a configuration area ROM/RAM check error
