4 170.660UK User Manual

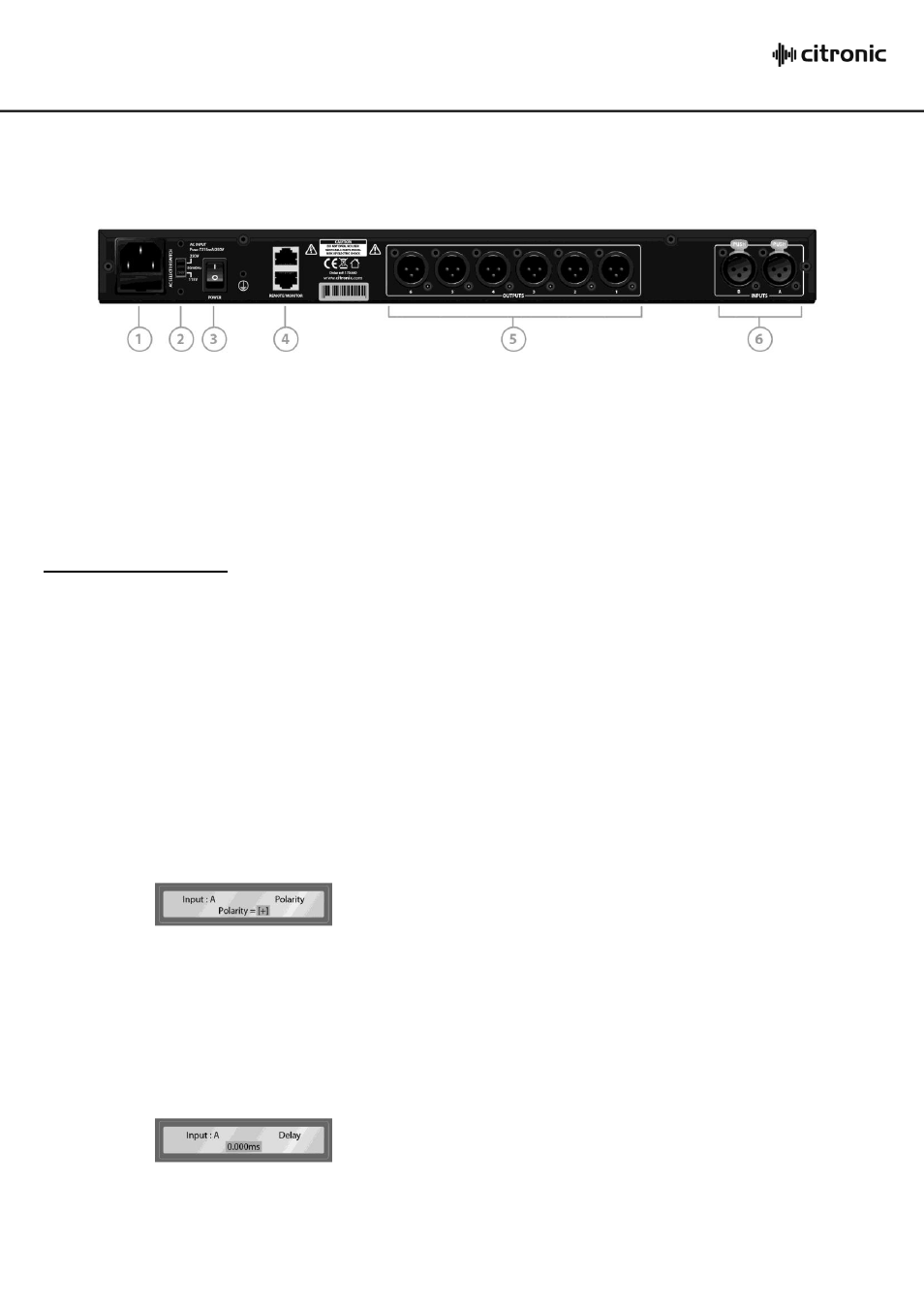

Rear Panel Controls and Connectors
1. IEC connector - Mains inlet with integral fuse
2. Mains voltage selector - Check mains supply and switch to correct voltage
3. Power switch - Switches mains power to the DSM2-6
4. RS-485 connector - Connection for networking to PC or other DSM2-6
5. Output connectors - Balanced XLR output connectors
6. Input connectors - Balanced XLR input connectors
Panel Operation:
Input Parameter Setting
Press & hold the MUTE/EDIT key for IN A or IN B for 3 seconds to enter edit mode.
Pressing a function button edits that particular function for the channel being edited.
Turning the rotary encoder adjusts the current selected parameter.
Pressing the rotary encoder enters the value for that field
Further turning of the encoder navigates to other parameters within the function
Pressing other function buttons switches to those other functions instantly
1. Input Polarity setting:
[Parameter] Polarity [+] positive [-] negative (independent for each channel)
example: 1. Hold IN A MUTE/EDIT button 3secs for edit mode (green LED lit)
2. Press POLARITY and the display will show as below
3. Turn encoder to change polarity
2. Input Delay setting:
[Parameter] Delay 0 - 1000ms (independent for each channel)
21μs steps 0 - 10ms, 84μs steps 10-20ms, 0.5ms steps over 20ms
example: 1. Hold IN A MUTE/EDIT button 3secs for edit mode (green LED lit)
2. Press DELAY and the display will show as below
3. Turn encoder to change the time value
