130.034UK, 130.035UK User Manual
PRODUCT FEATURES:
- Easy to install, plug and play.
- Built in low noise high gain amplifier to boost weak signals from the aerial.
- LED power indicator.
- Integrated wall mount.
- DC pass allows the control of satellite via Magic Eye remote extender (124.157UK).
- Short circuit protection and maximum output limiter prevents overload.
SPECIFICATION:
AMS02 AMS04
Item Ref 130.034UK 130.035UK
No of outputs 2 4
Frequency response 88 – 862MHz 88 – 862MHz
Max output level 94dBµV 89dBµV
Gain per split 10dB 6dB
Noise <4dB <4dB
Impedance 75Ω 75Ω
Power 12Vdc 12Vdc
Dimensions 99 x 73 x 27mm 99 x 73 x 27mm
Weight 110g 150g
INSTALLATION:
Before install please ensure all devices to be connected to the amplifier are switched off and
disconnected from the mains. The unit is designed to be connected with ”F” connectors for a secure
connection, for coax connector (RF/IEC-169-2/Belling-Lee), a coax to” F” connector adaptor can be
used.

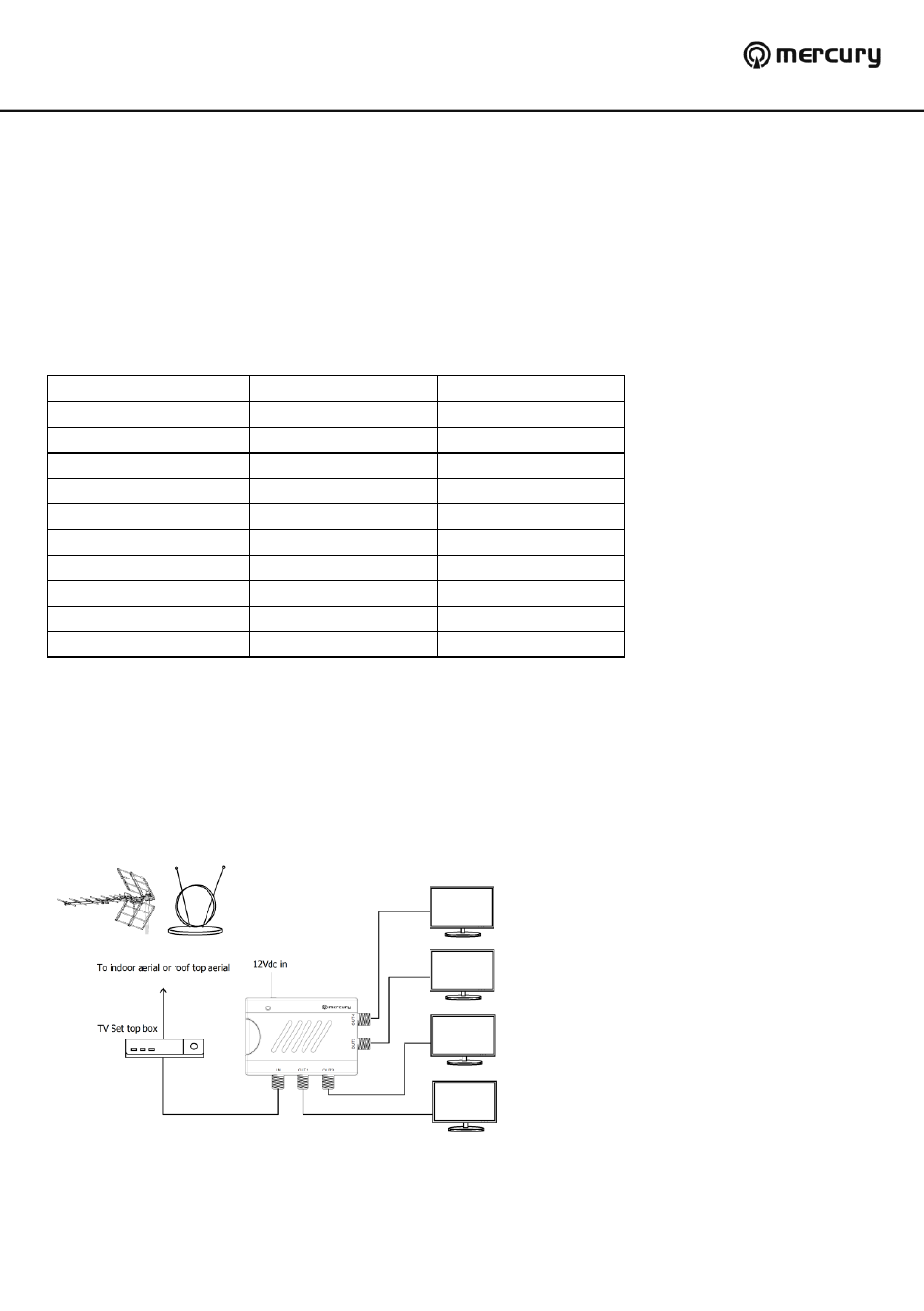

EXAMPLE INSTALLATION:
