AVSL 130.050 MSPL03 - Manual

MSPL03
WIDEBAND MASTHEAD SIGNAL
SPLITTER
Item ref: 130.050UK
User Manual
SPECIFICATION:
Frequency range: 5 - 2400MHz
Insertion loss: 6.5 – 9.5dB
Return loss: 10dB
Isolation: 20dB
DC power pass (Max): 24V/200mA
Dimensions & weight: 110 x 80 x 45mm, 130g
INTRODUCTION:
Thank you for choosing this Mercury masthead splitter. It is designed to be installed after a masthead
amplifier or after a satellite LNB to allow distribution of TV or satellite signals. Supplied in IP44 rated
casing for outdoor installation.
- F-type connector for secure connection.
- Fully shielded for minimum signal interference.
- DC pass allows power for LNB or masthead amplifier.
- Wideband frequency response compatible with FM/DAB/DTV(DVB-T, ATSC, ISDB-T, T-
DMB)/satellite.
INSTALLATION:
Before installing, to avoid danger of electric shock, please ensure that all equipment is turned off and
disconnected from the mains supply.

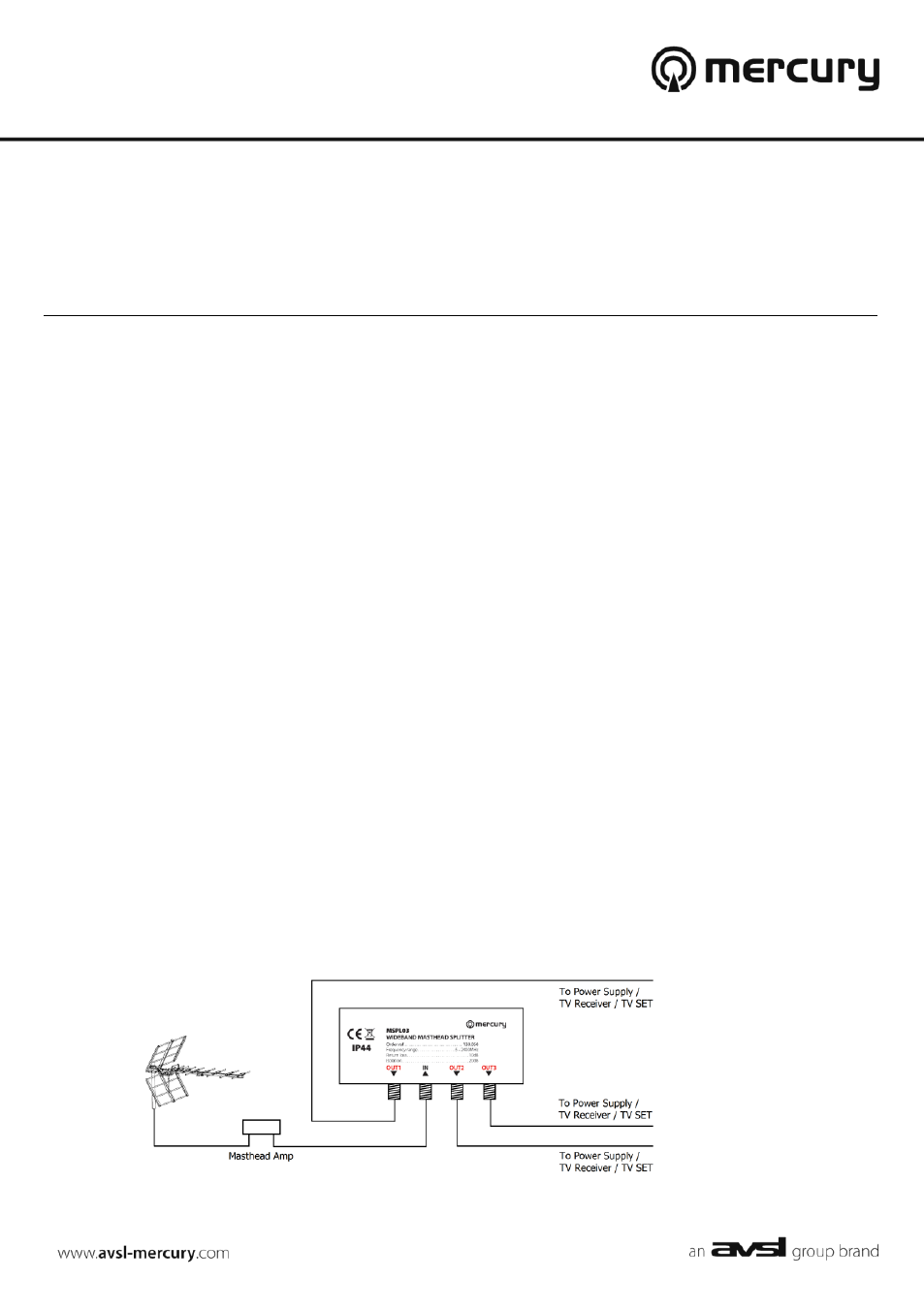

For TV signal connect the output of the masthead amp to the input of the splitter, and the output of
the splitter to various designated receivers and TV. Please note, only one power supply will be
required to connect to the output of splitter to power the masthead amplifier.
