MAGICEYE

Item ref:124.157UK

Magic eye with IR with coaxial lead

User Manual

DESCRPTION:
Magic eye Digital Link will allow control of your SKY Digital satellite receiver

whilst viewing in other rooms around the home. This unit is compatible with UK
digital satellite receivers with an output marked RF-OUT2 that provides a second

TV output together with a 9V DC supply.











INSTALLATION:

Use only good quality cable for installation and avoid sharp bends or install near
mains cable. For installation together with amplifier, splitter or isolated outlet

plate please refer back to dealer for advice.

1. Unplug both TV and Decoder from the mains.

2. Plug the Magic eye’s coaxial lead into the aerial socket of the TV.

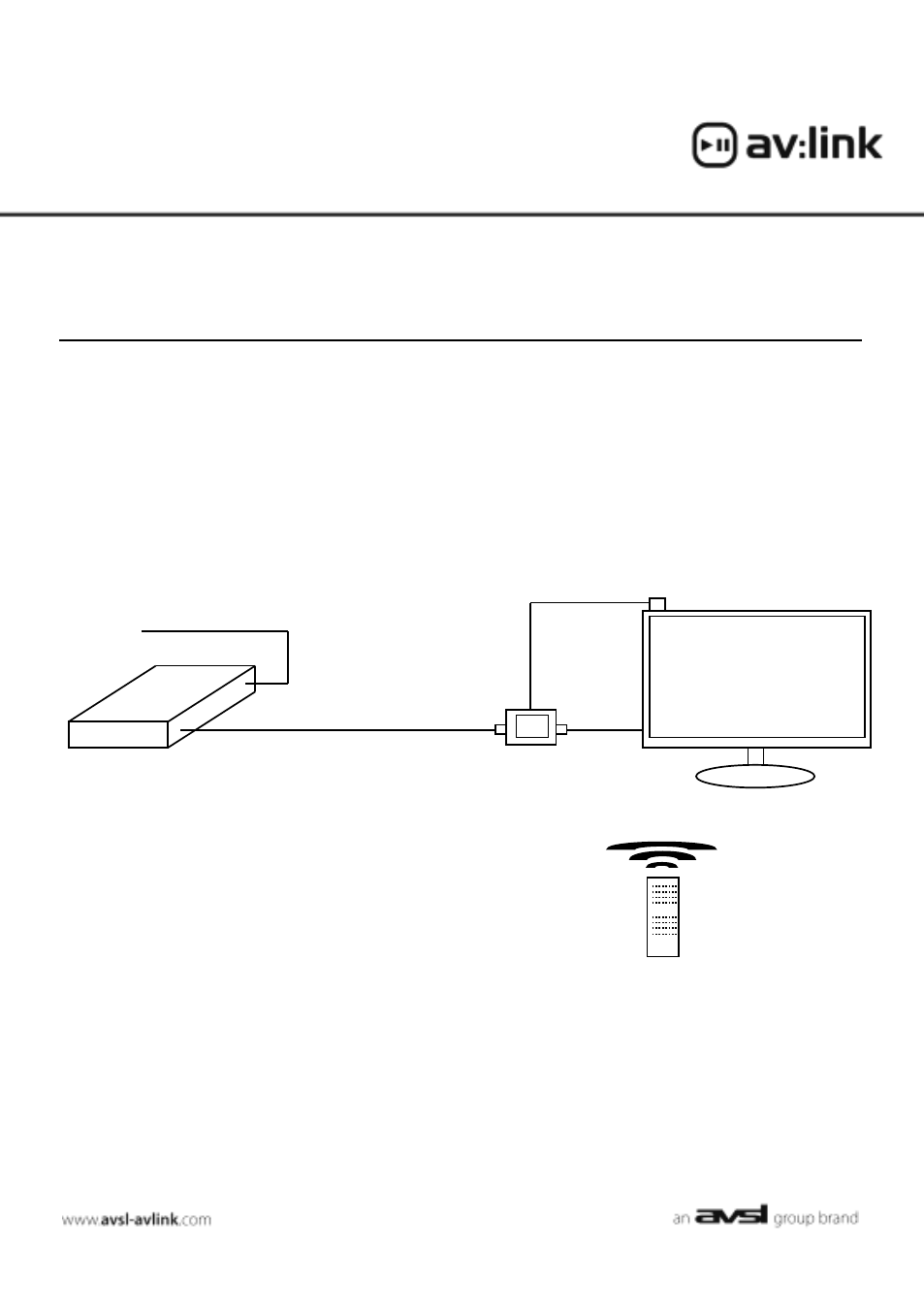

Magic eye

TV2

Coaxial cable

TV1

RF2

Satellite
decoder

IR
sensor

Sky
Remote
