APS12

12Vdc MASTHEAD AMPLIFIER
POWER SUPPLY WITH 1 OUTPUT

Item ref: 130.060UK

User Manual


SPECIFICATION:

Power Supply:

230Vac 50Hz

DC Power:

12Vdc 100mA (max)

Frequency range: 47-862MHz
Impedance:

75Ω

Power:

<8W

Insertion lost:

<1dB

Dimensions:

135 x 40 x 78mm

Weight:

320g

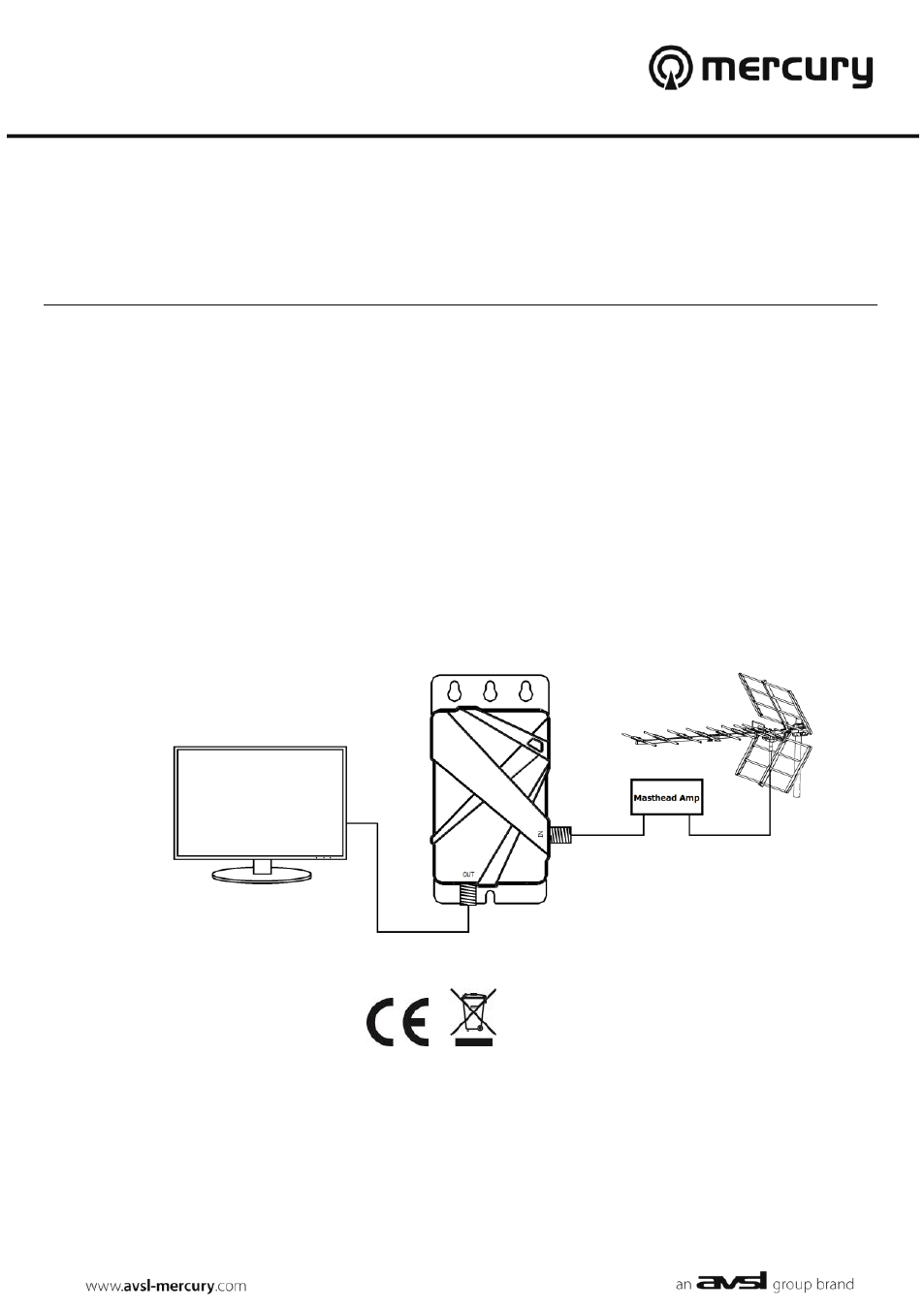

INTRODUCTION:

Thank you for choosing this Mercury masthead amplifier power supply. It provides 12Vdc to the RF
input to power a masthead amplifier whilst passing FM/DAB/TV signals to the RF output.

-

F-type connector for secure connection.

-

Compatible with FM/DAB/DTV (DVB-T, ATSC, ISDB-T, T-DMB).

-

Fully shielded design for minimum signal interference.

-

Short circuit protection.

This product is classed as Electrical or Electronic equipment and should not be disposed

with other household or commercial waste at the end of its useful life. The goods must be disposed of

according to your local council guidelines.

Errors and omissions excepted.

Copyright© 2014. AVSL Group Ltd
