AVSL 130.053 MDECODE User Manual

Mdecode, Indoor diplexer tv/satellite

background image

MDECODE

INDOOR DIPLEXER
TV/SATELLITE

Item ref: 130.053UK

User Manual


SPECIFICATION:

Frequency range:

Terrestrial 5 – 862MHz, Satellite 950 – 2400MHz

Insertion loss:

Terrestrial 2dB, Satellite 3dB

DC power pass:

13-18Vdc 300mA (Sat leg only)

Return loss:

10dB

Isolation:

25dB

Dimensions & Weight:

50 x 50 x17mm, 40g

INTRODUCTION:

Thank you for choosing this Mercury diplexer. It is designed to combine or split terrestrial and
Satellite signals, allowing both signals to be transmitted down a single cable and then split at the end
of the cable.

-

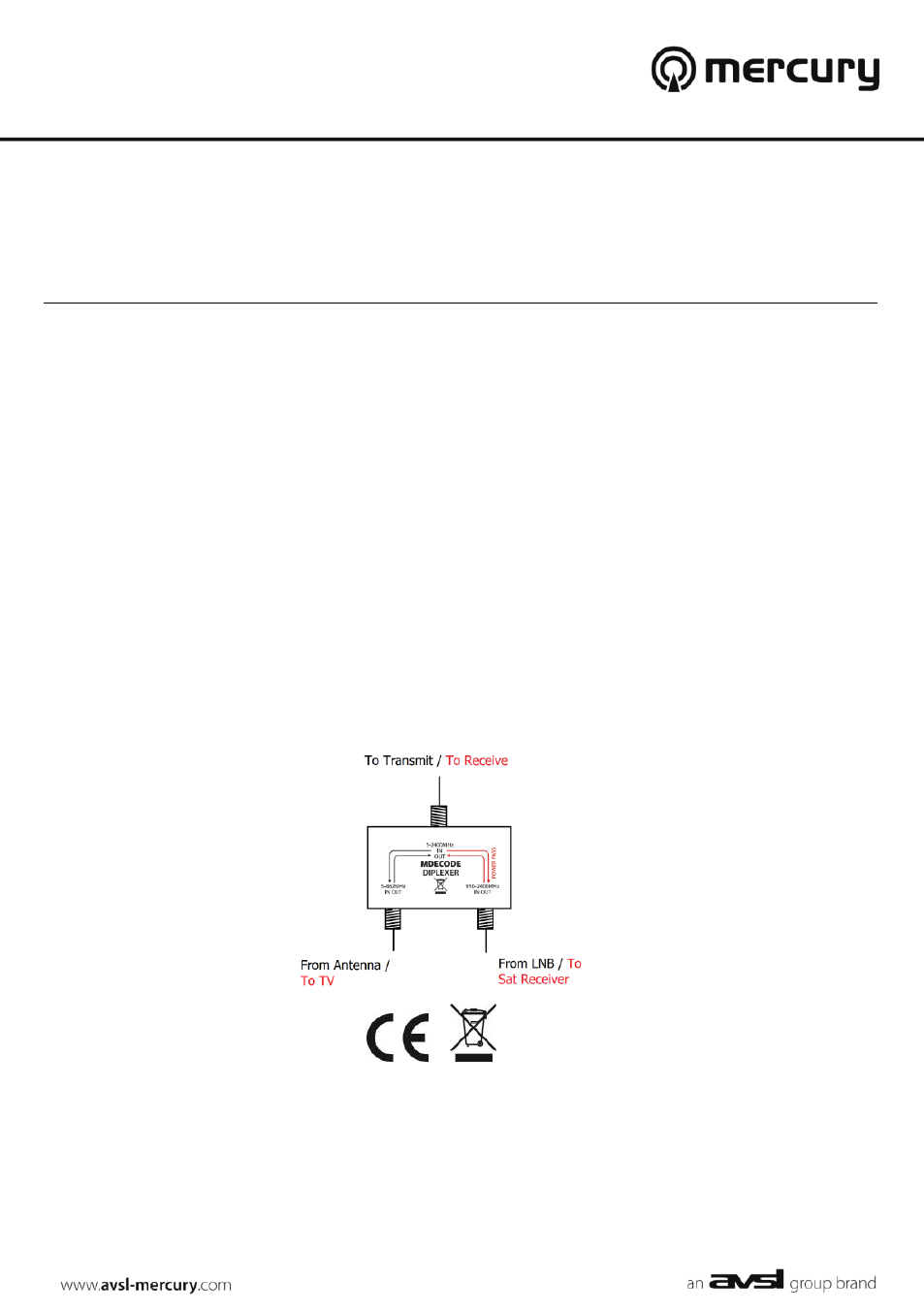

F-type connector for secure connection.

-

Wideband compatible with FM/DAB/DTV(DVB-T, ATSC, ISDB, T-DMB)/Satellite.

-

Fully shielded for minimum signal interference.

-

DC pass allows power for LNB.





This product is classed as Electrical or Electronic equipment and should not be disposed with other

household or commercial waste at the end of its useful life. The goods must be disposed of according

to your local council guidelines.

Errors and omissions excepted.

Copyright© 2014. AVSL Group Ltd
