ASUS P8Z68-M PRO 1-11

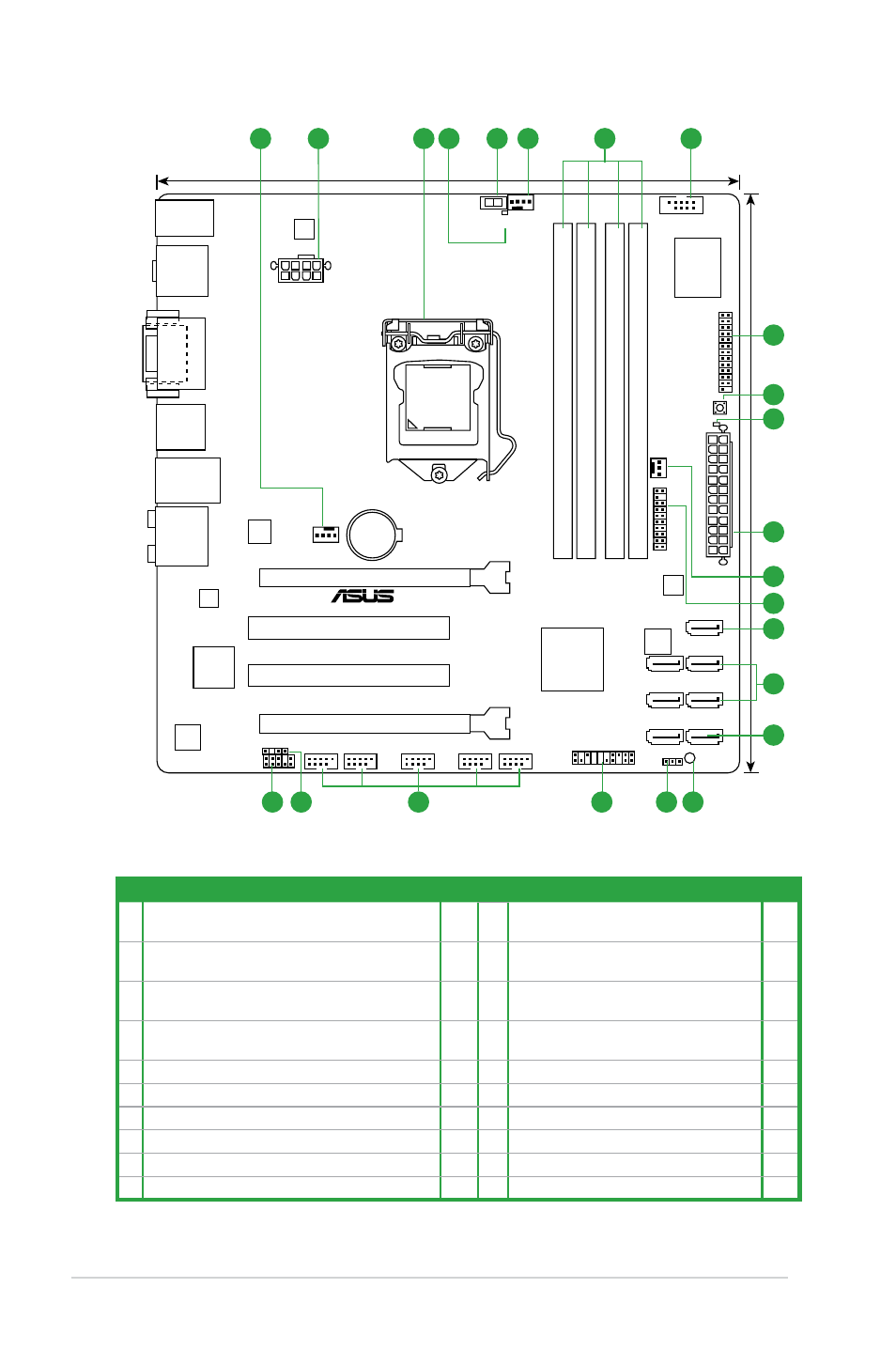

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. CPU, Chassis and Power fan connectors
(4-pin CPU_FAN, 4-pin CHA_FAN, 3-pin PWR_FAN) 1-31 11. TPM connector (20-1 pin TPM)
1-32
2. ATX power connectors
(24-pin EATXPWR, 8-pin EATX12V)
1-32 12 ASMedia
® Serial ATA 6.0 Gb/s connectors
(7-pin SATA 6G_E1 [navy blue])
1-30
3. Intel ® CPU socket 1-12 13. Intel
® Z68 Serial ATA 3.0 Gb/s connectors
(7-pin SATA3G_1–4 [blue])
1-29
4. GPU LED 1-36 14. Intel
® Z68 Serial ATA 6.0 Gb/s connectors
(7-pin SATA6G_1/2 [gray])
1-30
5. GPU Boost Swtich 1-35 15. Onboard LED (SB_PWR) 1-35
6. DDR3 DIMM sockets 1-17 16. Clear RTC RAM (3-pin CLRTC) 1-25
7. serial port connector (10-1 pin COM1) 1-28 17. System panel connector (20-8 pin PANEL) 1-33
8. LPT connector (26-1 pin LPT) 1-33 18. USB 2.0 connectors (10-1 pin USB5~14) 1-31
9. MemOK! switch 1-34 19. Digital audio connector (4-1 pin SPDIF_OUT) 1-29
10 DRAM LED 1-35 20. Front panel audio connector (10-1 pin AAFP) 1-28
P8Z68-M PRO
PCIEX16_1
PCIEX16_2
PCI1
PCI2
USB78 USB56 USB910 USB1112 USB1314
AAFP
EATXPW
R
CPU_FAN
PWR_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
892
RTL
8111E
ASM
1083
ASM
1061
EPU
ASM
1042
KB_USB34
SPDIFO
_HDMI
_DP
64Mb
BIOS
SB_PWR
CLRTC
24.4cm(9.6in)
24.4cm(9.6in)
Intel ®
Z68
DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module) DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module)
SATA6G_1 SATA6G_2
SATA3G_1 SATA3G_2
SATA3G_3 SATA3G_4
SATA6G_E1
AUDIO
LAN1_USB12
ESATA6G
_USB3_12
CHA_FAN
PANEL
SPDIF_OUT
LPT
COM1
DVI_VG
A
DRAM_LED
MemOK!
GPU Boost
GPU_LED
LGA1155
EATX12V
TPM
3 7 1 2 6
15 18 16 17 19 20
1 5 4
8
9
10
2
1
11
14
13
12
