ASUS P8Z68-M PRO 1-29

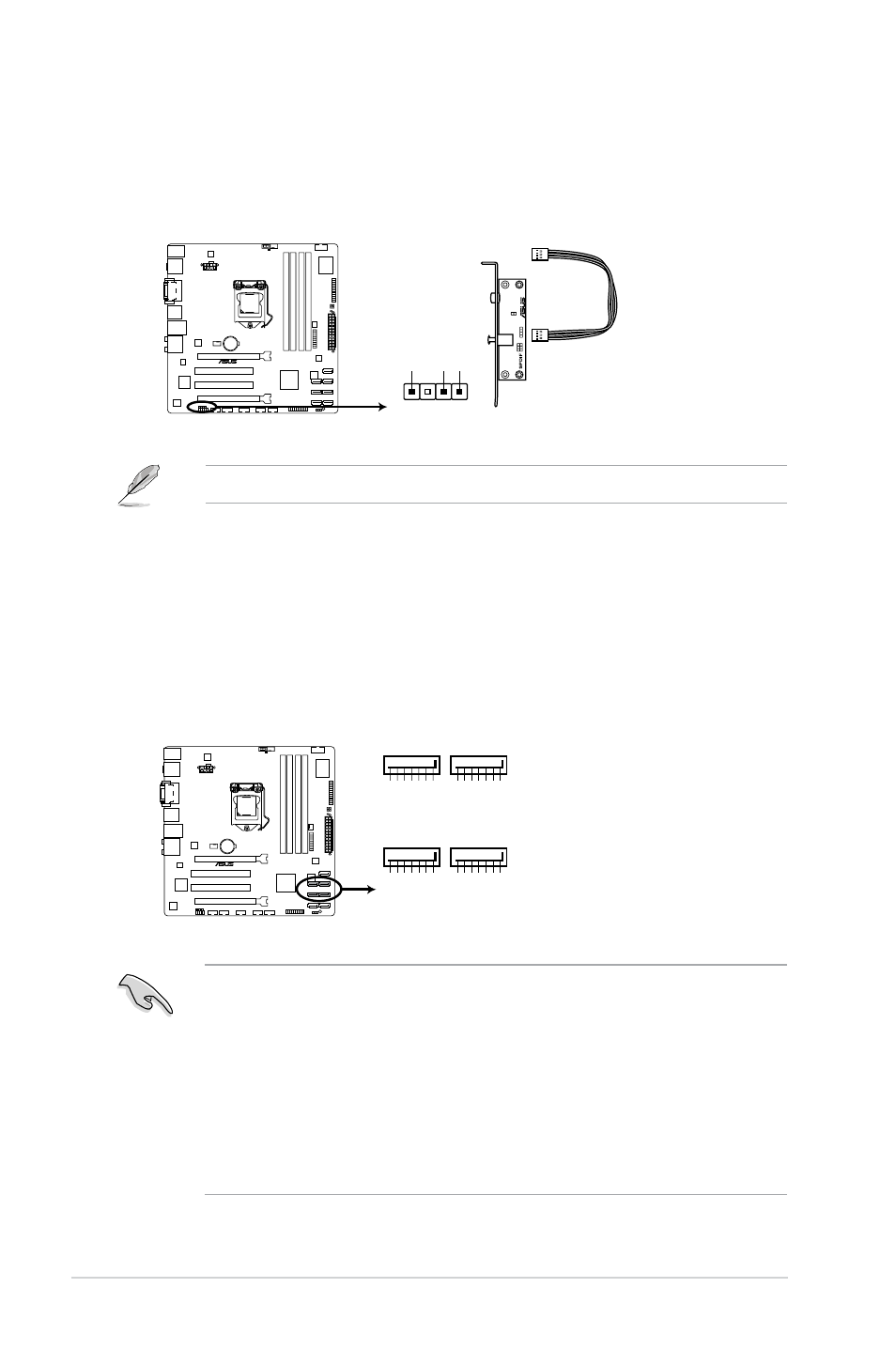

4. Intel ® Z68 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_1–4 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical disc drives
via Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
configuration with the Intel ® Rapid Storage Technology through the onboard Intel ® Z68
chipset.
• These connectors are set to [AHCI Mode] by default. If you intend to create
a Serial ATA RAID set using these connectors, set the SATA Mode item in
the BIOS to [RAID Mode]. Refer to section 2.5.4 SATA Configuration for
details.
• When using NCQ, please check the SATA Mode in the BIOS is [AHCI Mode].
Refer to 2.5.4 SATA Configuration for details.
• You must install Windows ® XP Service Pack 3 or later versions before using
Serial ATA hard disk drives. The Serial ATA RAID feature is available only if
you are using Windows ® XP SP3 or later versions.
SATA3G_2
GN
D
RSATA_TXP5 RSATA_TXN5
GN
D
RSATA_RXP5 RSATA_RXN5
GN
D
SATA3G_1
GN
D
RSATA_TXP1 RSATA_TXN1
GN
D
RSATA_RXP1 RSATA_RXN1
GN
D
SATA3G_4
GN
D
RSATA_TXP4 RSATA_TXN4
GN
D
RSATA_RXP
4
RSATA_RXN4
GN
D
SATA3G_3
GN
D
RSATA_TXP3 RSATA_TXN3
GN
D
RSATA_RXP
3
RSATA_RXN3
GN
D
P8Z68-M PRO
P8Z68-M PRO Intel ® SATA 3.0Gb/s connectors
3. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
The S/PDIF module is purchased separately.
P8Z68-M PRO
P8Z68-M PRO Digital audio connector
SPDIF_OUT
+5
V
SPDIFOU
T
GND
