ASUS P8Z68-M PRO 1-31

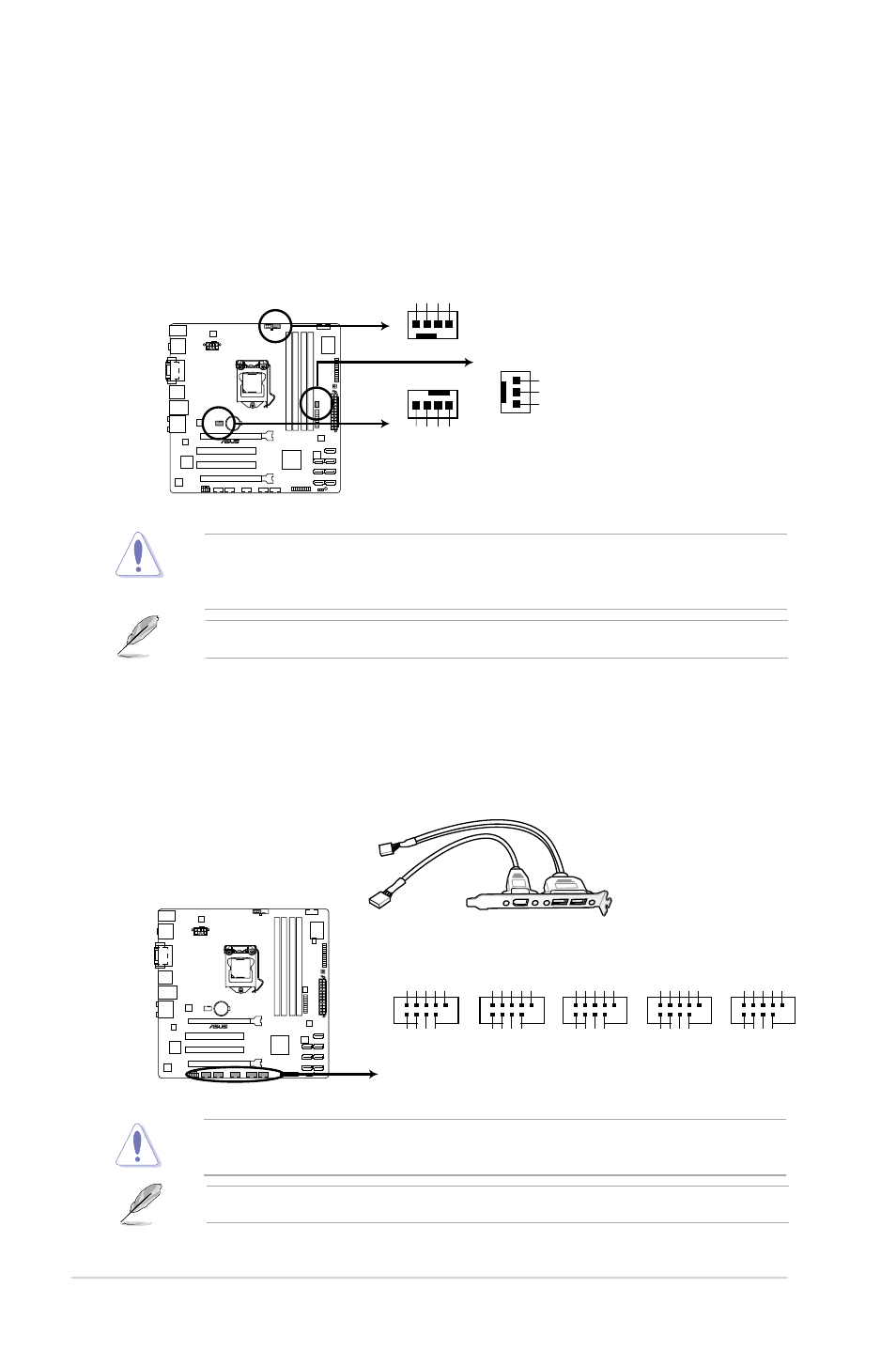

8. USB 2.0 connectors (10-1 pin USB5~14)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with the USB 2.0 specification that supports up
to 480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
P8Z68-M PRO
P8Z68-M PRO USB2.0 connectors
USB+5V USB_P12- USB_P12+ GND NC
USB+5V
USB_P11- USB_P11+
GND
USB1112
PIN 1
USB+5V USB_P14- USB_P14+ GND NC
USB+5V
USB_P13- USB_P13+
GND
USB1314
PIN 1
USB+5V USB_P10- USB_P10+ GND NC
USB+5V USB_P9- USB_P9+
GND
USB910
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V USB_P7- USB_P7+
GND
USB78
PIN 1
USB+5V USB_P6- USB_P6+ GND NC
USB+5V USB_P5- USB_P5+
GND
USB56
PIN 1
7. CPU and Chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN, 3-pin
PWR_FAN)
Connect the fan cables to the fan connectors on the motherboard, making sure that the
black wire of each cable matches the ground pin of the connector.
DO NOT forget to connect the fan cables to the fan connectors. Insufficient air flow inside
the system may damage the motherboard components. They are not jumpers! DO NOT
place jumper caps on the fan connectors.
The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.
CPU_FAN
CHA_FAN
PWR_FAN
GND CPU
FA
N PWR
CPU
FA
N IN
CPU
FA
N PWM
CHA
F
A
N PW
M
CHA
F
A
N IN
CHA
F
A
N PW
R
GND P8Z68-M PRO
P8Z68-M PRO fan connectors
GND
+12V
Rotation
