A S U S P 5 L D 2 - V A S U S P 5 L D 2 - V A S U S P 5 L D 2 - V A S U S P 5 L D 2 - V A S U S P 5 L D 2 - V 2 - 3 1 2 - 3 1 2 - 3 1 2 - 3 1 2 - 3 1
1 1 . 1 1 . 1 1 . 1 1 . 1 1 . ATX power connectors (24-pin EATXPW, 4-pin ATX12V) ATX power connectors (24-pin EATXPW, 4-pin ATX12V) ATX power connectors (24-pin EATXPW, 4-pin ATX12V) ATX power connectors (24-pin EATXPW, 4-pin ATX12V) ATX power connectors (24-pin EATXPW, 4-pin ATX12V)
These connectors are for ATX power supply plugs. The power supply
plugs are designed to fit these connectors in only one orientation.
Find the proper orientation and push down firmly until the connectors
completely fit.
• Use of an ATX 12 V Specification 2.0 -compliant or later version
power supply unit (PSU) that provides a minimum power of 350 W
is recommended for a fully-configured system.
• Do not forget to connect the 4-pin ATX +12 V power plug;
otherwise, the system will not boot up.
• Use of a PSU with a higher power output is recommended when
configuring a system with more power consuming devices. The
system may become unstable or may not boot up if the power is
inadequate.
P5LD2-V
®

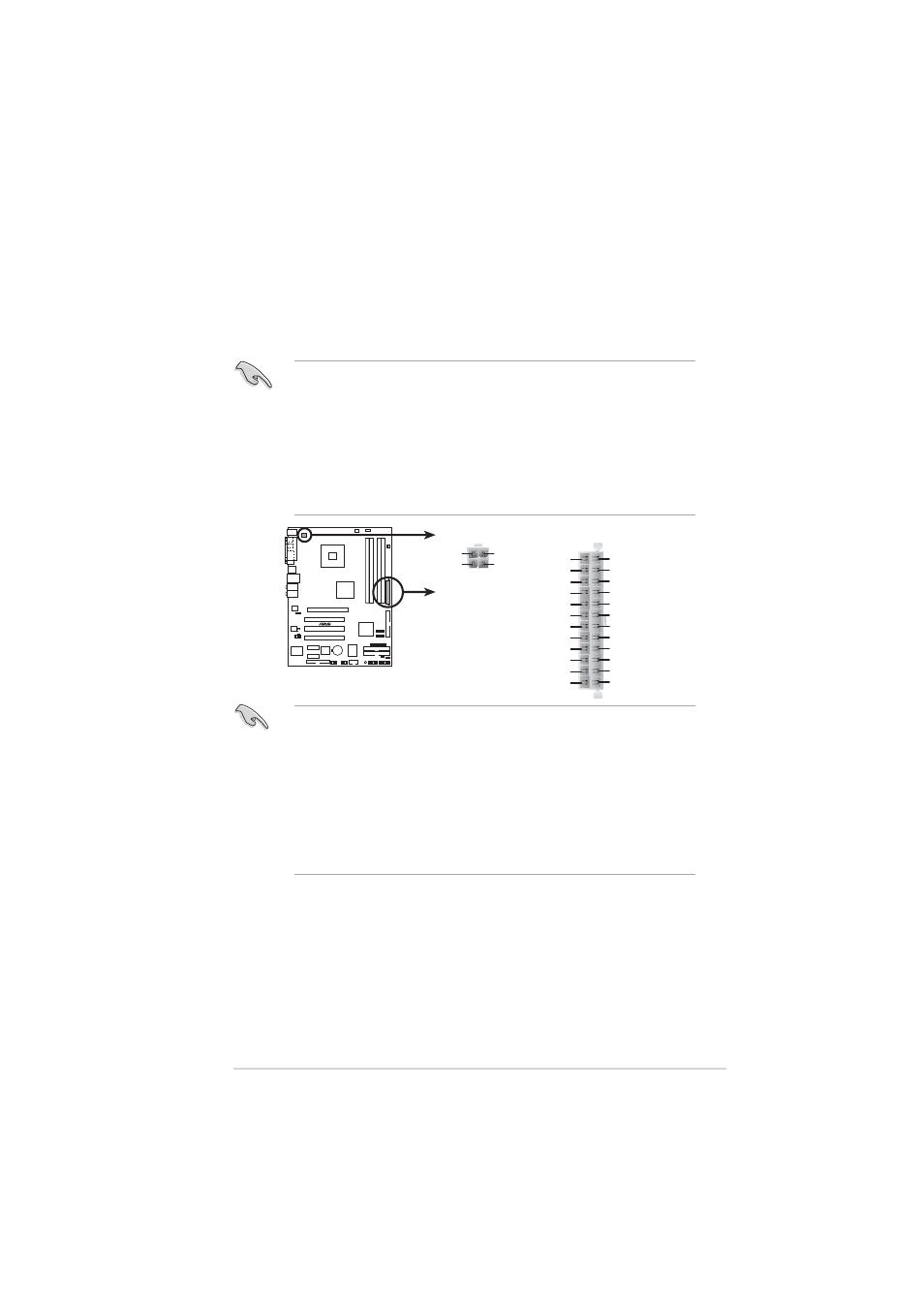

P5LD2-V ATX power connectors
EATXPWR ATX12V
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground
+12V DC
GND
+12V DC
GND
I m p o r t a n t n o t e s o n m o t h e r b o a r d p o w e r r e q u i r e m e n t s I m p o r t a n t n o t e s o n m o t h e r b o a r d p o w e r r e q u i r e m e n t s I m p o r t a n t n o t e s o n m o t h e r b o a r d p o w e r r e q u i r e m e n t s I m p o r t a n t n o t e s o n m o t h e r b o a r d p o w e r r e q u i r e m e n t s I m p o r t a n t n o t e s o n m o t h e r b o a r d p o w e r r e q u i r e m e n t s
• The ATX 12 V Specification 2.0-compliant (350 W) PSU has been
tested to support the motherboard power requirements with the
following configuration:
CPU : Intel ® Pentium ® D 3.0 GHz Dual Core CPU
Memory : 512 MB DDR2 (x 4)
Graphics card : PCI Express x16 Nvidia 6600GT
Parallel ATA device : IDE hard disk drive
Serial ATA device : SATA hard disk drive (x2)
Optical drives : DVD-RW
