ASUS PRL-DLS motherboard user guide 2-17
PRL-DLS ®

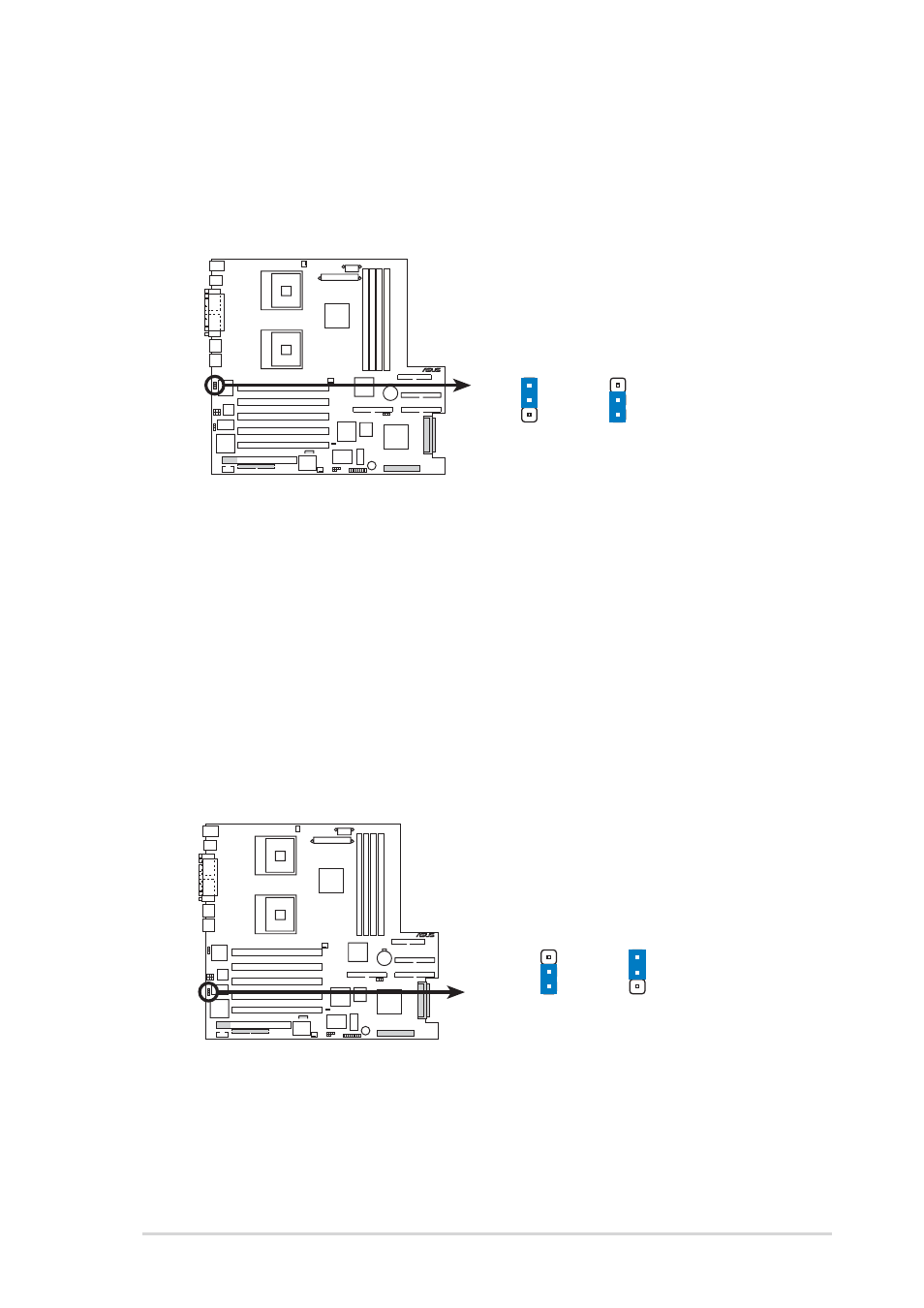

JBCMLAN1
PRL-DLS Broadcom 5803 LAN Chip Setting
(Default)
Enable Disable
3
2
1
2
PRL-DLS ®
PRL-DLS ATI RageXL VGA Setting
JVGA1
(Default)
Enable Disable
3
2
1
2
3. Fast Ethernet setting (3-pin JBCMLAN1)
This jumper is set by default, pins [1-2], to enable the onboard
Broadcom BCM5703 Fast Ethernet controller to support 10/100/
1000BASE-TX networking. Reset to pins 2-3 to disable the controller.
4. VGA setting (3-pin JVGA1)
This jumper is set by default, pins [1-2], to enable the onboard the
onboard ATI Rage XL VGA controller. Reset to pins 2-3 to disable the
VGA controller.
