2. CPU Frequency Multiple Setting (SW2 Switches 5-8)
Set DSW switches (1-4) to use the clock multiplier to coordinate the ratio of
bus speeds with CPU settings. Set the DSW switches according to the
internal speed of your processor and the bus frequency (133/100MHz).
MultiplierTable
Multiplier DSW
5 6 7 8
8.0x [OFF] [OFF] [OFF] [OFF]
10.0x [OFF] [ON] [OFF] [OFF]
11.0x [ON] [ON] [OFF] [OFF]
12.0x [OFF] [OFF] [ON] [OFF]
13.0x [ON] [OFF] [ON] [OFF]
14.0x [OFF] [ON] [ON] [OFF]
15.0x [ON] [ON] [ON] [OFF]
16.0x [OFF] [OFF] [OFF] [ON]
17.0x [ON] [OFF] [OFF] [ON]
18.0x [OFF] [ON] [OFF] [ON]
19.0x [ON] [ON] [OFF] [ON]
20.0x [OFF] [OFF] [ON] [ON]
21.0x [ON] [OFF] [ON] [ON]
22.0x [OFF] [ON] [ON] [ON]
23.0x [ON] [OFF] [OFF] [OFF]
24.0x [ON] [ON] [ON] [ON]
PRL-DLS ®
PRL-DLS CPU

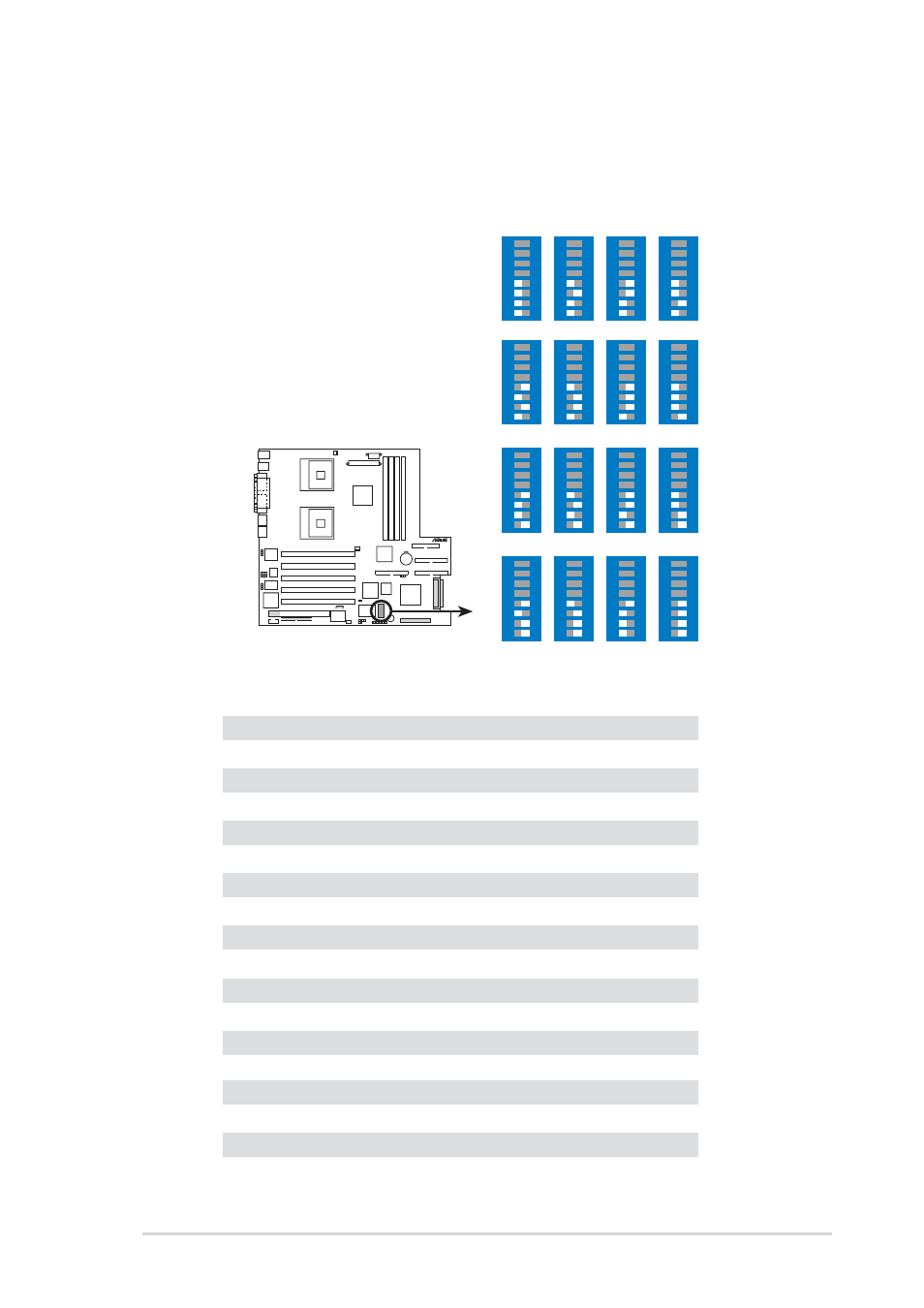

Frequency Multiple Selection
ON 1234
5678
12.0x
ON 1234
5678
11.0x
ON 1234
5678
10.0x
ON 1234
5678
8.0x
ON 1234
5678
16.0x
ON 1234
5678
15.0x
ON 1234
5678
14.0x
ON 1234
5678
13.0x
ON 1234
5678
20.0x
ON 1234
5678
19.0x
ON 1234
5678
18.0x
ON 1234
5678
17.0x
ON 1234
5678
24.0x
ON 1234
5678
23.0x
ON 1234
5678
22.0x
ON 1234
5678
21.0x
SW2
