ASUS K8N-E Deluxe motherboard 2-27

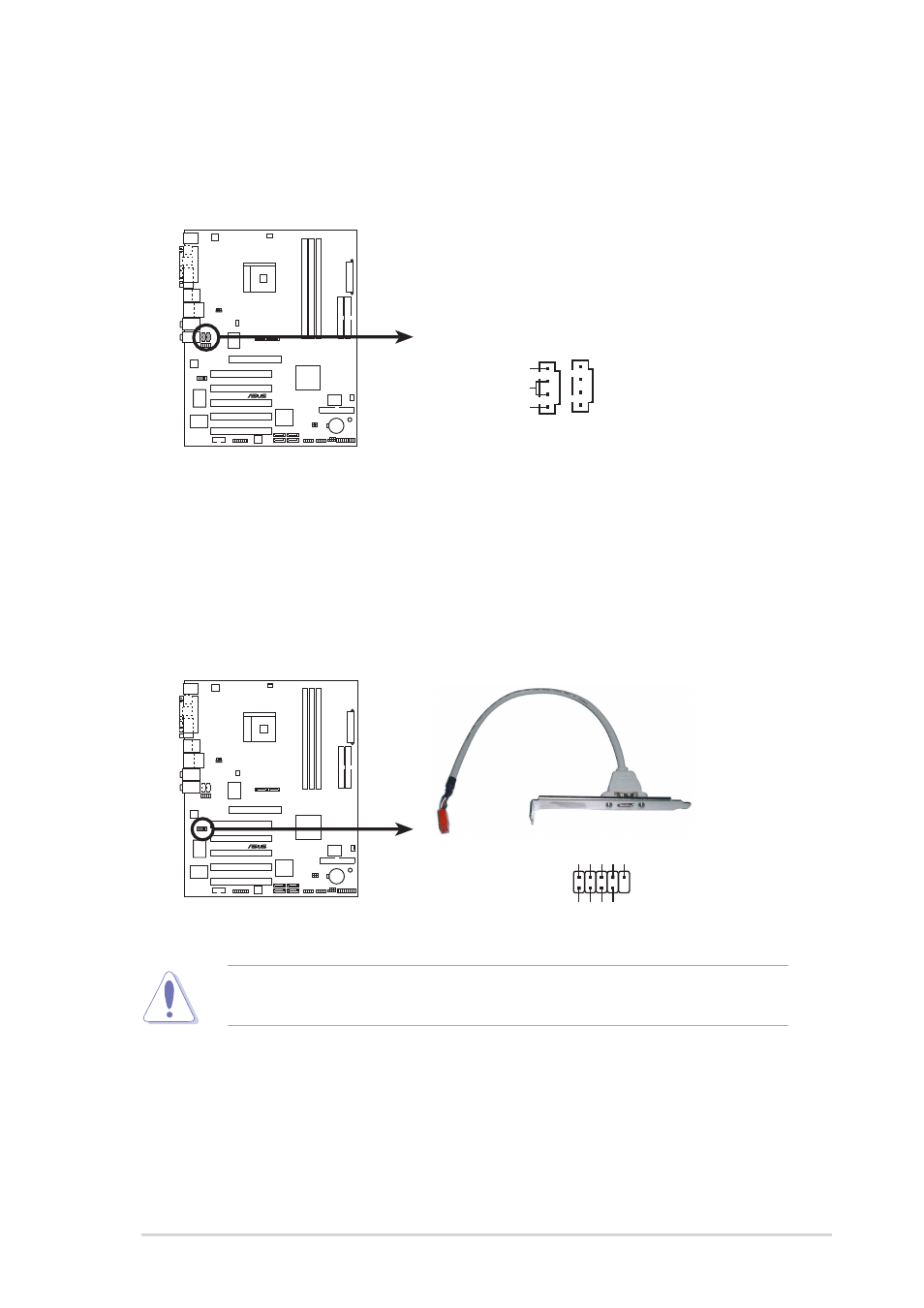

10. IEEE 1394 connectors (10-1 pin IE1394_2)
This connector is for the bundled IEEE 1394 module. Attach the
10-1 pin cable plug to this connector. You can also connect a
1394-compliant internal hard disk to this connector.
9. Internal audio connectors (4-pin CD, AUX)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card.
NEVER connect a USB cable to the IEEE 1394 (red) connector. Doing
so will damage the motherboard!
K8V-E
®
K8N-E Internal Audio Connectors
AUX (White)
Right Audio Channel
Left Audio Channel
Ground
CD (Black)
K8V-E
®
K8N-E IEEE-1394 Connector
IE1394_2
1
TP
A0-
GND TPB0- +12V GND
TP
A0+
GND
TPB0+
+12V
