ASUS P2B-D/P2B-DS User’s Manual 23
CPU
III. INST
ALLA
TION
Recommended Heatsinks for Slot 1 Processors
The recommended heatsinks for the Slot 1 processors are those with three-pin fans,
such as the ASUS Smart Fan, that can be connected to the motherboard’s CPU fan
connector. These heatsinks, such as the Elan Vital Heatsink with Fan, dissipate heat
more efficiently and with an optional hardware monitor, they can monitor the fan’s
RPM and use the alert function with the Intel LANDesk Client Manager (LDCM)
and the ASUS PC Probe software.
Elan Vital Heatsink with Fan
To install, simply follow the procedures for In-
stalling the Processor. The Elan Vital heat-
sink, however, comes with a lever to clamp the
heatsink into the SEC cartridge. Mount the
heatsink in the orientation as shown then flip
the lever from “Unlock” to “Lock.”
NOTE: If you are installing only one processor, you may use the free connector
to connect a power supply with thermal monitoring.
IMPORTANT! ASUS guarantees accurate readings only for the ASUS Smart
Fan and the Intel boxed processor heatsink with fan because both have similar
heat distribution and heatsink material.

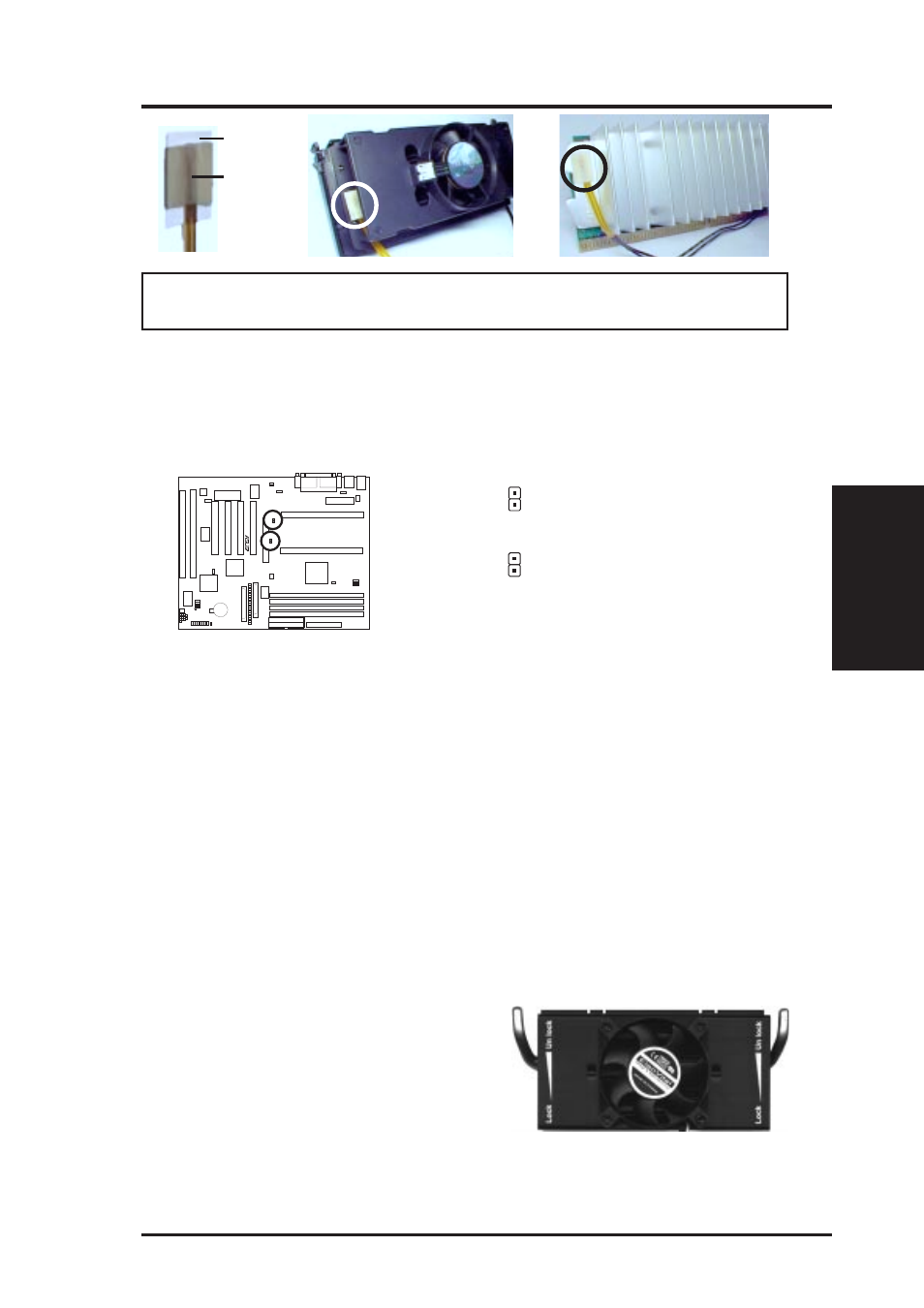

WARNING! Do not insert the sensor between the processor and heatsink, other-
wise, it will cause damage to the P2T-Cable.
Tab
Sensor
←
OR STICK ABOUT HERE
2. Connect the P2T-Cables to the CPU thermal sensor connectors (JP4/JP5).
P2B-D/DS CPU Heat Sensor Connectors
1
1
R
JP4
JP5
Heat Sensor Connector for CPU 1
Heat Sensor Connector for CPU 2
III. INSTALLATION
