The ASUS P2B-D/P2B-DS Motherboard
II. FEATURES
II. FEA
TURES

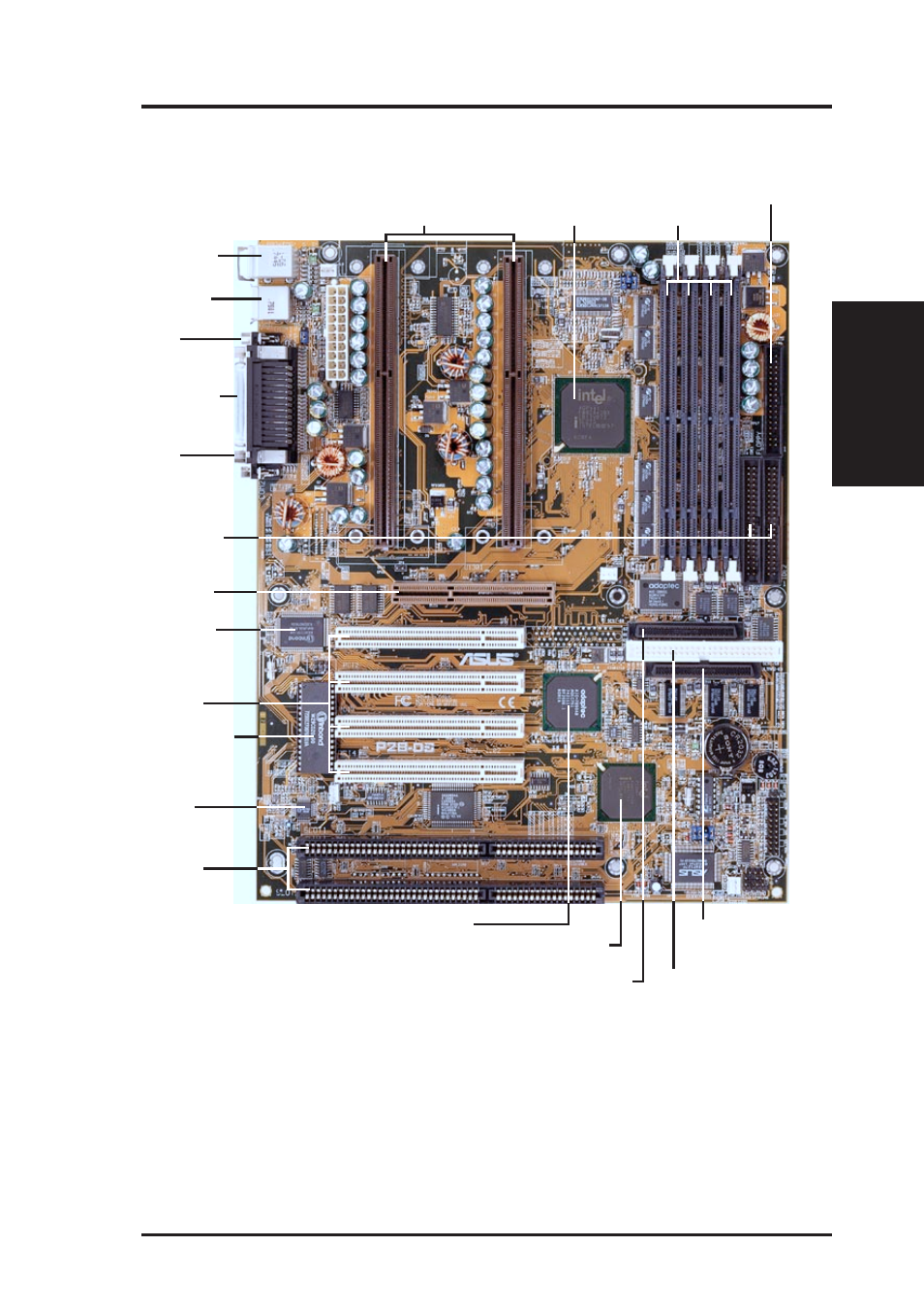

Motherboard Parts
T: USB Port 1
B: USB Port 2
COM 2
(Bottom)
Programmable
2Mbit Flash ROM
4PCI Slots
Accelerated
Graphics Port
2 ISA Slots
T: PS/2 Mouse
B: PS/2 Keyboard
Parallel (Top)
Serial (Bottom)
Hardware
Monitor
Multi-I/O Chip
COM 1
(Bottom)
Adaptec AIC-7890 Ultra2 &
Ultra-Fast/Wide SCSI Chipset
(optional)
Intel PIIX4E PCIset
Intel 440BX AGPset
SEC CPU Slots
4 DIMM Sockets
68-pin Wide SCSI Connector
68-pin Ultra2 SCSI
Connector
50-pin Narrow SCSI
Connector
IDE Connectors
Floppy Connector
