2-22 Chapter 2: Hardware information
13
4 6
15
1
18
2
17 16 14
3 5 7 8
11 12
10
9

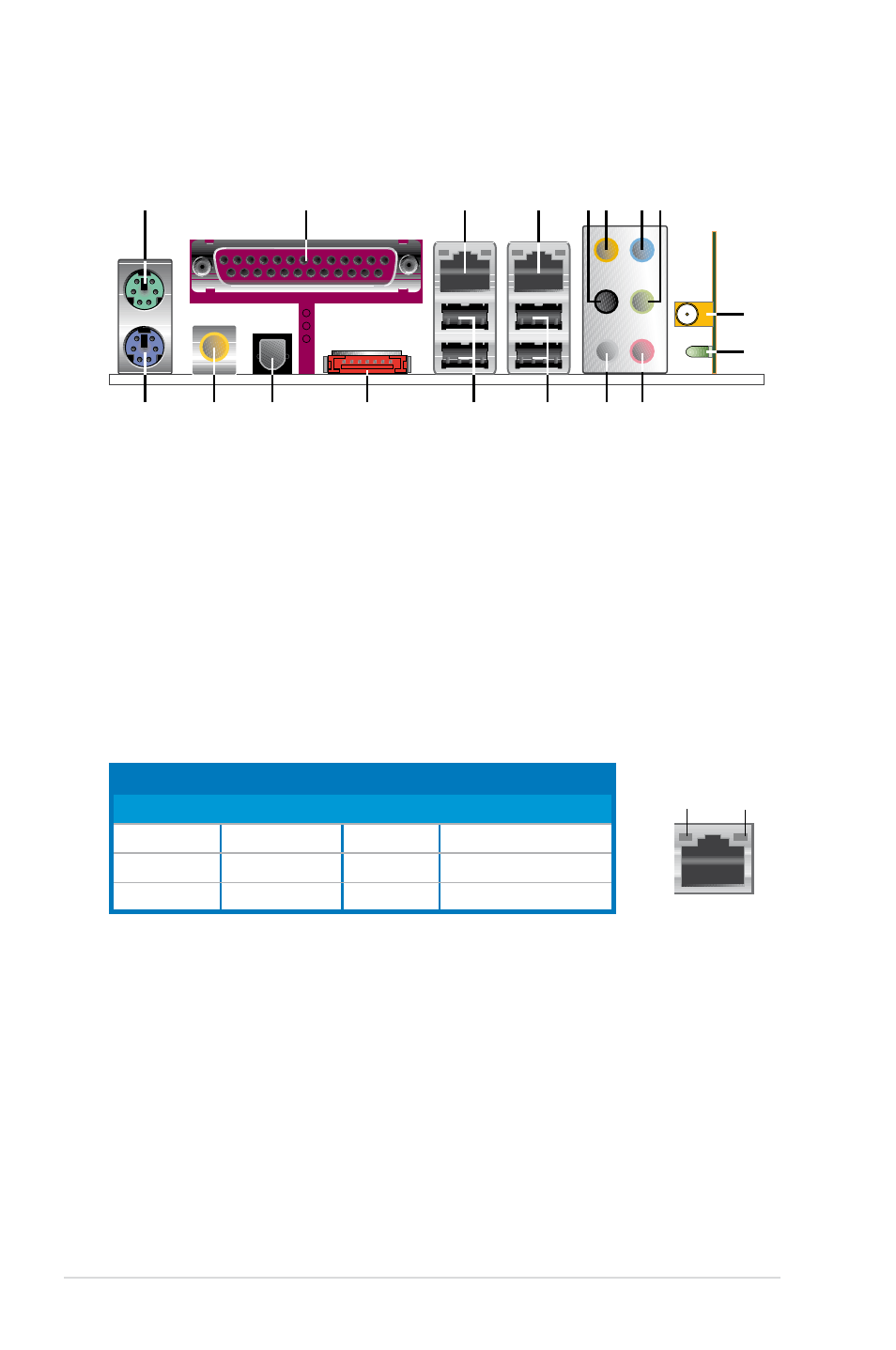

2.7 Connectors
2.7.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN 1 (RJ-45) port. Supported by Marvell ® 88E1116 Gigabit LAN controller,
this port allows Gigabit connection to a Local Area Network (LAN) through a
network hub. Refer to the table below for the LAN port LED indications.
4. LAN 2 (RJ-45) port. Supported by the Marvell ® 88E1116 Gigabit LAN
controller, this port allows Gigabit connection to a Local Area Network
(LAN) through a network hub. Refer to the table below for the LAN port LED
indications.
5. Rear Speaker Out port (black). This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio configuration.
6. Center/Subwoofer port (orange). This port connects the center/subwoofer
speakers.
7. Line In port (light blue). This port connects the tape, CD, DVD player, or
other audio sources.
8. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel configuration, the function of this port
becomes Front Speaker Out.
Activity/Link Speed LED
Status
Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
