2-26 Chapter 2: Hardware information
Connect the right-angle side of SATA
signal cable to the SATA device, or
connect the right-angle side of the
SATA cable to the onboard SATA port
to avoid mechanical conflict with huge
graphics cards.
Right-angle side
3. Serial ATA connectors (7-pin SATA1-6)
These connectors are for the Serial ATA signal cables for Serial ATA hard disk
drives.
If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID
1, RAID 0+1, RAID 5, or JBOD configuration with the onboard NVIDIA ®
MediaShield™ RAID controller.
The RAID function of these connectors is set to [Disabled] by default. If you
intend to create a Serial ATA RAID set using these connectors, enable the RAID
Enabled item under the Serial-ATA Configuration sub-menu in the BIOS. See
section “4.4.6 Onboard Device Configuration” for details.
These connectors support Native Command Queuing (NCQ), Power
Management (PM) Implementation Algorithm, Hot Swap and smart setup.
P
5 N
T
W
S ®

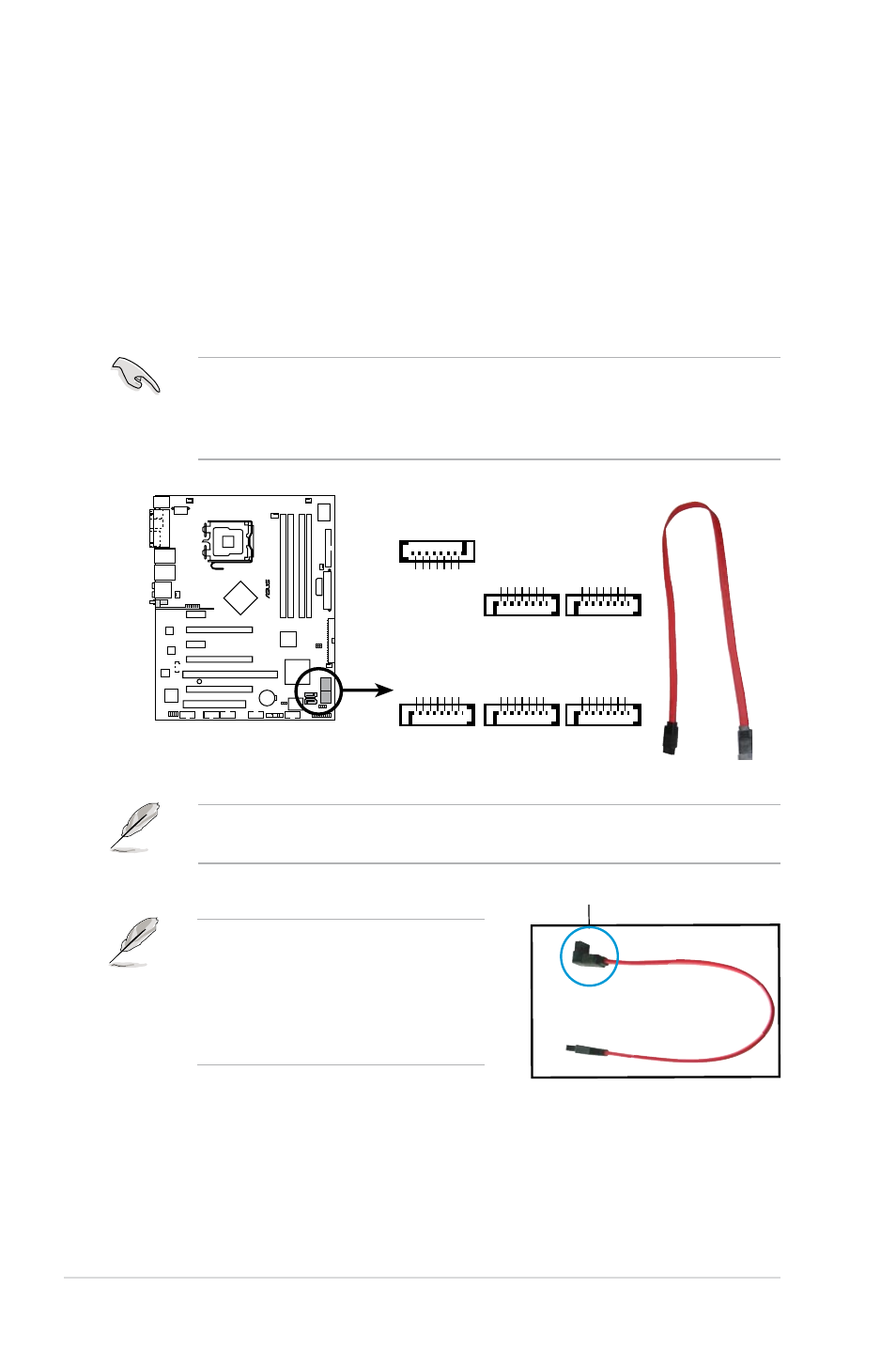

P5NT WS SATA connectors
