ASUS M2N-VM SE 1-27
1.10.2. Internal.connectors

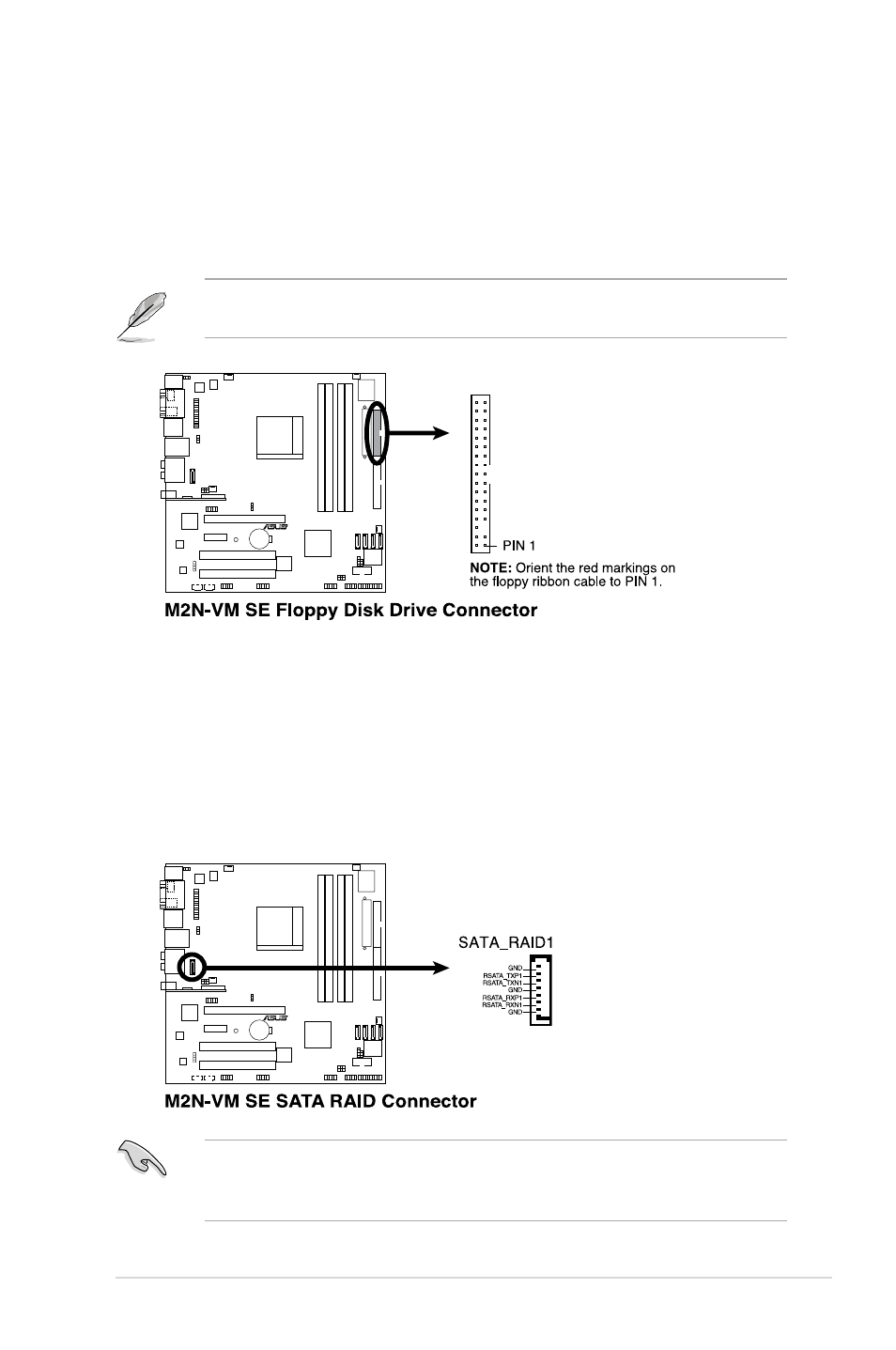

1.. Floppy.disk.drive.connector.(34-1.pin.FLOPPY)
This connector is for the provided floppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the floppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using an FDD cable with a covered Pin 5.
R
FLOPPY
M2N-VM SE
2.. JMicron ® . . JMB363 . Serial.ATA.connector.(7-pin.SATA_RAID1.[black])
This connector is for a Serial ATA signal cable for a Serial ATA hard disk drive
that you can combine with an external Serial ATA 3.0 Gb/s device to configure
a RAID 0, and RAID 1 set through the onboard Jmicron ® JMB363 SATA RAID
controller. Refer to Chapter 5 for details on how to set up Serial ATA RAID
configurations.
The JMicron ® RAID Controller item in the BIOS is set to [IDE] by default. Set
to [Raid] to use the connector to build a RAID set. See section “2.4.5 Onboard
Devices Configuration” for details.
R
M2N-VM SE
