2-24 Chapter 2: Hardware information
Chapter 2

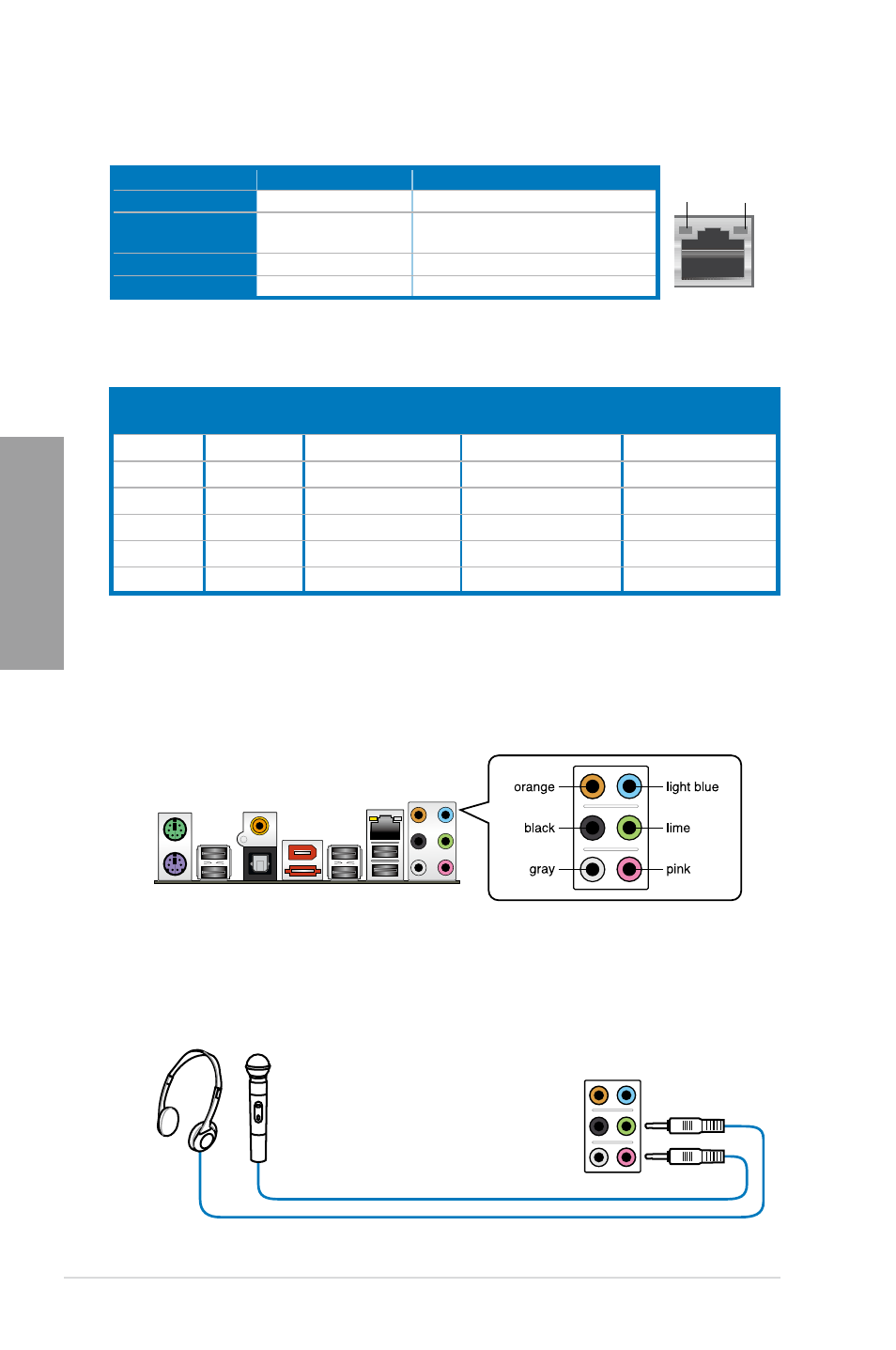

2.8.2 Audio I/O connections
Audio I/O ports
Connect to Headphone and Mic
Audio 2, 4, 6, or 8-channel configuration***
Port Headset
2-channel
4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
Gray – – – Side Speaker Out
LAN port LED indications**
Right
LED
Left
LED
LAN port
Status Left LED Right LED
OFF OFF OFF
10 Mbps connection
Orange (blinking during
data activity)
OFF
100 Mbps connection OFF Orange (blinking during data activity)
1 Gbps connection OFF Green (blinking during data activity)
