2.2.3

Placement direction

When installing the motherboard, make sure that you place it into the chassis in the

correct orientation. The edge with external ports goes to the rear part of the chassis

as indicated in the image below.

2.2.4

Screw holes

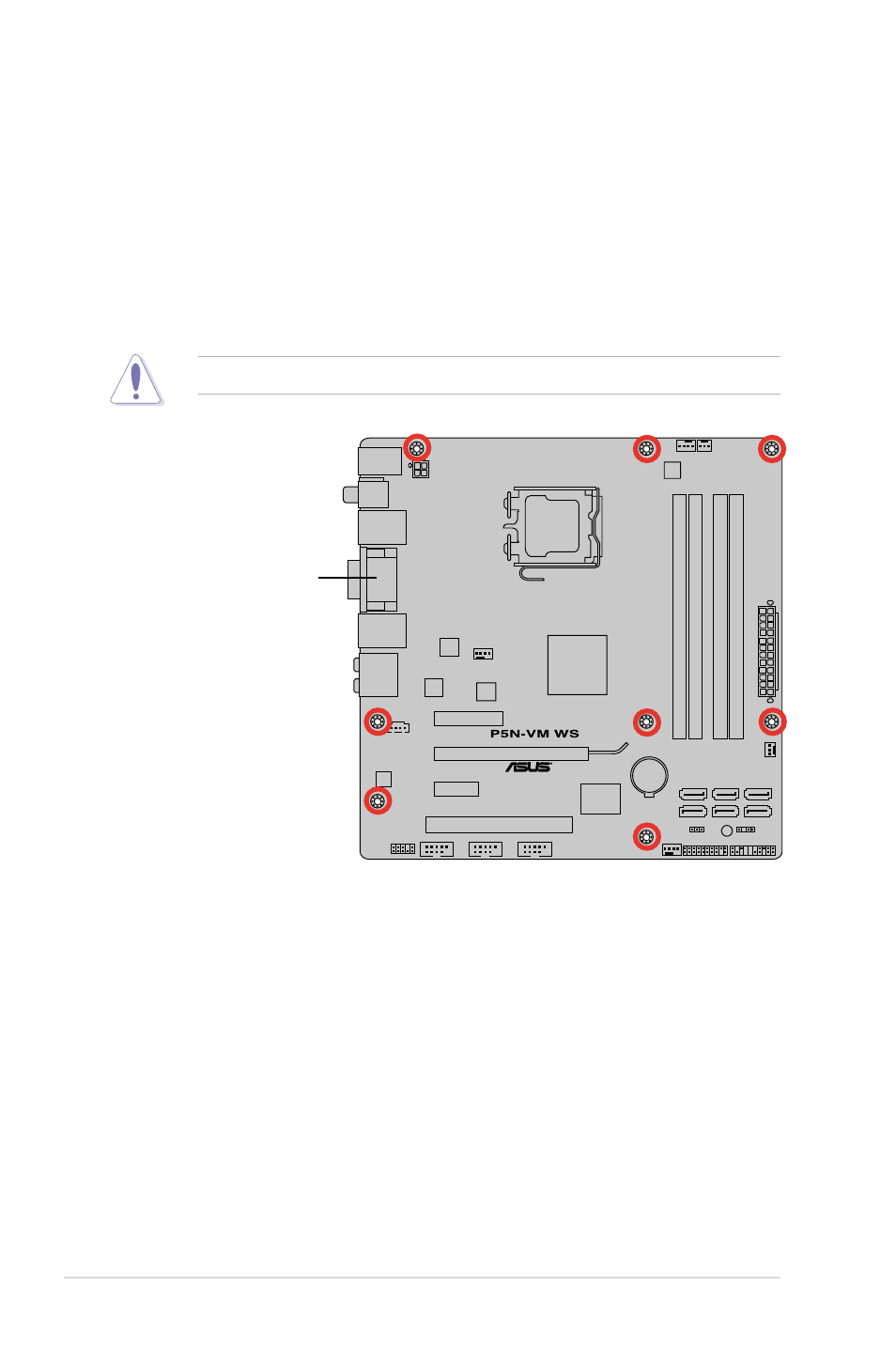

Place eight (8) screws into the holes indicated by circles to secure the motherboard

to the chassis.

Do not overtighten the screws! Doing so can damage the motherboard.

Place this side towards

the rear of the chassis

2-4

Chapter 2: Hardware information
