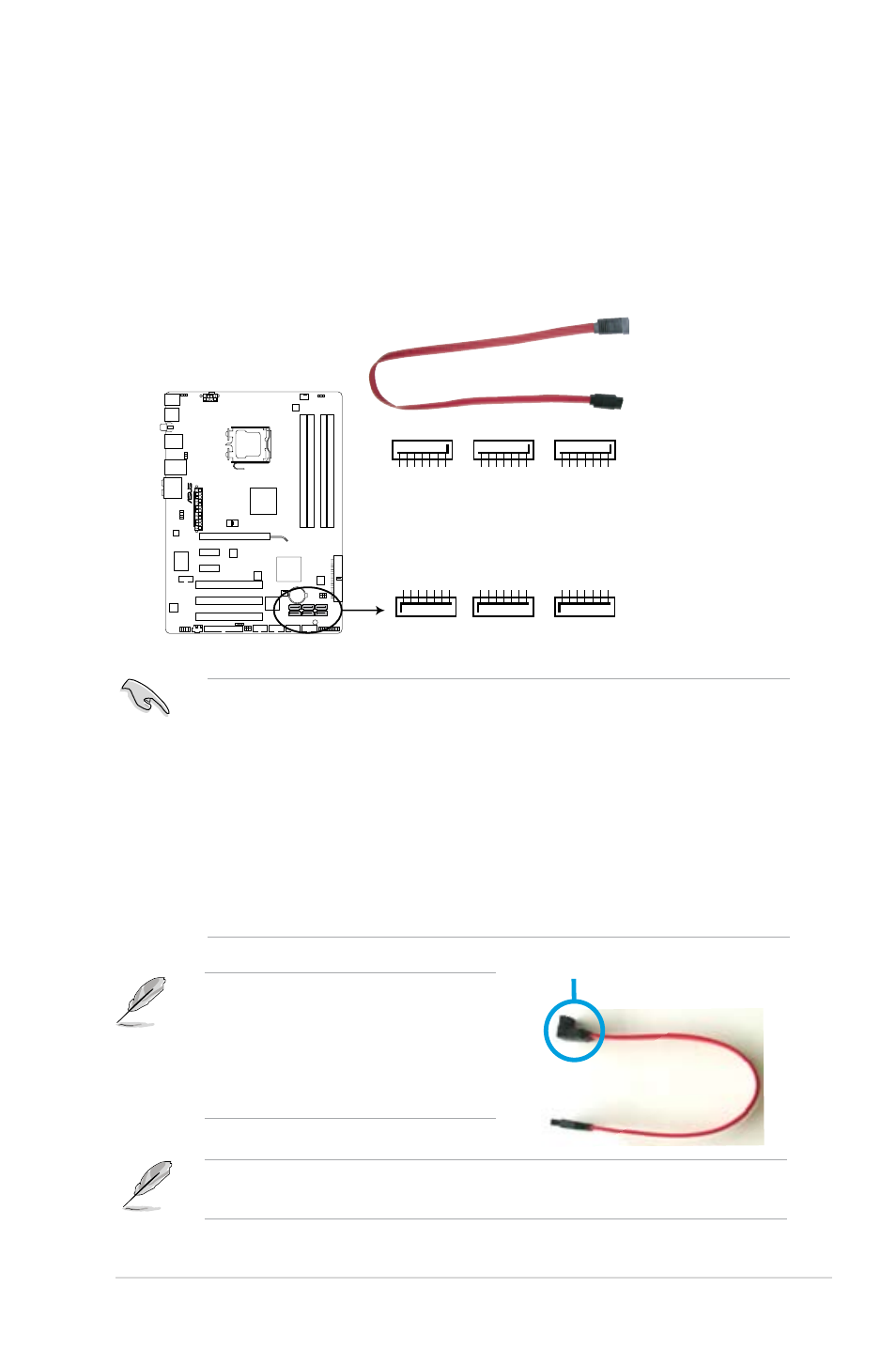

3. ICH10R Serial ATA connectors (7-pin SATA1-6)
These connectors are for the Serial ATA signal cables for Serial ATA hard disk
drives.
If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID
1, RAID 5, RAID 10 configuration with the Intel ® Matrix Storage Technology
through the onboard Intel ® ICH10R RAID controller.
• You must install the Windows ® XP Service Pack 1 before using Serial
ATA hard disk drives. The Serial ATA RAID feature (RAID 0/RAID 1/RAID
5/RAID 10) is available only if you are using Windows ® XP or later version.
• These connectors are set to Standard IDE mode by default. In Standard
IDE mode, you can connect Serial ATA boot/data hard disk drives to these
connectors. If you intend to create a Serial ATA RAID set using these
connectors, set the Configure SATA as item in the BIOS to [RAID]. See
section 4.3.6 Storage Configuration for details.s
• Before creating a RAID set, refer to 5.4.3 Intel ® RAID configurations or
the manual bundled in the motherboard support DVD.
Connect the right-angle side of SATA
signal cable to SATA device. Or you
may connect the right-angle side of
SATA cable to the onboard SATA port
to avoid mechanical conflict with huge
graphics cards.
right angle side
P5QL-E
P5QL-E SATA connectors
GN
D
RSATA_TXP5 RSATA_TXN5
GN
D
RSATA_RXP5 RSATA_RXN
5
GN
D
SATA5
GN
D
RSATA_TXP4 RSATA_TXN4
GN
D
RSATA_RXP4 RSATA_RXN
4
GN
D
SATA3
SATA4
GN
D
RSATA_RXN3 RSATA_RXP3 GN
D
RSATA_TXN3 RSATA_TXP3 GN
D
SATA6
GN
D
RSATA_RXN6 RSATA_RXP6 GN
D
RSATA_TXN6 RSATA_TXP6 GN
D
GN
D
RSATA_TXP2 RSATA_TXN2
GN
D
RSATA_RXP2 RSATA_RXN
2
GN
D
SATA1
SATA2
GN
D
RSATA_RXN1 RSATA_RXP1 GN
D
RSATA_TXN1 RSATA_TXP1 GN
D
When using hot-plug and NCQ, set the configure SATA as in the BIOS to
[AHCI].
