ASUS P5GC-VM

1-33

11. Chassis intrusion connector (4-1 pin CHASSIS)

This connector is for a chassis-mounted intrusion detection sensor or switch.

Connect one end of the chassis intrusion sensor or switch cable to this

connector. The chassis intrusion sensor or switch sends a high-level signal to

this connector when a chassis component is removed or replaced. The signal

is then generated as a chassis intrusion event.
By default, the pins labeled “Chassis Signal” and “Ground” are shorted with

a jumper cap. Remove the jumper caps only when you intend to use the

chassis intrusion detection feature.

10. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that

supports either HD Audio or legacy AC’97 audio standard.

• We recommend that you connect a high-definition front panel audio

module to this connector to avail of the motherboard’s high-definition audio

capability.

• By default, this connector is set to AC97 Audio. If you want to connect a

High Definition front panel audio module to this connector, set the Front

Panel Support Type item in the BIOS to [HD Audio]. See section “2.4.4

Onboard Devices Configuration” for details.

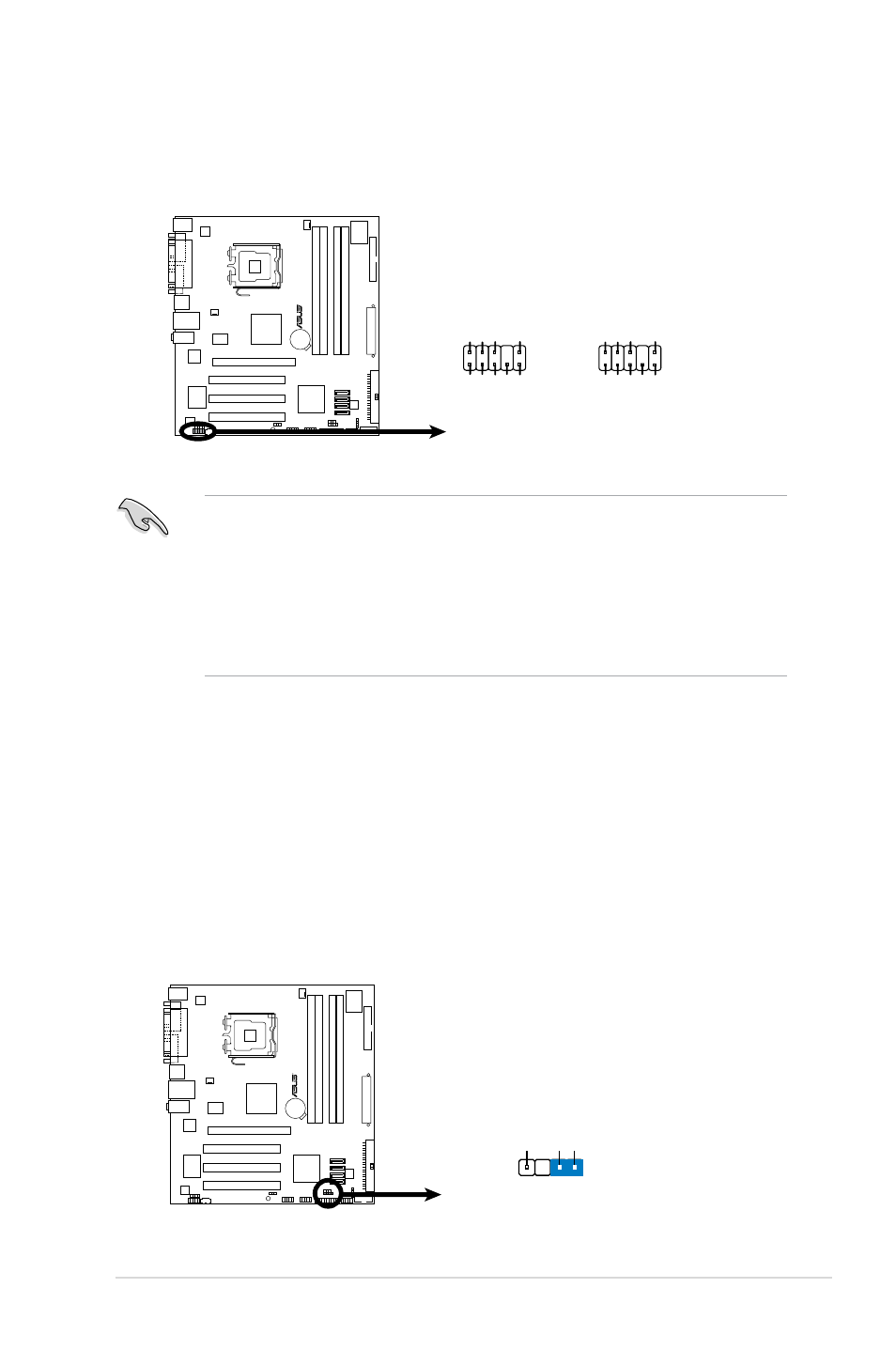

P5GC-VM

R

P5GC-VM Front Panel Audio Connector

HP_HD

MIC2_

L

HP_R

HP_

L

MIC2_JD

Jack_Sense

MIC2_R

PRESENSE#

AGND

AAFP

Legacy AC’97-compliant

pin definition

NC

MIC2_L

Line out_R

Line out_L

NC

NC

MIC2_R

NC

AGND

Azalia-compliant

pin definition

P5GC-VM

R

P5GC-VM Intrusion Connector

CHASSIS

+5VSB_MB

Chassis Signal GND

(Default)
