1-32

Chapter 1: Product introduction

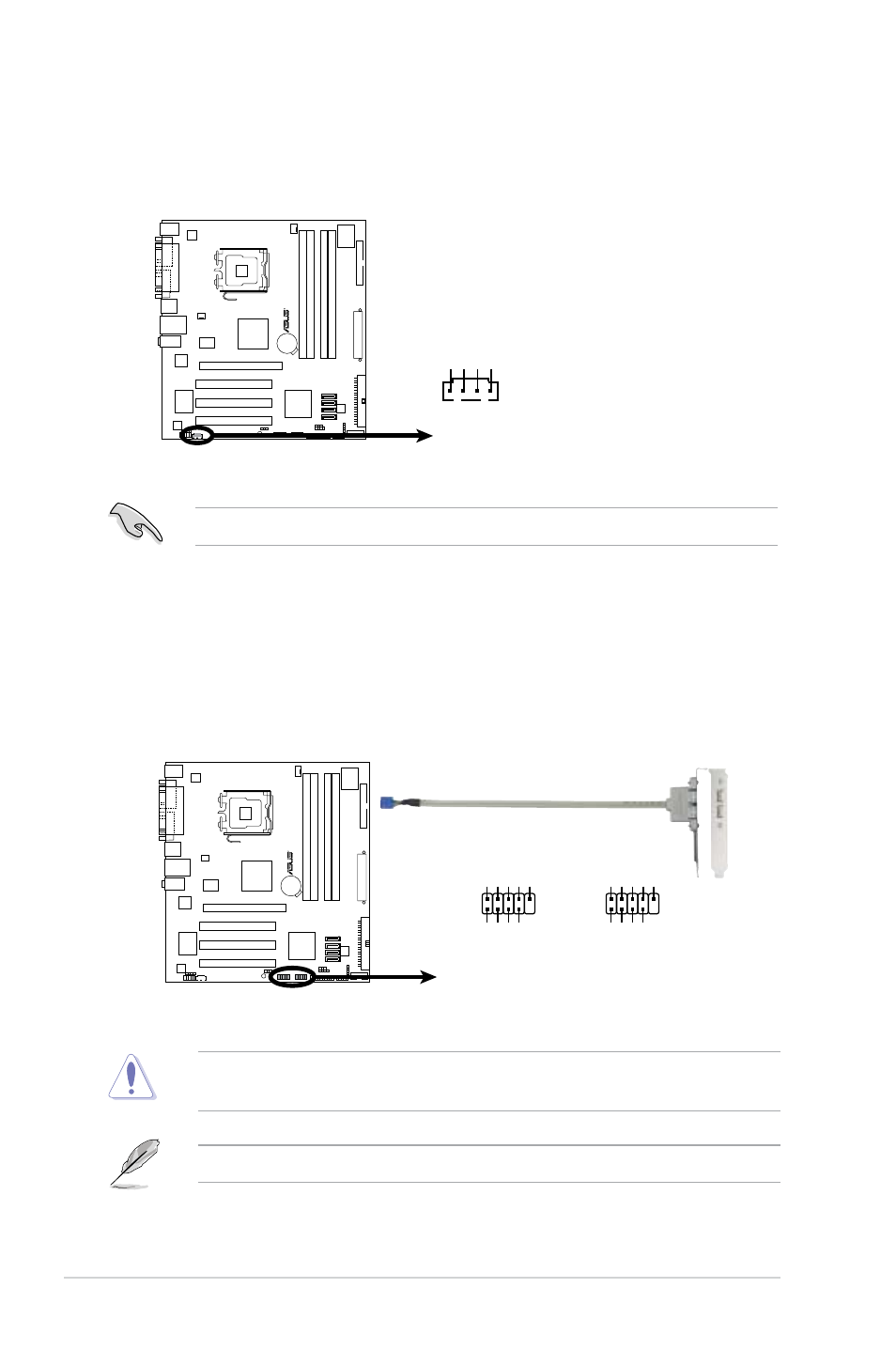

8. Optical drive audio connector (4-pin CD)

This connector allows you to receive stereo audio input from sound sources

such as a CD-ROM, TV tuner, or MPEG card.

Enable the CD-IN function in the audio utility when using this connector.

9. USB connectors (10-1 pin USB56, USB78)

These connectors are for USB 2.0 ports. Connect the USB module cable

to any of these connectors, then install the module to a slot opening at the

back of the system chassis. These USB connectors comply with USB 2.0

specification that supports up to 480 Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the

motherboard!

The USB module is purchased separately.

P5GC-VM

R

P5GC-VM Internal Audio Connector

CD

(black)

Right

A

udio Channel

Left

Audio Channel

Ground

Ground

P5GC-VM

R

P5GC-VM USB 2.0 Connectors

USB78

USB+5V USB_P8- USB_P8+ GND NC

USB+5V USB_P7- USB_P7+

GND

1

USB56

USB+5V USB_P6- USB_P6+ GND NC

USB+5V USB_P5- USB_P5+

GND

1
