1-26

Chapter 1: Product introduction

SPEED

LED

ACT/LINK

LED

LAN port

LAN port LED indications

ACT/LINK LED

SPEED LED

Status

Description

Status

Description

OFF

No link

OFF

10 Mbps connection

ORANGE

Linked

ORANGE 100 Mbps connection

BLINKING Data activity

GREEN

1 Gbps connection

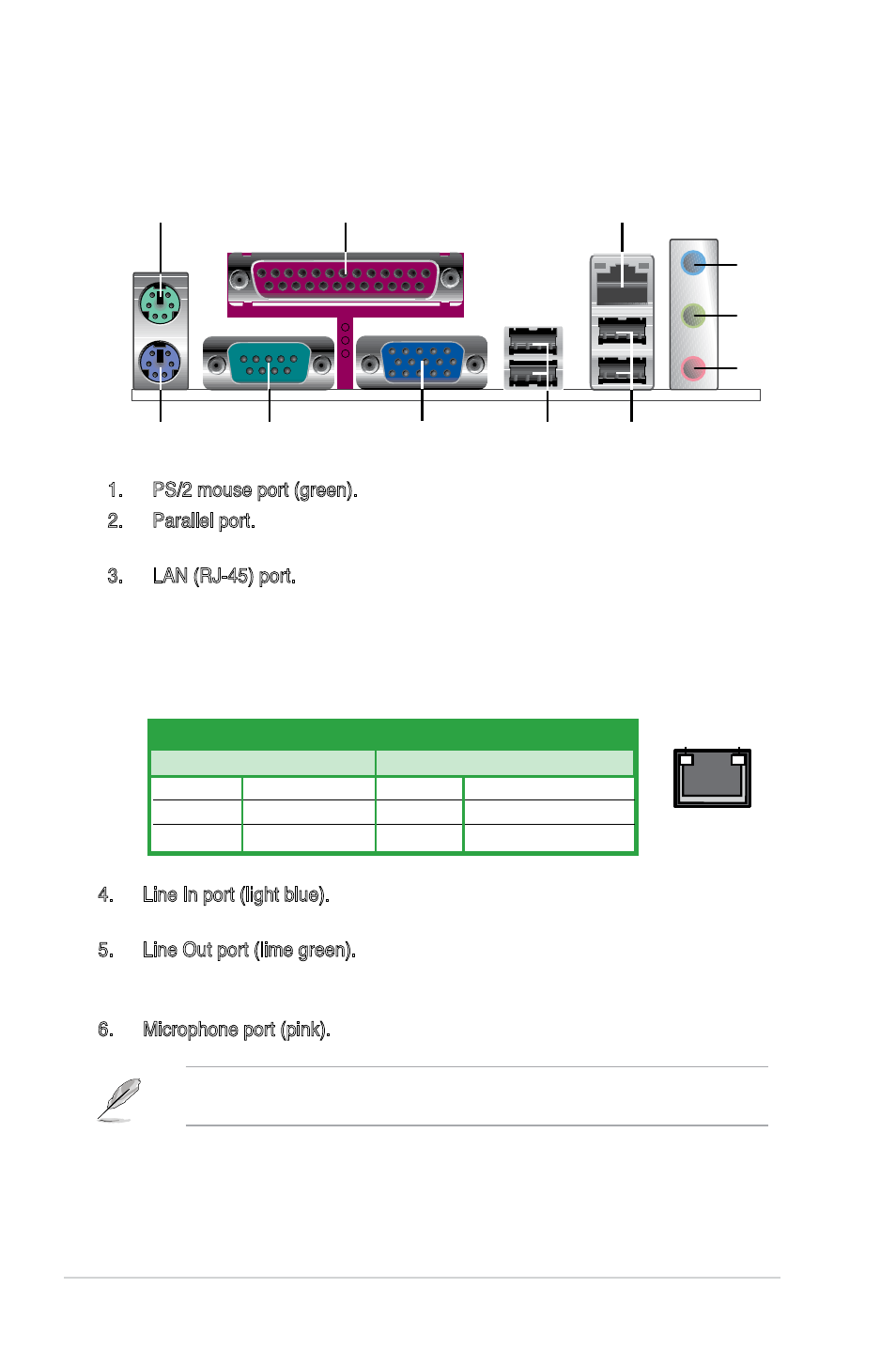

1.10 Connectors

1.10.1 Rear panel connectors

Refer to the audio configuration table on the next page for the function of the

audio ports in 2, 4, or 6-channel configuration.

1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other

devices.

3. LAN (RJ-45) port. Supported by Marvell Gigabit LAN controller, this port

allows Gigabit connection to a Local Area Network (LAN) through a network

hub. Refer to the table below for the LAN port LED indications.

4. Line In port (light blue). This port connects the tape, CD, DVD player, or other

audio sources.

5. Line Out port (lime green). This port connects a headphone or a speaker. In

4-channel, and 6-channel configuration, the function of this port becomes

Front Speaker Out.

6. Microphone port (pink). This port connects a microphone.

1

11

4

5

6

7

2

3

8

10

9
