Page 46: 34 chapter 1: product introduction

background image

1-34

Chapter 1: Product introduction

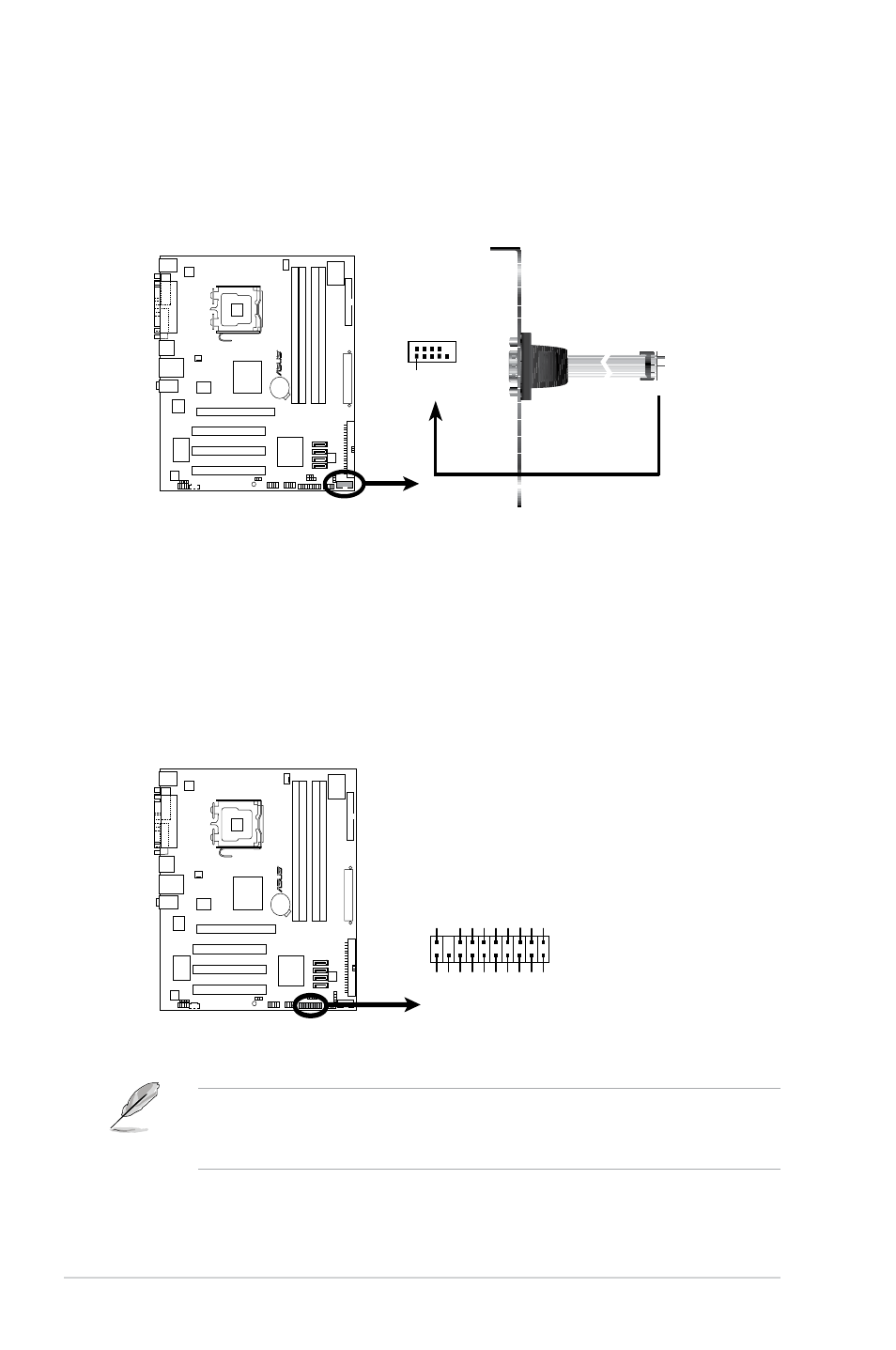

12. Serial port connector (10-1 pin COM2)

This connector is for a serial (COM) port. Connect the serial port module

cable to this connector, then install the module to a slot opening at the back

of the system chassis.

P5GC-VM

R

P5GC-VM COM Port Connector

PIN1

COM2

13. TPM connector (20-1 pin TPM) [Optional]

This connector supports a Trusted Platform Module (TPM) system, which

can securely store keys, digital certificates, passwords, and data. A TPM

system also helps enhance network security, protects digital identities, and

ensures platform integrity.

P5GC-VM

R

P5GC-VM TPM Connector

TPM

3.3V AD0

PWRDW#

AD1

AD2

SERIRQ# CLKRUN#

NC

GND

PCICLK FRAME#

NC

PCIRST#

AD3

GND

3.3VSB

GND

NC

NC

• This motherboard only supports Sinosun TPM.

• The COM model and the TPM model are purchased separately!
