LOW PHASE NOISE, SPACE LEVEL OCXO
3.3 to 15Vdc - 1MHz to 125MHz
Q-TECH
CORPORATION
QPDS-0008 (Revision B, April 2013 ) (ECO# 10835)
.275
VCC
CASE IS WELDED TO .060 PLATE
BRAZE BASEPLATE TO CASE AROUND
ENTIRE PERIMETER PRIOR TO PLATING
OUT
GND
.060 1.490
1.560
1.550
1.000
.500
1.500
1.000
.500
2.560
2.555
4X .125±.003 THRU
2.290
.135
1.750
.250

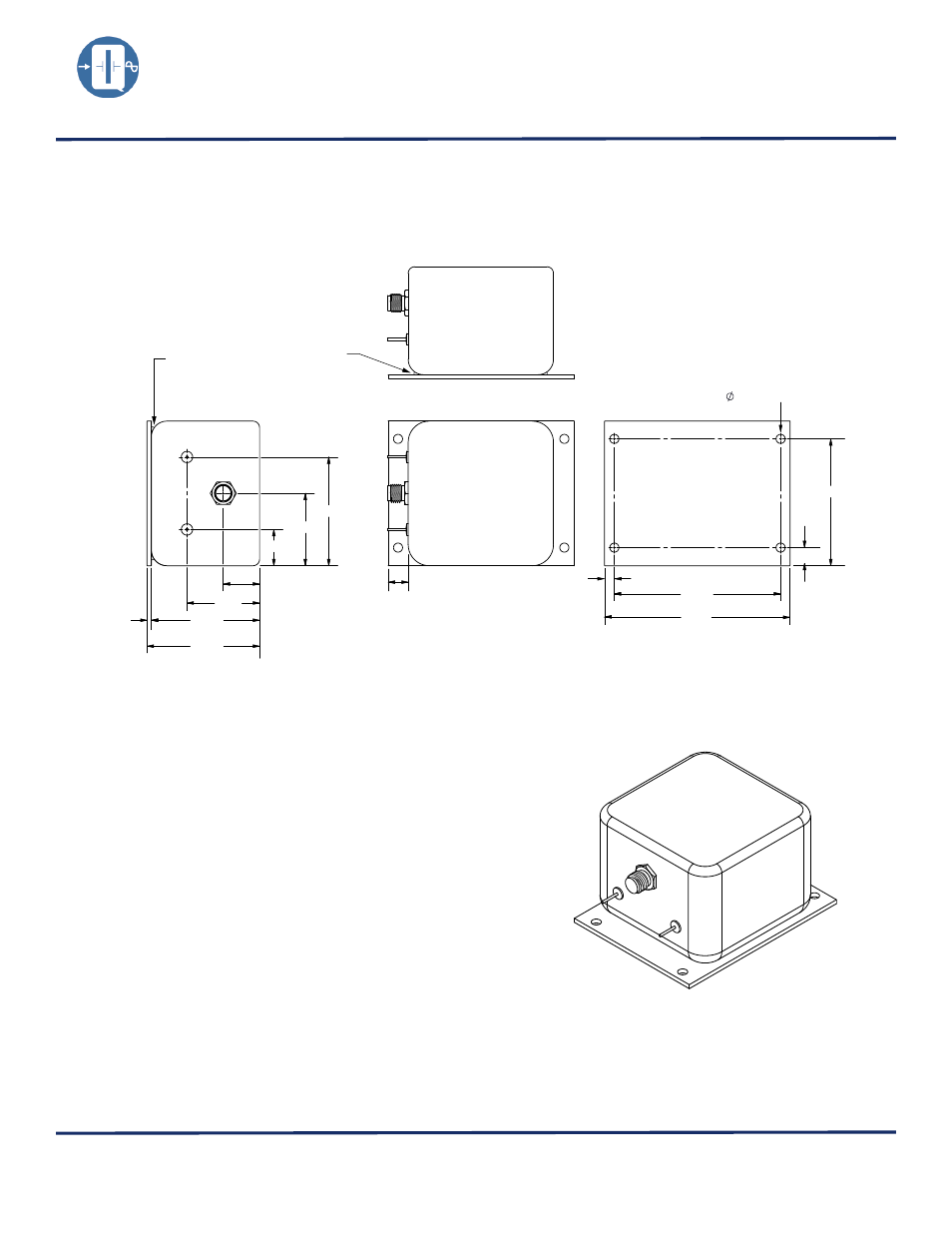

Dimensions are in inches Package Outline -
Package Information
• Package Material: CRS
• Weight: 165g typ., 175g max.
• Package Finish: Nickel Plating 500 micro Inches
• SMA Connector: Body = Brass (QQ-B-626), Nickel Plated
Contact Pin = BeCu, Gold Plated
Insulators = Teflon, MIL-P-19468
• Power Connetors: Gold Plated per MIL-G-45204C, Class 00
