AMSC N/A

FSC 5955

INCH-POUND
MIL-PRF-55310/20F
28 August 2012
SUPERSEDING
MIL-PRF-55310/20E
24 February 2005

PERFORMANCE SPECIFICATION SHEET

OSCILLATOR, CRYSTAL CONTROLLED, TYPE 1 (CRYSTAL OSCILLATOR (XO)),

40.0 kHz THROUGH 60.0 MHz, HERMETIC SEAL, SQUARE WAVE, TTL

This specification is approved for use by all Departments
and Agencies of the Department of Defense.

The requirements for acquiring the product described herein
shall consist of this specification sheet and

MIL-PRF-55310

.























NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm) for three place decimals and ±.02 (0.5 mm) for two

place decimals.

4. All pads with NC function may be connected internally and are not to be used as external tie points or

connectors.

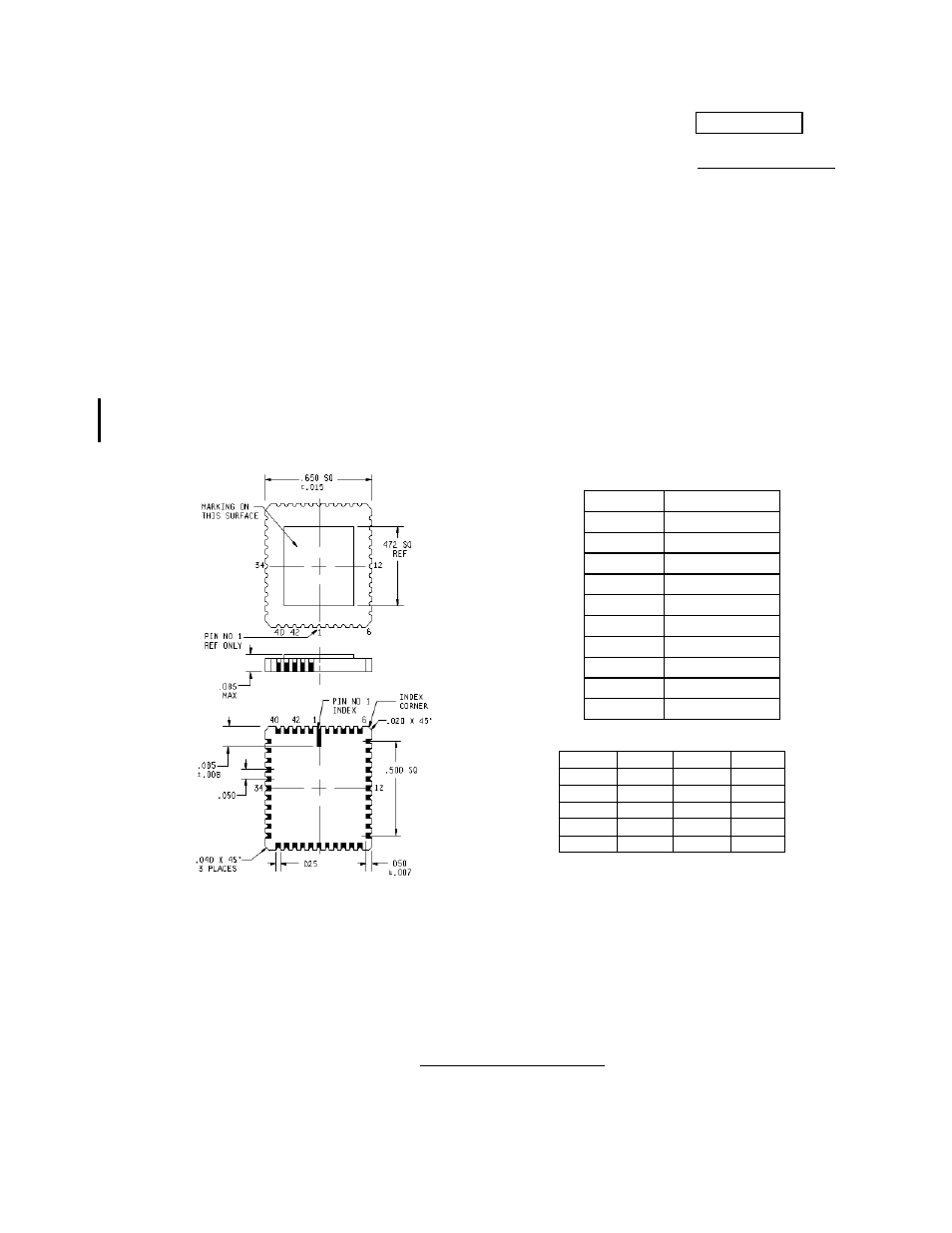

FIGURE 1. Dimensions and configuration.

Pin number

Function

1-5

NC

6

B+

7-11

NC

12

B+

13-33

NC

34

GND

35-39

NC

40

GND

41

NC

42

OUTPUT

Inches mm

Inches

mm

.007

0.18

.085

2.16

.008

0.20

.472

11.99

.015

0.38

.500

12.70

.025

0.64

.650

16.51

.050

1.27
