Installing the ORION O-3050

17

2.3

INSTALLING THE SCANNER ON A COUNTER SURFACE

To install the scanner without the flexible scanner stand, follow the instructions
below.

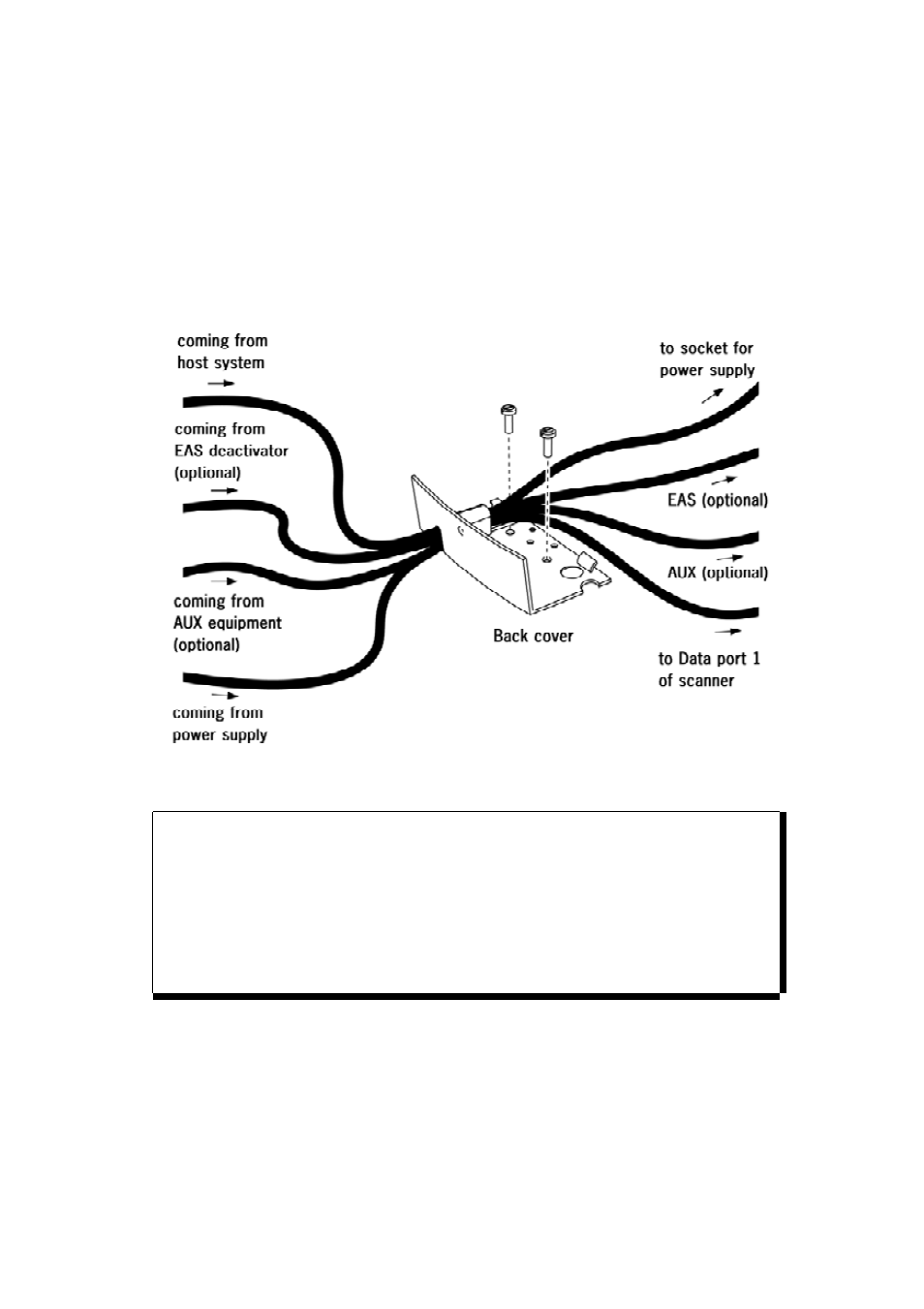

1. Remove the two rubber feet from the back cover. Lead the communication

cable and power supply cable through the slit. Fasten the back cover to the
surface with two screws as illustrated in the figure.

NOTE
ƒ You can use the back cover as a template to mark the places

for the mounting holes at the counter surface and drill two
holes.

ƒ If you do not want to drill holes in the counter top, the scanner

can be installed without fixing it to the surface. In this case the
rubber feet will prevent the scanner from sliding.

2. Position the scanner as indicated in the figure below and rotate the scanner

around the cover. Make sure that connectors and cables are placed as
indicated in the figures, to allow easy attachment of the scanner to the back
cover. Press the scanner until a "click" is heard.
