DODGE ‘94 to ‘01 1500 / ‘94 to ‘02 2500/3500 (FULL SIZE, SHORT AND LONG BOX)
CAUTION!
Read pages 2-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
IMPORTANT NOTES FOR THIS INSTALLATION:

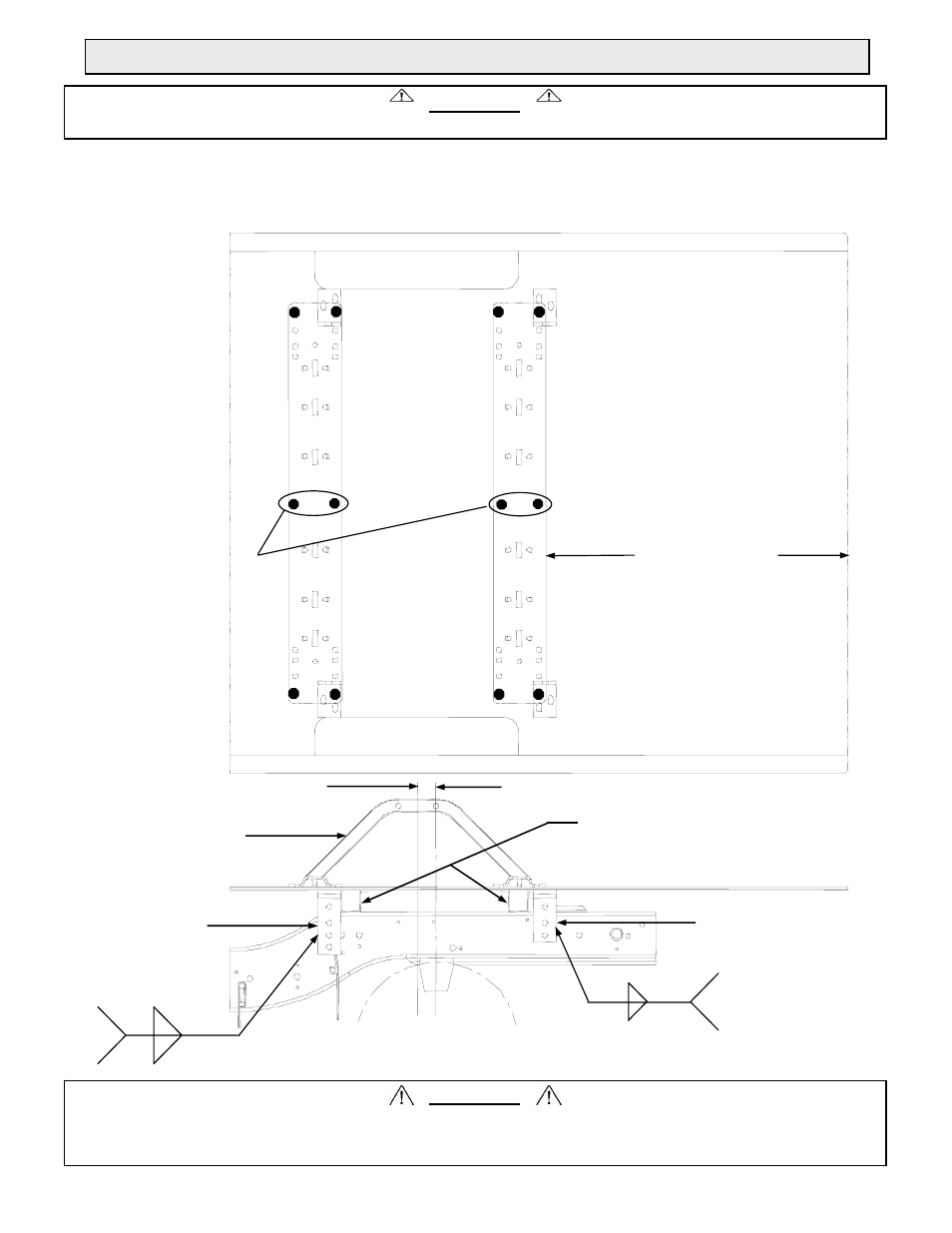

1. It is very important that brackets in Row 2 are against forward side of bed sill as shown below. Due to
dimensional instability in bed sill placement with the Dodge truck, interference could result when drilling in Rows 3
or 4. May need to move base rail location +/- 1/2” to ensure frame brackets do not interfere with bed sills.
32 7/16” Long Box
28 7/16” Short Box
Side Bracket
Axle Center
Front
of
Vehicle
Rear Edge of
Truck Bed
1/4 1.5-3
1/4 2
*
1/4 2
1/4 2
*
*
Optional weld
pattern
Drivers side Ram 1500 Shown
Measure from Rear Edge of truck
bed to rear edge of base rail.
Long bracket Short bracket
ROW 1 ROW 2 ROW 3 ROW 4
King Pin Center approx. 2”
forward of Axle Center
Bed Sill
Each base rail must have a
bolt in either of the marked
center holes. Check for
obstructions before drilling.
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
Cequent Towing Products does its best to communicate tow vehicle manufacturer changes; however, it is ultimately the
responsibility of the installer to prevent damage due to installation.
