Q-Slot 2 Bike Rack
CRADLE STRAP
FIGURE 10
Bicycle Loading (continued):
5.

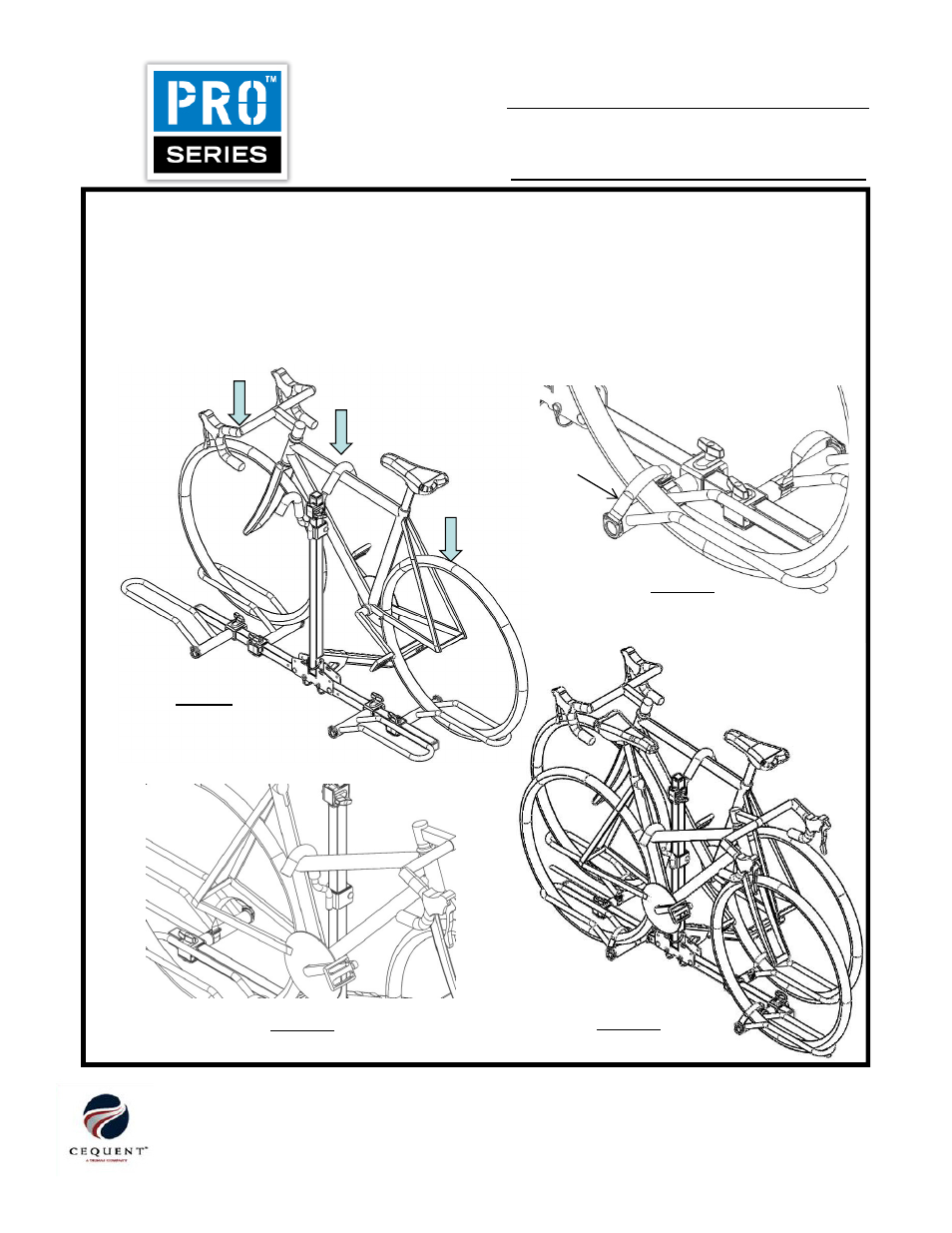

Loop Wheel Cradle straps over wheels and secure (Fig 10)
WARNING – Failure to use wheel cradle straps may result in bike falling off rack during use.
6.
Load second bicycle as describe in steps 2 thru 5. Reverse direction of second bicycle to prevent
handle bar interference. (Fig 12)
7.
Bicycles with inclined frames (angled cross tube i.e. women's bicycles), position frame hook at the
intersection of the vertical tube and inclined tube to prevent slippage during use. (Fig 11)
ITEM
DESCRIPTION
Cequent Performance Products
Plymouth, MI 48170
Technical Service: (888) 521-0510
Page 3 of 12
FIGURE 9
FIGURE 11
FIGURE 12
63134N Rev C 4-10-12
Printed in China
