Q-Slot 2 Bike Rack

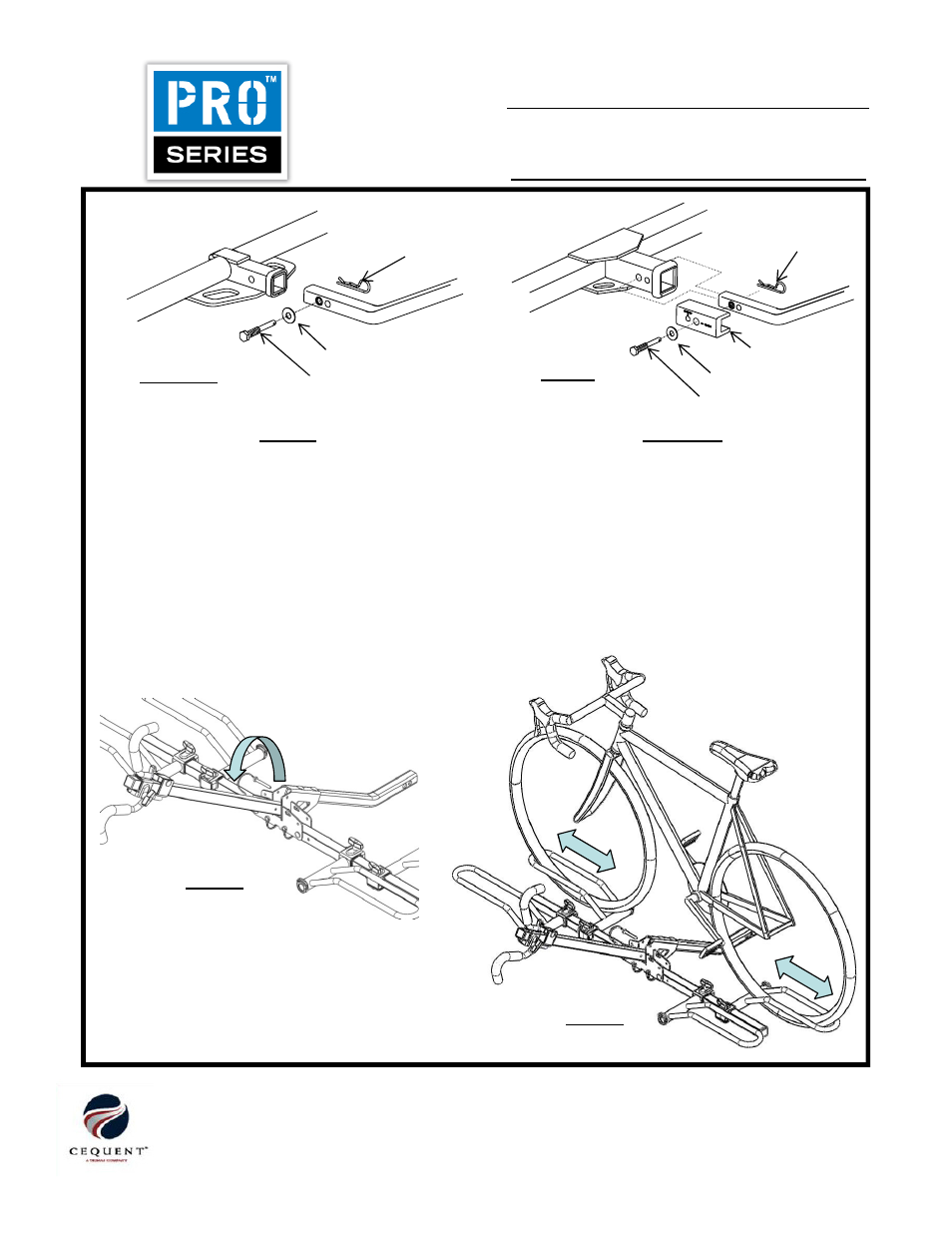

Bicycle Loading:
1. Load inner bicycle first. Pull bail pin and rotate center tube down as illustrated. (Fig 7)
2. Load bicycle into Wheel Cradles. Adjust cradles to appropriate position. Ensure tire is well supported
at both ends of Wheel Cradles. Tighten cradles to prevent movement. (Fig 8)
3. Rotate center tube to vertical position and lock with bail pin. Lower Frame Hook assembly down over
bicycle frame as illustrated. (Fig 9)
FIGURE 4
Install 1/2” Anti-Rattle Pin, Flat Washer and Clip for 1-/4” hitch.
FIGURE 5 & 6
. Install 1/2” Anti-Rattle Pin, Flat Washer, Receiver
Adapter and Clip for 2” hitch.
Receiver Adapter
ITEM
DESCRIPTION
1/2” Flat Washer
1/2” Anti-Rattle Pin
Clip
Clip
1/2” Flat Washer
1/2” Anti-Rattle Pin
2” Hitch 1-1/4” Hitch
Cequent Performance Products
Plymouth, MI 48170
Technical Service: (888) 521-0510
Page 2 of 12
bicycle frame as illustrated. (Fig 9)
4. Apply downward pressure to bicycle and Frame Hook assembly. Tighten Frame Hook assembly and
ensure there is no movement of bicycle.
FIGURE 7
FIGURE 8
